Mercedes A1609971482 - Шланг

SMART ROADSTER-COUPE BRABUS 452.337

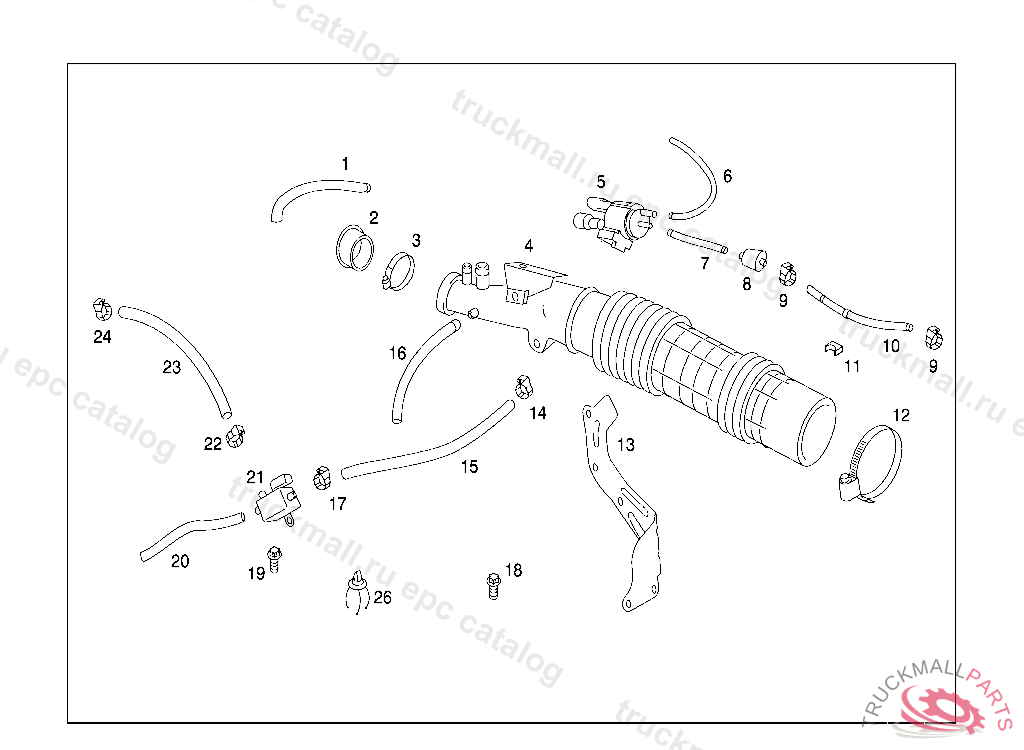

52 CHASSIS SHEET METAL / AIR INTAKE - 130 AIR INTAKE

Поз.
Артикул
Описание
2
Q0003017V004000000
SEAL AIR LINE
3
Q0011684V000000000
SCREW CLIP 36-46
4
Q0019609V001000000
AIR LINE
5
Q0008021V001000000
ELECTRIC SWITCHING VALVE
7
Q0007945V002000000
HOSE INTAKE LINE - NON-RE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20200101, Replaced By: Q0007945V003000000
7
Q0007945V003000000
HOSE INTAKE LINE - NON-RE
8
A0021408460
VALVE
8
Q0007918V001000000
CHECK VALVE
9
Q0001907V000L02600
CLIP CLIC 55-80
10
Q0008825V002000000
HOSE - NON-RETURN VALVE E , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20200101, Replaced By: Q0008825V003000000
10
Q0008825V003000000
HOSE - NON-RETURN VALVE E , Replaced By: A1609971482
10
A1609971482
HOSE
11
Q0008269V001000000
CLIP VACUUM PIPE
12
Q0001716V000000000
SCREW CLIP 36-46 , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. H 41268720011129, Replaced By: Q0011684V000000000
13
Q0012685V001000000
HOLDER AIR LINE AIR FILTE , H 51850720020325
18
Q0006040V000000000
SCREW DUOTAPTITE M6 X 53
19
Q0002475V000000000
COLLAR SCREWTORX M6 X 12 L - 8.8
21
Q0003113V005000000
CYCLE VALVE WASTE GATE
22
Q0001907V000L02700
CLIP CLIC 55-80
24
Q0001907V000L02600
CLIP CLIC 55-80
26
Q0012684V001000000
LINE HOLDER
