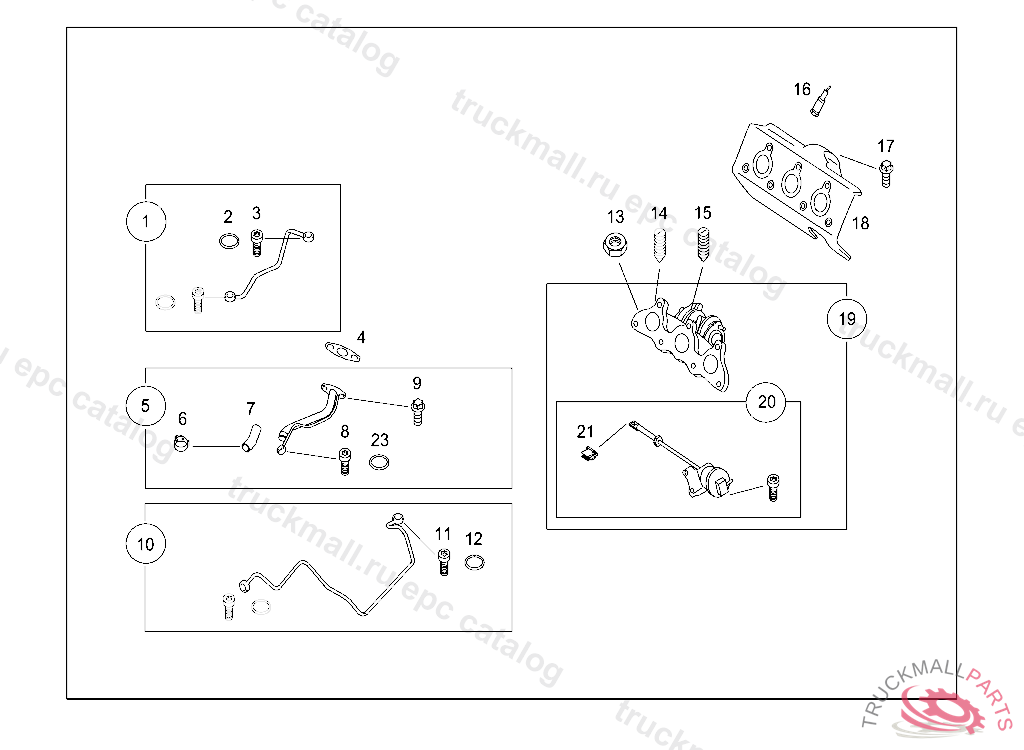

Поз.
Артикул
Описание
2
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
3
SCREW HOLLOW M8 X 1 A 4/5
4
SEAL OIL SUPPLY PIPE
5
OIL SUPPLY PIPE
6
LOOM TIE19/9MM
7
CONNECTOR
8
SCREW HOLLOW M8 X 1 A 4/5
9
COLLAR SCREWTORX M6 X 12 L - 8.8
10
COOLANT PIPE WATER PUMP TO TURBOCHARGER
11
SCREW HOLLOW M8 X 1 A 4/5
12
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
13
NUT EXHAUST MANIFOLD TO CYLINDER HEAD, F 22053020061130
14
STUDM7 X 44
14
STUDM7 X 52
15
STUD
16
LAMBDA PROBE DAIMLERCHRYSLER PLANT BERLIN
17
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
18
SCREENING PLATE
19
TURBOCHARGER , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
19
EXHAUST GAS TURBOCHARGER , Replaced By: A1600961199
20
DIAPHRAGM POT WASTE GATE
20
BI-PRESSURE CAN 74
21
RETAINING CLIP
23
SEALING RING A 8 - 11.5 C , 19970613, Replaced By: N007603008109
