Mercedes Q0001751V002000000 - Втулка

SMART ROADSTER BRABUS 452.437

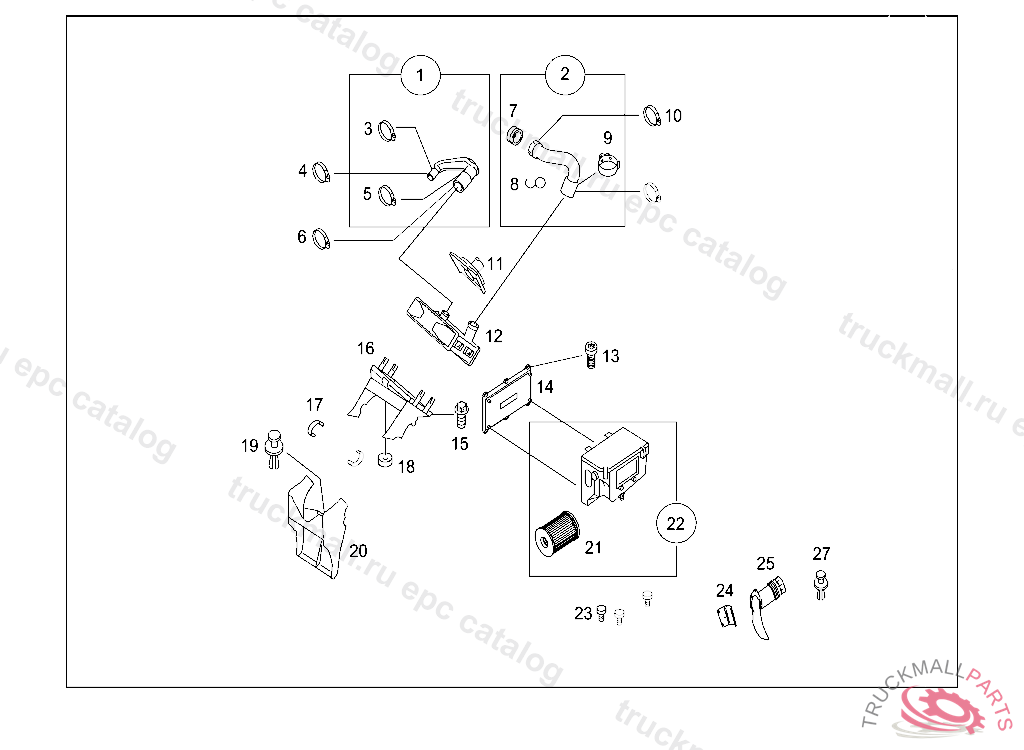

52 CHASSIS SHEET METAL / AIR INTAKE - 160 AIR INTAKE AND AIR FILTER

Поз.
Артикул
Описание
1
Q0003224V006000000
AIR LINE EXHAUST GAS TURB
2
Q0003230V010000000
AIR LINE INTERCOOLER MIXT
3
A0089971490
CLAMP W DRIVE A WASHER FROM AIR INTAKE PIPE TO TURBOCHARGER
3
Q0011682V000000000
CLAMP
4
Q0011682V000000000
CLAMP
4
A0089971490
CLAMP W DRIVE A WASHER FROM AIR INTAKE PIPE TO TURBOCHARGER
5
A0089971790
CLAMP W DRIVE A WASHER CHARGE AIR MANIFOLD, LEFT
5
Q0011683V000000000
CLAMP
6
Q0011683V000000000
CLAMP
6
A0089971790
CLAMP W DRIVE A WASHER CHARGE AIR MANIFOLD, LEFT
7
Q0001489V003000000
SEAL AIR LINE
8
Q0006927V000000000
CLIP
8
A0009955890
CABLE STRAP
9
Q0006928V000000000
CLIP CLIC E465
10
Q0011684V000000000
SCREW CLIP 36-46
11
Q0003127V009000000
ELECTRIC FAN INTERCOOLER , Replaced By: Q0003127V010000000
12
Q0003007V004000000
CHARGE AIR COOLER , Replaced By: Q0003007V005000000
12
Q0003007V005000000
CHARGE AIR COOLER
13
A0019845829
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
14
Q0010020V001000000
ENGINE CONTROL UNIT PETRO
15
Q0001976V000000000
TORX SCREW M6 X 20 - 8.8M6 X 16 DIN 6900 Z4-2
16
Q0000929V003000000
CARRIER CHARGE AIR COOLER
17
Q0001312V001000000
CLIP
18
Q0001311V001000000
GROMMET CARRIER
19
Q0004461V000000000
SPLIT RIVET INTAKE AIR DU
20
Q0009487V002000000
INTAKE AIR DUCT
21
Q0009997V001000000
AIR FILTER CARTRIDGE
22
Q0009996V001000000
AIR FILTER HOUSING
23
Q0001751V002000000
RUBBER MOUNT
24
Q0013123V001000000
INTAKE AIR INTAKE AIR DUC
25
Q0009495V002000000
INTAKE AIR DUCT
27
Q0013782V000000000
EXPANSION RIVET
