Mercedes A4544610117 - УГОЛ

SMART FORFOUR BRABUS 454.034

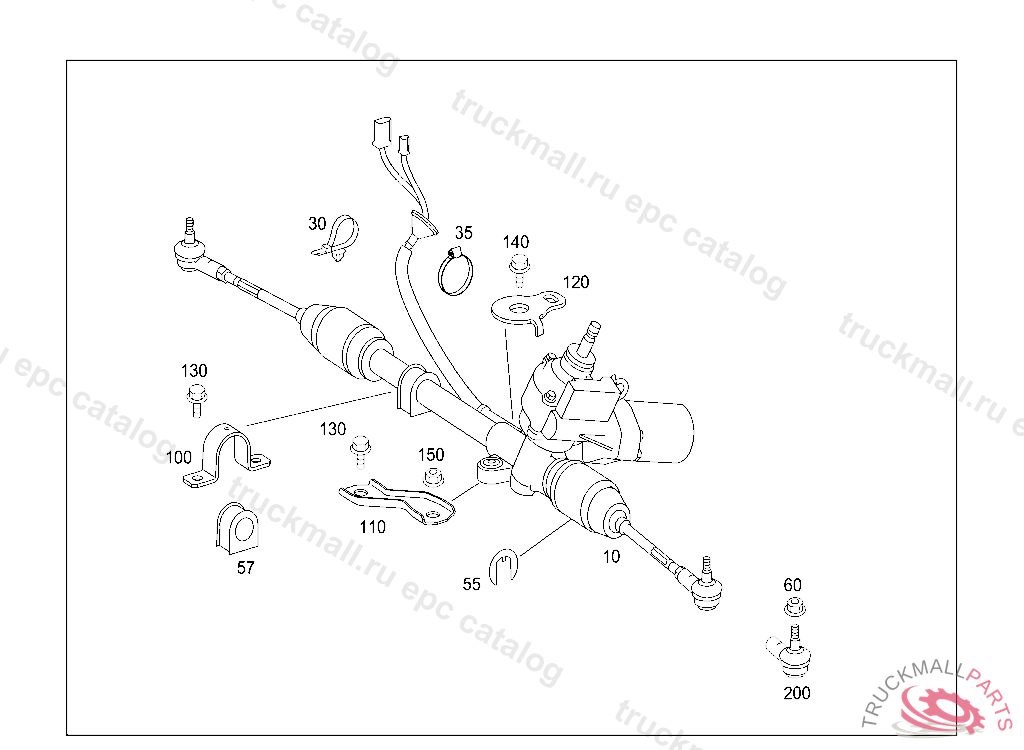

46 STEERING - 022 STEERING GEAR AND STEERING LINKAGE

Поз.
Артикул
Описание
10
A4544600700
STEERING BOX ASSEMBLY
10
A4544600800
STEERING BOX ASSEMBLY RACK-AND-PINION STEERING
30
A0009952990
CLIP CABLE HARNESS MOUNTING
35
A0069970690
LOOM TIE. CLAMP BRAKE HOSE 45-55 MM, DISCONTINUED,PART IS NO LONGER REQUIRED
55
A4544600600
ACTUATOR STEERING ANGLE
57
A4544660082
RUBBER RING STEERING GEAR
60
A0059902951
NUT ENGINE RIGHT SUPPORT TO CYLINDER CRANKCASE M10
100
A4544610129
CLAMP STEERING TO FRONT AXLE BEAM
110
A4544610117
ANGLE STEERING TO FRONT AXLE BEAM
120
A4544610229
PLATE STEERING TO FRONT AXLE BEAM
130
N910105012003
HEXAGON HEAD BOLT. SCREWM 12X1,5X20 MM - TO A 202 490 08 41
140
N910105012015
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M12X45
150
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
200
A4544600205
TIE ROD END STEERING
