Главная
›
Mercedes
›
ENGINE
›
OM 457 HLA/IV
›
457.954
›
15 ELECTRICAL EQUIPMENT
›

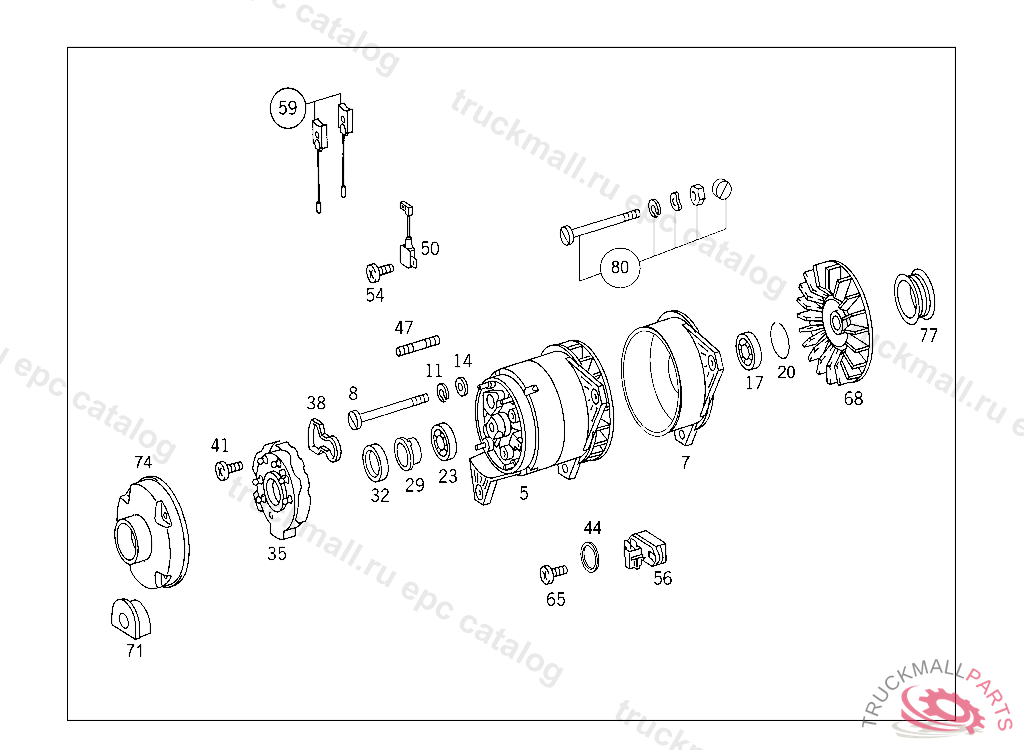

030 ALTERNATOR IL. 1
Mercedes N007985006580 - Болт
OM 457 HLA/IV 457.954
15 ELECTRICAL EQUIPMENT - 030 ALTERNATOR IL. 1
Поз.
Артикул
Описание
5
A0131547302
ALTERNATORBOSCH 28V 70/140A
5
A0111545002
ALTERNATOR28V/140A
7
A0001541049
BEARING
8
A0009907721
SCREW
11
A0009906147
LOCK WASHER
14
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
17
A0059812125
BALL BEARING
20
N009045030000
SNAP RING
23
A0049811401
CYLINDR. ROLLER BEARING
29
A0001540051
SPACER RING
32
A0069977447
SEAL RING
35
A0011540816
RECTIFIERTO 009 154 08 02,008 154 78 02
38
A0001541180
GASKET
41
N007985004151
SCREW T-FITTING TO BRACKET M4X25
44
N000137004202
SPRING WASHER ALTERNATOR CONNECTION D+
50
A0011566701
CONDENSER
54
N007985006580
SCREW APPARATUS PLATE TO CAB,K 062140
56
A0021549606
REGULATOR AND CUT-OUT
56
A0001543005
REGULATOR
65
A0009907521
SCREW REGULATOR MOUNTING TO 009 154 07 02
68
A0011550818
FANTO 011 154 50 02
71
A0001541280
CABLE GROMMET. GASKETTO 011 154 50 02
74
A4071540165
COVER
80
A0001501672
REPAIR KIT ROTOR TO 009 154 08 02,008 154 78 02
