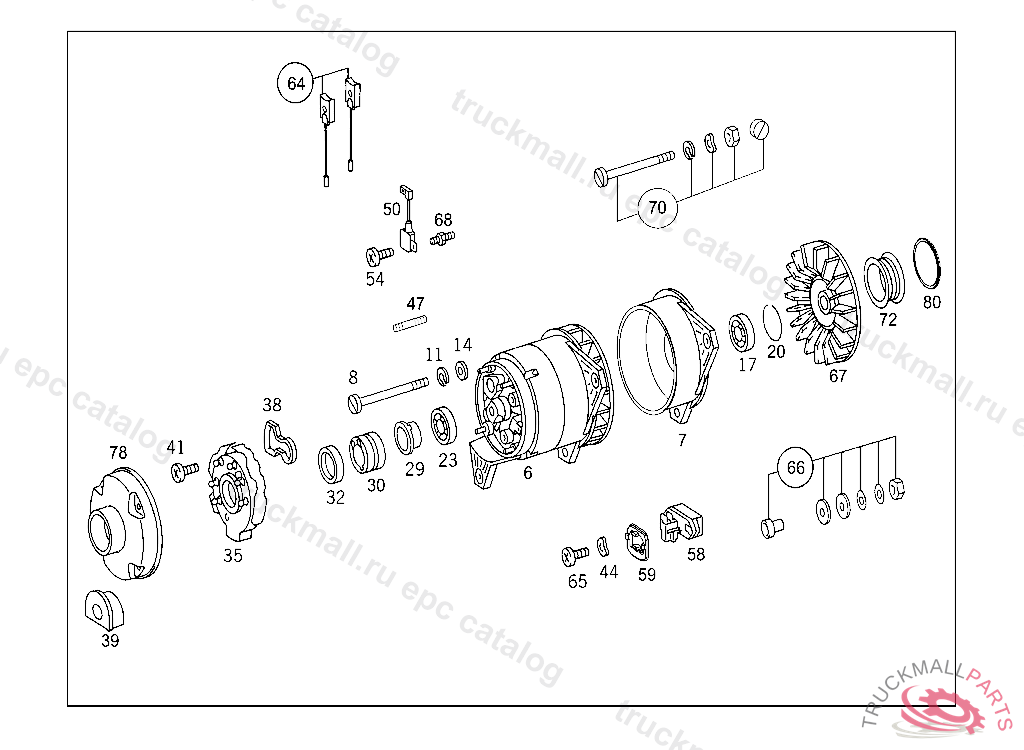

Поз.
Артикул
Описание
6
ALTERNATOR , Replaced By: A4761547701
7
BEARING
8
SCREW
11
LOCK WASHER
14
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
14
WASHER COMPRESSED AIR LINE TO BRACKET
17
BALL BEARING
20
SNAP RING
23
CYLINDR. ROLLER BEARING
29
SPACER RING
32
SEAL RING
35
RECTIFIERTO 009 154 08 02,008 154 78 02
38
GASKET
39
CABLE GROMMET. GASKETTO 011 154 50 02
41
SCREW T-FITTING TO BRACKET M4X25
41
SCREW
47
STUD
50
CONDENSER
54
SCREW APPARATUS PLATE TO CAB,K 062140
58
REGULATOR
65
SCREW REGULATOR MOUNTING TO 009 154 07 02
67
FANTO 011 154 50 02
67
FAN
70
REPAIR KIT ROTOR TO 009 154 08 02,008 154 78 02
78
COVER
80
INTERFERENCE SUPP. CAP ALTERNATOR
