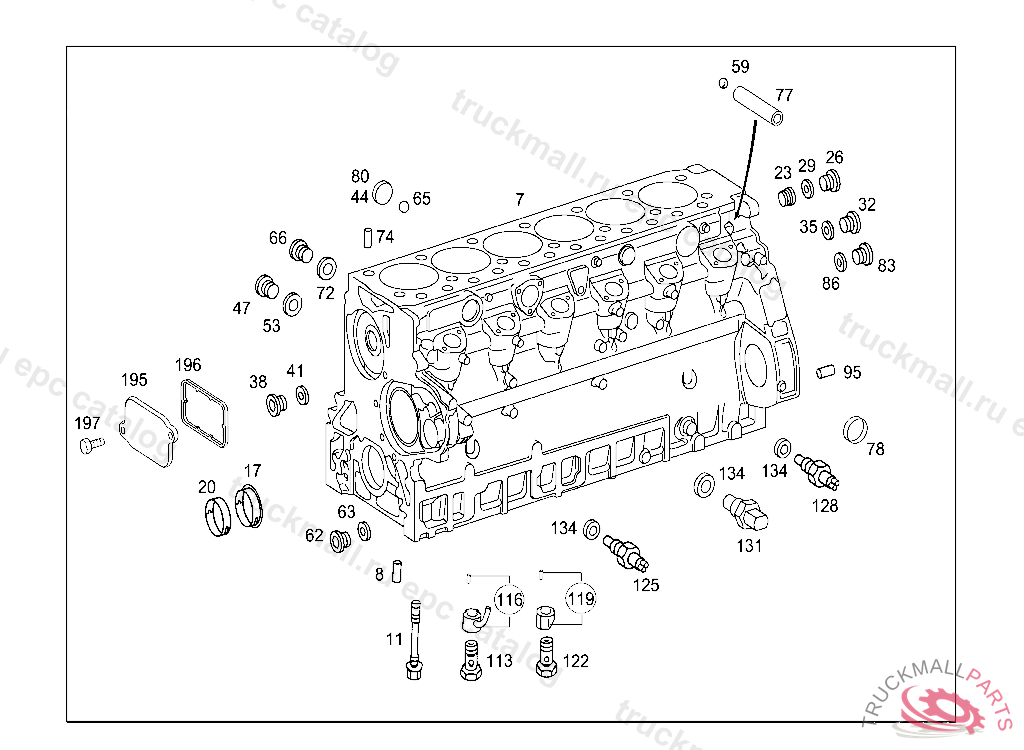

Поз.
Артикул
Описание
7
CRANKCASE
8
DOWEL PIN CRANKSHAFT BEARING CAP
11
SCREW F CRNKSHFT BEAR CAP CRANKSHAFT BEARING CAP TO CYLINDER CRANKCASE M 18X2X153/35 MM
17
CAMSHAFT BEARING WITH COLLAR
20
CAMSHAFT BEARING STANDARD 35 MM
20
CAMSHAFT BEARING STANDARD 30 MM
23
SCREW PLUG OIL-FILTER/LONGITUDINAL-DUCT CONNECTION BORE
26
SCREW PLUG OIL COOLER,5 360280
29
SEAL RING
32
SCREW PLUG OIL COOLER,5 360280
35
SEAL RING
38
SCREW PLUG OIL COOLER,5 360280
41
SEAL RING
44
EXPANSION PLUG TO LOCK LONGITUDINAL COOLING WATER DUCT 50.1 MM
47
SCREW PLUG OIL COOLER,5 360280
47
SCREW PLUG , Replaced By: N000908014009
47
SCREW PLUG, FILLING HOUSING,BOTTOM M18X1.5
53
SEALING RING OIL LINE TO CYLINDER CRANKCASE
53
SEALING RING
53
SEAL RING
59
BALL SHIFTING CYLINDER
59
BALL INTERMEDIATE FLANGE
59
BALL , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
59
BALL FRONT AND REAR 14.288 MM
62
OIL NOZZLE PTO BORE HOLES COVER
63
SEALING RING OIL LINE TO CYLINDER CRANKCASE
65
BALL , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
66
SCREW PLUG , Replaced By: N000908014009
72
SEALING RING
74
CYLINDER PIN
77
THROTTLE FUEL BORE COVER,UNIT PUMP SIDE
78
EXPANSION PLUG CAP FOR OIL DUCT ON UNIT PUMP SIDE
80
EXPANSION PLUG CAP FOR OIL DUCT ON UNIT PUMP SIDE
80
EXPANSION PLUG TO LOCK LONGITUDINAL COOLING WATER DUCT 50.1 MM
80
EXPANSION PLUG
83
SCREW PLUG, FILLING. SCREW PLUG LONGITUDINAL OIL DUCT COVER ON OIL COOLER SIDE M16X1,5
86
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
95
CYLINDRICAL PIN TIMING CASE FIXING 16X24
113
HOLLOW SCREW OIL SPRAY NOZZLE TO CYLINDER CRANKCASE
116
OIL NOZZLE PISTON COOLING
119
OIL NOZZLE CAM LUBRICATION
119
OIL NOZZLE CAM LUBRICATION
122
HOLLOW SCREW BREATHER LINE TO HEAT EXCHANGER
125
SENDER UNIT TEMPERATURE GAUGE SENDER UNIT
125
SENDER UNIT TEMPERATURE SENDER UNIT
128
SENDER UNIT TEMPERATURE SENDER UNIT
128
SENDER UNIT TEMPERATURE GAUGE SENDER UNIT
131
SENDER UNIT TEMPERATURE GAUGE SENDER UNIT
131
SENDER UNIT TEMPERATURE SENDER UNIT
134
SEALING RING
195
COVER CRANKCASE BREATHING
196
GASKET
197
SCREW STOP TO BATTERY CASE
