Главная
›
Mercedes
›
CROSS-COUNTRY VEHICLE
›
G 270 CDI TO CHASSIS 144790
›
461.345
›
60 SHELL
›
105 PLATFORM
Mercedes A0009983940 - УПОР

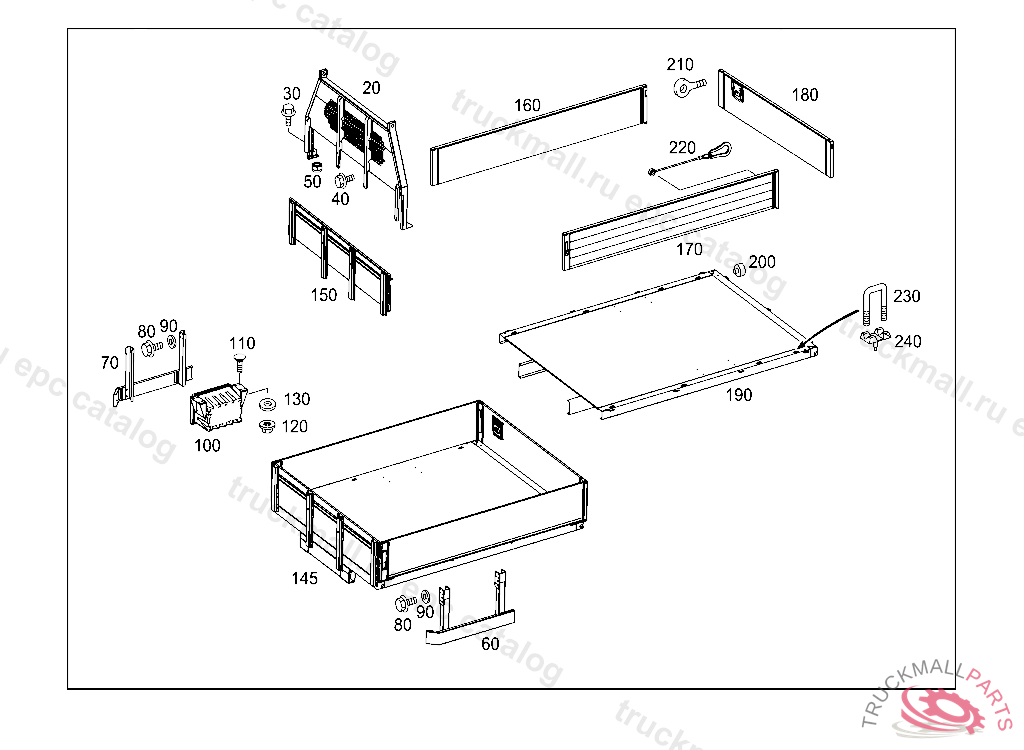

G 270 CDI TO CHASSIS 144790 461.345
60 SHELL - 105 PLATFORM
Поз.
Артикул
Описание
20
A4616000076
LADDER RACK FRONT
30
N910143008002
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
40
N000000000428
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
50
N910113010000
NUT STRAP TO BRACKET
60
A4615200322
UNDER RIDE PROTECTION LATERAL LEFT
70
A4615200422
UNDER RIDE PROTECTION LATERAL RIGHT
80
N000000004775
HEXAGON HEAD BOLT FASTENING, FOOT-OPERATED PARKING BRAKE M8X22
90
N000000003250
WASHER BRACKET TO CAB REAR PANEL
100
A4618401305
STORAGE BOX RIGHT
110
N000000006325
SCREW STOWAGE BOX TO PLATFORM M8X25
120
N000000006038
NUT-AND-WASHER ASSEMBLY RUBBER MOUNTING TO FRAME M8
130
N000000003250
WASHER BRACKET TO CAB REAR PANEL
145
A4616005301
PLATFORM
150
A4616201200
FIREWALL
160
A4616301800
SIDEWALL RIGHT
170
A4616301700
SIDEWALL LEFT
180
A4616400901
REAR WALL
190
A4616101900
FLOOR PANEL
200
A0009983940
STOP BUFFER SHORT, SIDE
210
A0009905213
BOLT
220
A0006180190
CABLE
230
A0006190130
CLAMP
240
A0009984040
STOP BUFFER
