Mercedes N308765016002 - Болт

300GE/G300, 500GE/G500 463.228

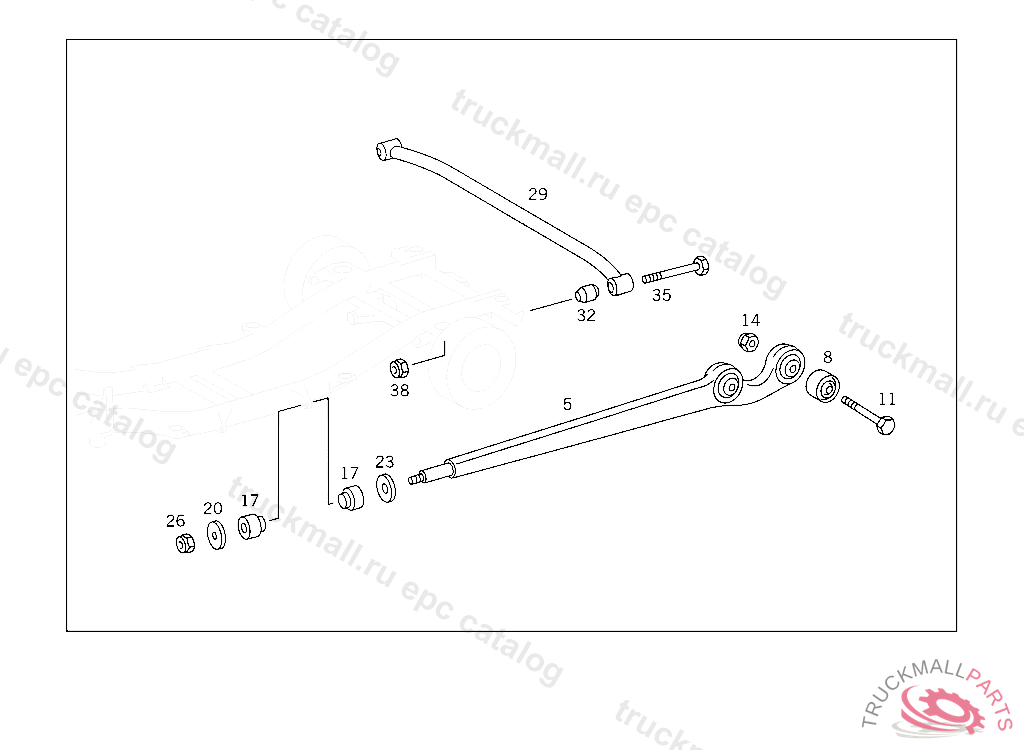

35 REAR AXLE - 090 REAR AXLE LONGITUDINAL & TRANSVERSE CONTROL ARMS

Поз.
Артикул
Описание
5
A4613500006
CONTROL ARM LONGITUDINAL CONTROL ARM
8
A4603525014
BEARING
11
N308765016002
HEXAGON HEAD BOLT. SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
11
N000960016244
SCREW SHOCK ABSORBER TO TOP BRACKET
14
N913002016002
NUT BEARING BRACKET TO SIDE MEMBER
17
A4603520465
RUBBER MOUNTING THRUST ROD TO FRAME
20
A4603520176
WASHER , Replaced By: A4603520476
20
A4603520476
WASHER LONGITUDINAL CONTROL ARM TO FRAME
23
A4603520276
WASHER THRUST ROD TO FRAME
26
N913002016002
NUT BEARING BRACKET TO SIDE MEMBER
29
A4613500306
CONTROL ARM
29
A4613500106
CONTROL ARM TRANSVERSE
32
A4603520565
RUBBER MOUNTING , 034856 901180
35
N000960016288
SCREW CONTROL ARM TO FRAME
38
N913002016002
NUT BEARING BRACKET TO SIDE MEMBER
