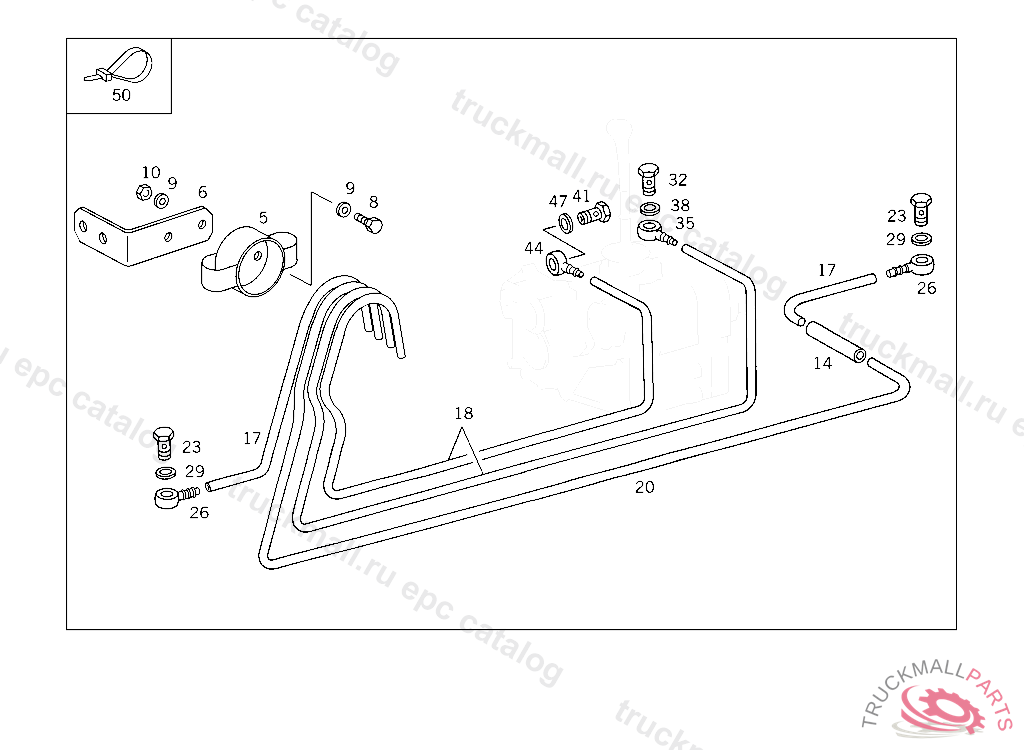

Поз.
Артикул
Описание
5
BRACKET UNIT BREATHING
5
VALVE500 GE
5
VALVE , Replaced By: A4635250339
5
VALVE , Replaced By: A4633500390, +003A0089976082
6
BRACKET , TO BE SELF-PRODUCED IF REQUIRED
8
SCREW , Replaced By: N000000001145
8
SCREW BRACKET TO COVERING
9
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
9
WASHER COMPRESSED AIR LINE TO BRACKET
10
NUT BALL PIVOT TO LEVER
14
HOSE , Replaced By: A1074763126
17
PLASTIC PIPE RISING PIPE 4X6 MM
17
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
18
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
20
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
23
HOLLOW SCREW. SCREW GOVERNOR-PRESSURE/MODULATION-PRESSURE MEASURING CONNECTION,012578
23
HOLLOW SCREW GOVERNOR-PRESSURE/MODULATION-PRESSURE MEASURING CONNECTION,012578, Replaced By: N000000004895
26
BANJO UNION AXLE BREATHING 4/8
29
SEAL RING SCREW PLUG
32
HOLLOW SCREW LINE CONNECTION
35
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
38
SEAL RING PNEUMATIC VALVE
41
HOLLOW SCREW HEATING CONNECTION
44
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
47
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
50
LOOM TIE TO MOUNT PLASTIC PIPING
