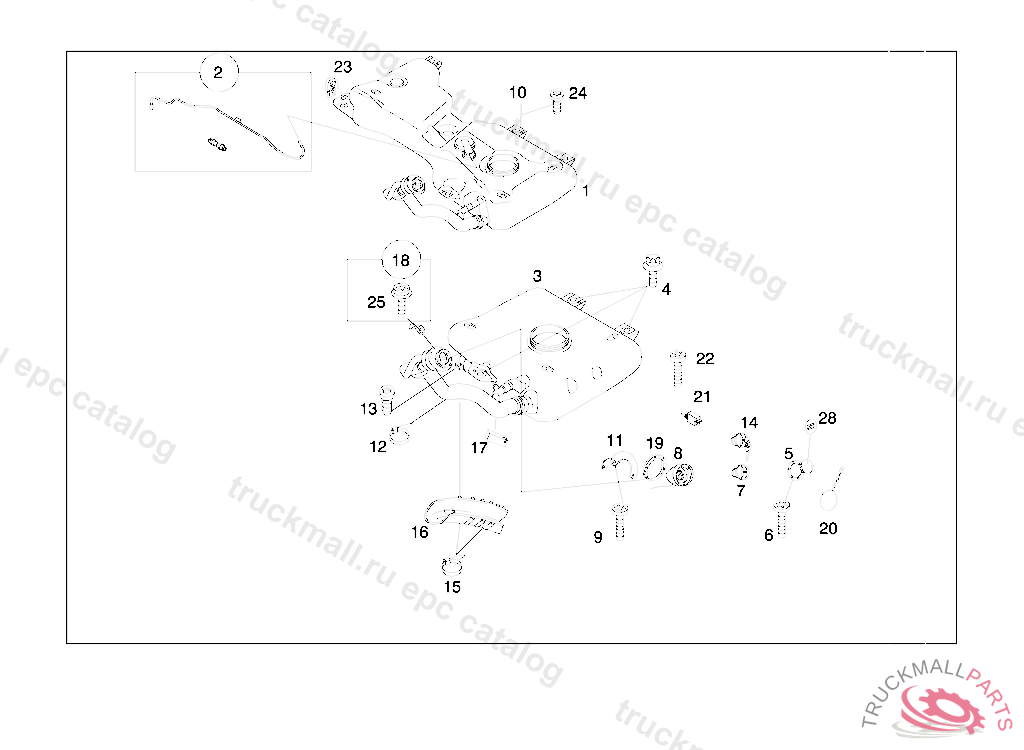

Поз.
Артикул
Описание
1
LARGE TANK , H 50002120020211
2
LINE RETURN 1 , H 51850620020325
2
LINE RETURN 1 , H 11463620000111 H 99999720021230
2
LINE RETURN 1 , 20021230
2
LINE RETURN 1 , H 51850720020325 H 99999720021230
3
FUEL TANK , H 11463620000111 H 50002020020211
3
FUEL TANK
4
BOLT TANK TO SUBSTRUCTURE
5
FUEL CAP
6
SCREW FEMALE TORX M5 X 25
6
SCREW FEMALE TORX M5 X 25 , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. H 05320919990604, Replaced By: Q0012379V000000000
7
FUEL FILLER CAP , H 18287420000911
7
FUEL FILLER CAP
7
FUEL FILLER CAP , 20000911
8
FILLER PIPE COMPARTMENT T ORDER ADDITIONALLY ALSO: Q0001513V011 000 000
9
BOLT
9
CYLINDER HEAD BOLT
10
MOUNTING PLATE MOUNT FILLER NECK
10
REINFORCEMENT SHACKLE TAN , H 50002120020211 H 57997320020916
11
HOLDER TANK FILLER PIPE
12
CABLE TIE
13
SELF-TAPPING SCREW FEMALE
14
LOCKABLE FUEL CAP
15
CABLE TIES T80 I
16
GUARD TANK FILLER PIPE
17
FOAM PROTECTION
18
ATTACHMENT HOLDER TANK FI
18
CLIP CLIC R86 - 120
19
SPACER, TANK TRAY
20
RETAINING STRAP TANK LOCK
21
CENTRAL LOCKING ACTUATOR
21
CENTRAL LOCKING ACTUATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. H 35724120010618, Replaced By: Q0008736V002000000
21
CENTRAL LOCKING ACTUATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20020201, Replaced By: Q0008736V003000000
22
CYLINDER HEAD BOLT , Replaced By: Q0004484V000L02200
23
HOLDER PURGE VALVE
24
SCREW TORX 40X6.5
25
BOLT
25
SCREW PT K 60 X 25
28
STICKER PANEL INTAKE AIR AIR INTAKE, 20010108
28
"1ST-EDITION" - STICKER F SILVER/BLACK
28
"BRABUS" - STICKER ON FUEL FILLER FLAP, 20030103
28
"1ST-EDITION" - STICKER F SILVER/BLACK
28
STICKER FUEL CAP SMART-BR ON FUEL FILLER FLAP, 20010108
28
"BRABUS" - STICKER AIR INTAKE, 20000101 20030103
28
"BRABUS" - STICKER SET2 PIECES, 20030103
28
STICKER SMART-BRABUS SET2 PIECES, 20010108
