Поз.
Артикул
Описание

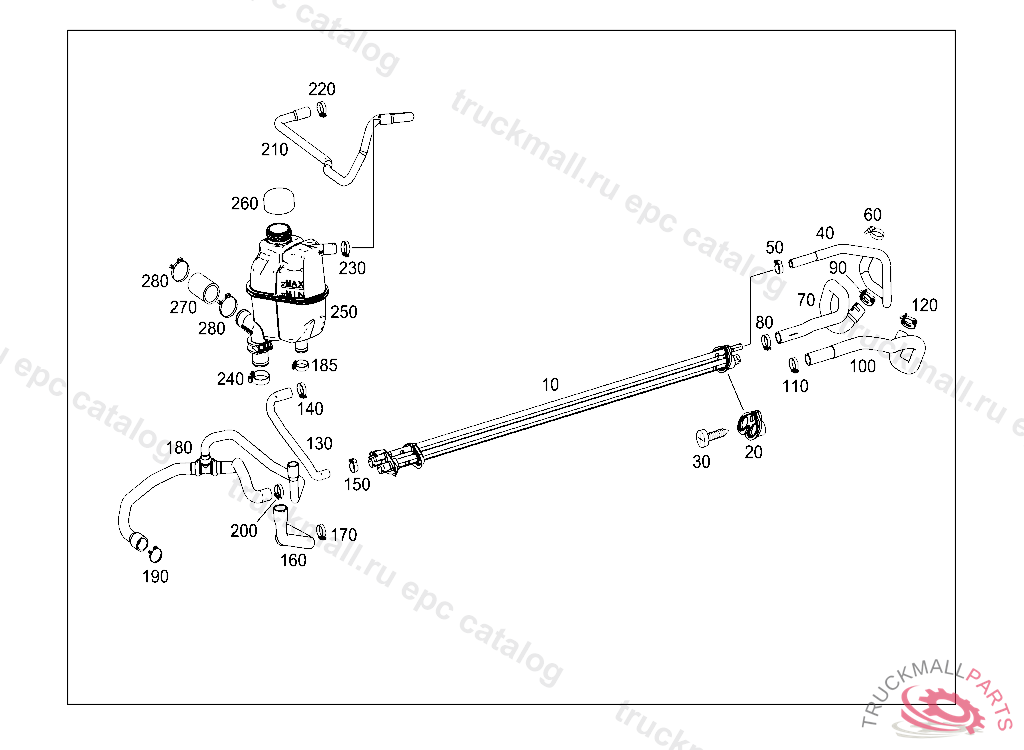

10
COOLANT PIPE PACK FROM RADIATOR TO ENGINE
10
COOLANT PIPE PACK FROM RADIATOR TO ENGINE
10
COOLANT PIPE PACK FROM RADIATOR TO ENGINE, Replaced By: Q0005769V015000000
10
COOLANT PIPE PACK FROM RADIATOR TO ENGINE, Replaced By: Q0008581V005000000
10
COOLANT PIPE PACK FROM RADIATOR TO ENGINE, Replaced By: Q0008581V006000000
10
COOLANT PIPE PACK FROM RADIATOR TO ENGINE, Replaced By: Q0008581V007000000
20
HOLDER COOLANT PIPES REAR COOLING WATER LINE THRU ENGINE COMPARTMENT PARTITION PANEL
30
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
40
WATER HOSE HEATING WATER RETURN LINE
50
HOSE CLAMP COOLANT HOSE TO COOLANT LINE
60
CABLE TIE COOLING WATER HOSE TO ENGINE
70
WATER HOSE FROM RETURN LINE TO ENGINE
70
WATER HOSE FROM RETURN LINE TO ENGINE
80
CLAMP HOSE TO HEAT EXCHANGER 22MM
90
HOSE CLAMP BEHR CORE PRODUCTION
100
WATER HOSE FEED,REAR
100
WATER HOSE FEED,REAR
110
HOSE CLAMP COOLANT HOSE TO COOLANT LINE
120
CABLE TIE COOLING WATER HOSE TO ENGINE
130
WATER HOSE HEATING FEED
130
WATER HOSE HEATING FEED
140
CLAMP HOSE TO HEAT EXCHANGER 22MM
150
CLAMP HOSE TO HEAT EXCHANGER 22MM
150
HOSE CLAMP BEHR CORE PRODUCTION
160
WATER HOSE COOLING WATER FEED LINE
170
HOSE CLAMP COOLANT HOSE TO COOLANT LINE
180
WATER HOSE COOLER TO EXPANSION RESERVOIR AND RETURN LINE, H 11463520000111
180
WATER HOSE COOLER TO EXPANSION RESERVOIR AND RETURN LINE
185
CLAMP HOSE TO HEAT EXCHANGER 22MM
190
CLIP CLIC E350 COOLANT HOSE AT COOLANT LINE AND EXPANSION RESERVOIR
200
HOSE CLAMP COOLANT HOSE TO COOLANT LINE
210
WATER HOSE FROM HEAT EXCHANGER TO EXPANSION RESERVOIR
210
WATER HOSE FROM HEAT EXCHANGER TO EXPANSION RESERVOIR
220
CLAMP HOSE TO HEAT EXCHANGER 22MM
230
CLAMP HOSE TO HEAT EXCHANGER 22MM
240
CLIP CLIC E350 COOLANT HOSE AT COOLANT LINE AND EXPANSION RESERVOIR
250
EXPANSION TANK COOLING WATER, H 30002120010108
250
COMPENSATING TANK ON COMPENSATION RESERVOIR
260
RADIATOR CAP EXPANSION TANK
270
CONNECTING HOSE FEED FROM EXPANSION TANK TO RADIATOR
280
CLIP CLIC E350 COOLANT HOSE AT COOLANT LINE AND EXPANSION RESERVOIR
