Mercedes A4636824971 - ЭКРАН ЗАЩИТНЫЙ ТРУБЫ ВЫХЛОПНОЙ

G 550 FROM CHASSIS 144226 463.237

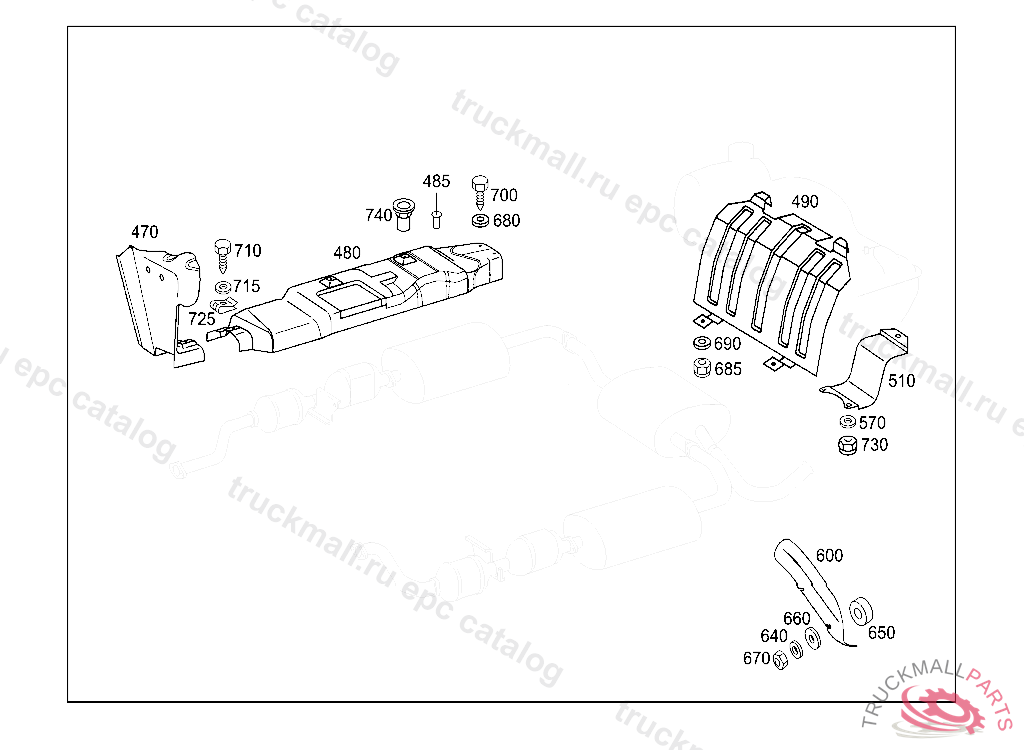

49 EXHAUST SYSTEM - 300 SCREENING PLATES IL. 2

Поз.
Артикул
Описание
470
A4636824971
SCREENING FRONT LEFT
470
A4636825071
SCREENING FRONT RIGHT
480
A4636820209
SCREENING RIGHT
480
A4636820109
SCREENING LEFT
480
A4636802820
SCREENING RIGHT
480
A4636802720
SCREENING LEFT
485
N910002004113
RIVET RAIL TO FRAME
490
A4634920130
PROTECTIVE PLATE AT FRAME ABOVE MUFFLER REAR
510
A4634921130
PROTECTIVE PLATE
570
A4604920376
WASHER MAIN MUFFLER SUSPENSION
570
A4634920176
WASHER
600
A4634926830
PROTECTIVE PLATE REAR EXHAUST LINE
640
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
670
N304032006004
NUT SPRING-LOADED PUSH ROD
685
N304032006004
NUT SPRING-LOADED PUSH ROD
690
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
700
N000000001454
TAPPING SCREW , A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
710
N000000000461
TAPPING SCREW MOUNTING PARTS 4.8X16
710
N007976004304
SHEET METAL SCREW
715
A4604920376
WASHER MAIN MUFFLER SUSPENSION
715
A4634920176
WASHER
725
A0029948245
LOCK INTAKE SCOOP TO FENDER
730
N910112006001
NUT , Replaced By: N913023006001
740
A2109900150
HEXAGON NUT W COLLAR BRACKET MOUNTING
