Mercedes
›
CROSS-COUNTRY VEHICLE
›
G 550 FROM CHASSIS 144226
›
463.237
›
28 TRANSFER CASE
›

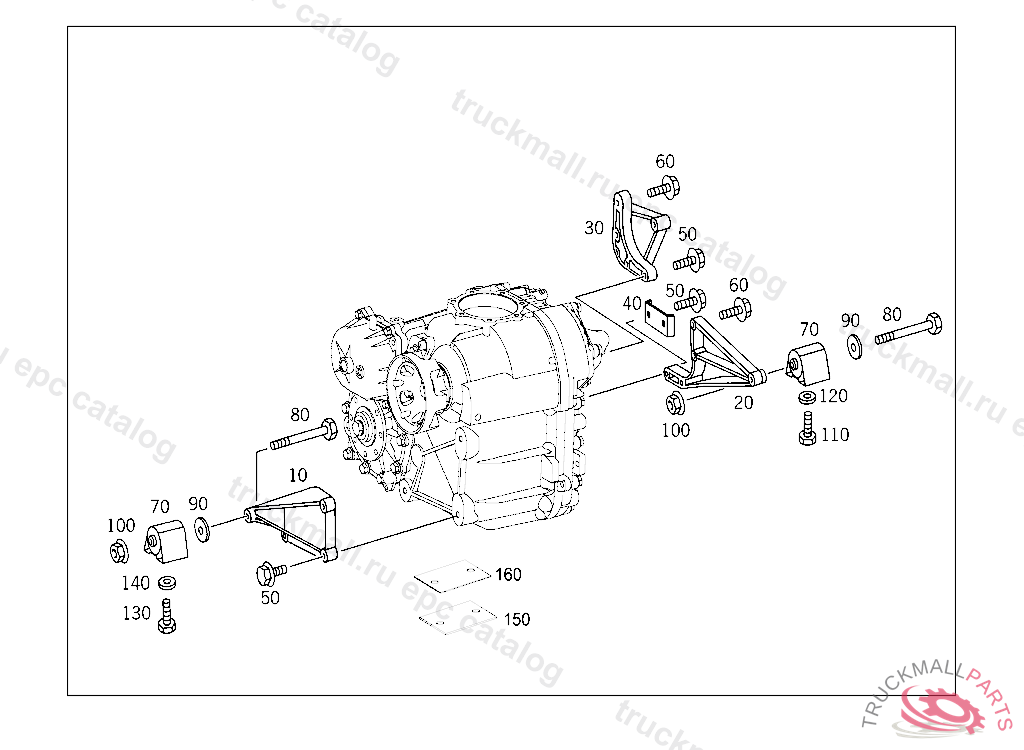

015 TRANSFER CASE SUSPENSION & SHIFTING MECHANISM
Mercedes A4632820367 - Проставка
G 550 FROM CHASSIS 144226 463.237
28 TRANSFER CASE - 015 TRANSFER CASE SUSPENSION & SHIFTING MECHANISM
Поз.
Артикул
Описание
10
A4632850902
SUPPORT TRANSFER CASE,FRONT
20
A4632850302
SUPPORT TO TRANSFER CASE REAR LEFT
30
A4632850402
SUPPORT TO TRANSFER CASE REAR RIGHT
40
A4632850140
BRACKET TRANSFER CASE
50
N910143010000
SCREW PLATE TO FRAME M 10X45
60
N910105010012
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
70
A4632800386
BEARING FRONT
70
A4632800186
BEARING REAR LEFT
70
A4632800286
BEARING REAR RIGHT
80
N308765012019
HEXAGON HEAD BOLT BEARING TO SUPPORT REAR RIGHT M12X1,5X140
90
A3092410162
THRUST WASHER BEARING TO SUPPORT REAR RIGHT
100
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
110
N304017008021
SCREW PIPE CLAMP
120
A1159905240
WASHER INTERMEDIATE BEARING TO FRAME
130
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
140
A1159905240
WASHER INTERMEDIATE BEARING TO FRAME
150
A4632820267
SPACER FRONT FRAME AREA
160
A4632820367
SPACER FRAME TO BODY
