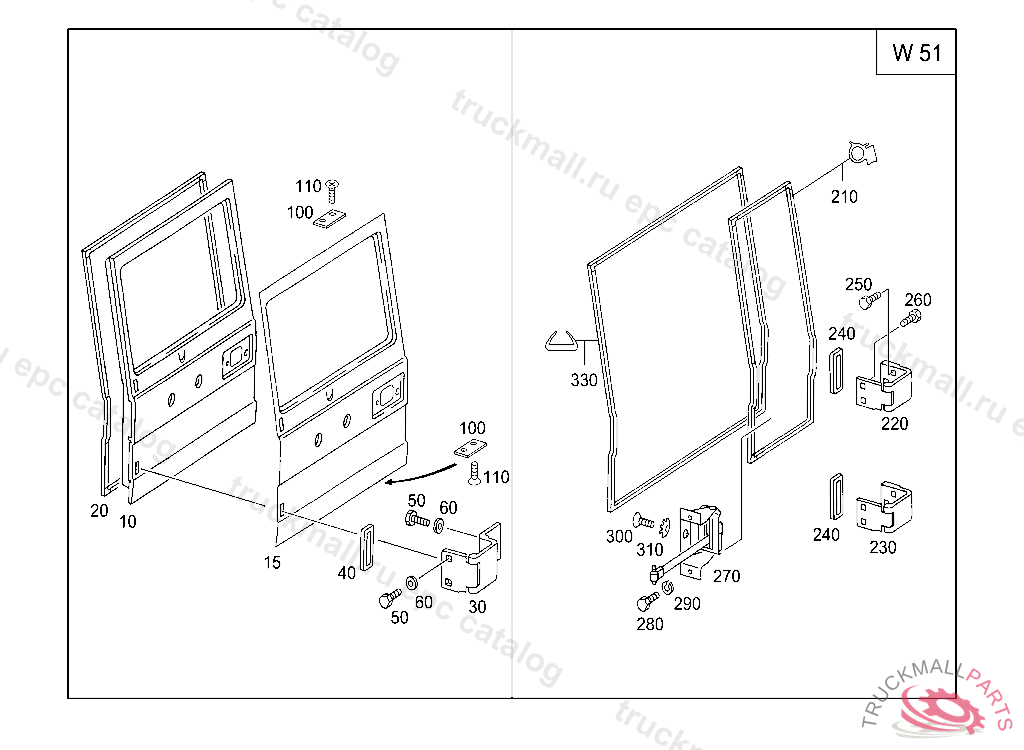

Поз.
Артикул
Описание
10
REAR-END DOOR ONE-WING REAR PANEL DOOR
10
DOOR SHELL ONE-WING REAR PANEL DOOR
15
PANELLING ONE-WING REAR PANEL DOOR
20
DOOR SEAL ONE-WING REAR PANEL DOOR
30
HINGE TOP AND BOTTOM
40
SEAL HINGE
50
SCREW CONNECTOR TO REAR SHIFTING ROD
50
SCREW BRACKET TO CONSOLE
60
WASHER STRUT TO CROSS MEMBER
100
PLATE RIGHT FRONT DOOR,BOTTOM
100
RUN-ON PLATE RIGHT FRONT DOOR,BOTTOM
110
SCREWM4X16
110
TAPPING SCREW RIGHT 4,2X13, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: N000000005220
110
TAPPING SCREW4.2X16
210
SEAL REAR PANEL DOOR,LEFT
210
SEAL REAR PANEL DOOR,RIGHT, X 15554920040331
220
HINGE TOP LEFT, TO BE ADAPTED DURING ASSEMBLY
220
HINGE TOP RIGHT
230
HINGE BOTTOM RIGHT
230
HINGE BOTTOM LEFT
240
SEAL HINGE
250
SCREW BRACKET TO CROSS CONNECTION STRUT
260
SCREW BRACKET TO CROSS CONNECTION STRUT
270
LOCK DEVICE RIGHT
270
LOCK DEVICE REAR PANEL DOOR,LEFT, X 20691420130130
280
SCREW PUMP TO BRACKET
290
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
300
SCREW SCREENING PLATE
300
SCREW BRACKET TO BRACKET M6X10
310
SERRATED WASHER ACCELERATOR PEDAL TO CAB, ELIMINATED,NO LONGER REQUIRED
330
EDGE GUARD
