Mercedes A0008006115 - ТРУБКА

G 500 GUARD 463.242

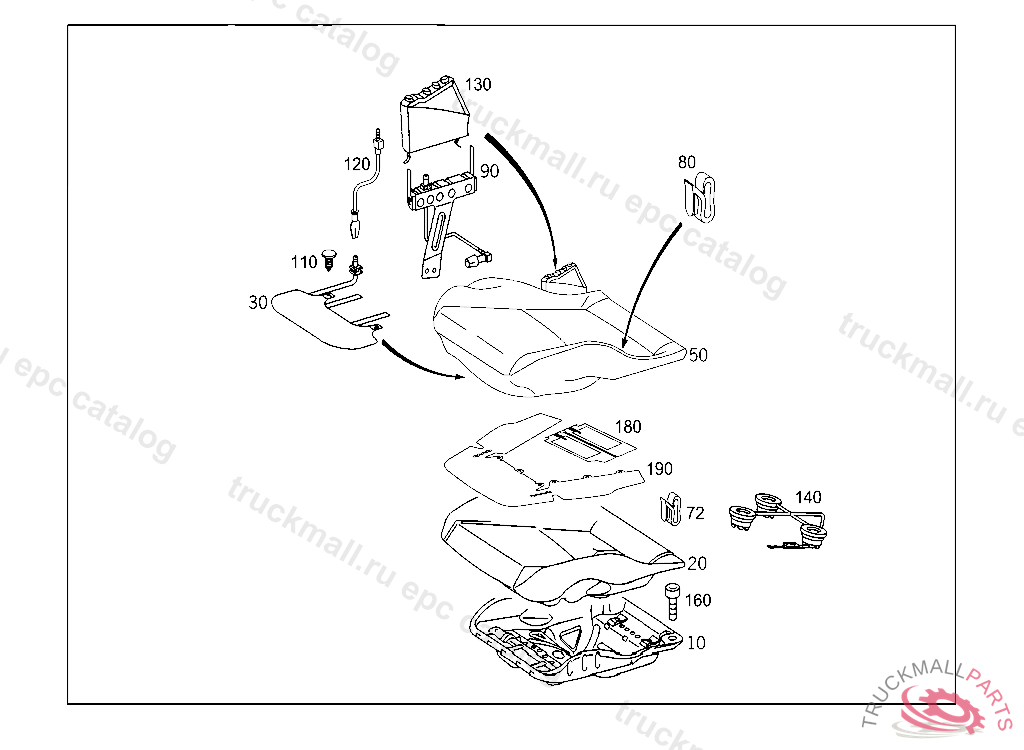

91 DRIVER'S SEAT - 065 LEFT SEAT IL. 1

Поз.
Артикул
Описание
10
A2049100122
CUSHION FRAME
20
A4639102150
PAD FRONT SEAT CUSHION LEFT CUSHION FRAME
20
A4639103903
PAD FRONT SEAT CUSHION
20
A2129100150
REST
30
A0009103675
SEAT ADAPTER
50
A4639109703
COVER FRONT SEAT CUSHION , X 20841220130226 20131031 7M72 ZN9QFT463A9813 DESIGNO TITANIUM METALLIC
50
A4639106200
COVER FRONT SEAT CUSHION
50
A4639104703
COVER FRONT SEAT CUSHION
50
A4639109303
COVER FRONT SEAT CUSHION
50
A4639105303
COVER FRONT SEAT CUSHION
50
A4639107003
COVER FRONT SEAT CUSHION
50
A4639109503
COVER FRONT SEAT CUSHION
50
A4639102103
COVER FRONT SEAT CUSHION , X 20407820121031 20131031 7M72 ZN9QFT463A9813 DESIGNO TITANIUM METALLIC
50
A4639109902
COVER FRONT SEAT CUSHION
50
A4639105503
COVER FRONT SEAT CUSHION
72
A1409883778
CLIP
80
A1409883778
CLIP
90
A0009101114
BRACKET CONTROL VALVE
110
N000000001955
HEXALOBULAR BOLT LIGHT SWITCH M4X6
120
A0008002015
HOSE LINE BETWEEN BASE AND VALVE
120
A0008006115
HOSE ASSEMBLY LEFT SEAT
130
A0018001378
CONTROL VALVE LEFT SEAT
140
A0999060115
FAN
160
N914125010529
CAP BOLT SPEED SENSOR TO STEERING KNUCKLE LEFT AND RIGHT M10X16
180
A2128202498
SEAT HEATING
180
A2128200098
HEATING ELEMENT SEAT HEATING
190
A4639064200
SEAT HEATING BACKREST OUTSIDE RIGHT
