Поз.
Артикул
Описание

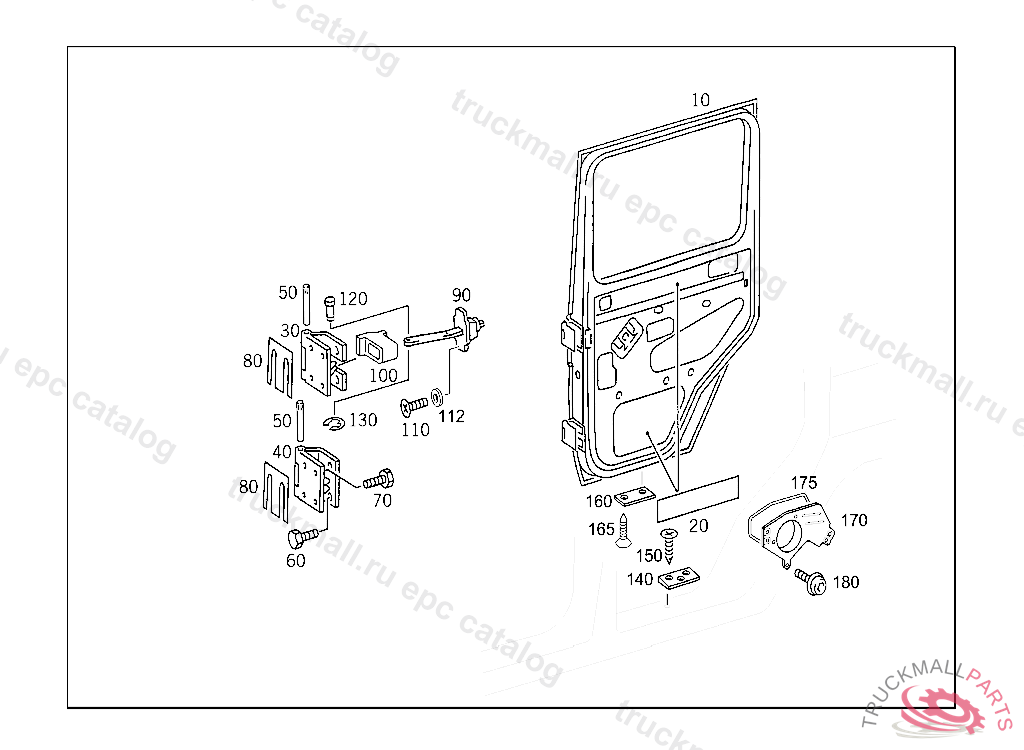

10
REAR DOOR LEFT REAR DOOR, X 19654120120119
10
REAR DOOR RIGHT REAR DOOR, X 20407820121031
20
SOUNDPROOFING LEFT
20
SOUNDPROOFING ON TOP OF BODYWORK
30
HINGE LEFT FRONT, TOP AND BOTTOM
30
HINGE RIGHT TOP
40
HINGE RIGHT TOP
40
HINGE LEFT FRONT, TOP AND BOTTOM
50
HINGE PIN FRONT TOP LEFT
60
HEXALOBULAR BOLT AIR CLEANER TO BRACKET
60
SCREW BRACKET TO CROSS CONNECTION STRUT
70
SCREW BRACKET TO CROSS CONNECTION STRUT
70
SCREW SUPPORT TO FENDER
80
PAD HINGE,LEFT, Replaced By: A4637250000
90
DOOR CHECK LEFT DOOR
100
SEAL LEFT DOOR CHECK, X 19654020120119
110
SCREW SENSOR CABLE MOUNTING
110
HEXALOBULAR BOLT INTERIOR LOCKING MECHANISM M6X20
110
SCREW FLANGE TO TRANSMISSION CASE COVER
110
SCREW
112
WASHER COMPRESSED AIR LINE TO BRACKET
120
COLLAR PIN DOOR STOP TO CENTER PILLAR LEFT
130
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
140
PLATE RIGHT FRONT DOOR,BOTTOM
160
RUN-ON PLATE RIGHT FRONT DOOR,BOTTOM
165
SCREW SWITCH TO INSTRUMENT PANEL
170
BRACKET DOOR CONTROL UNIT, LEFT
175
SEAL BRACKET AT LEFT DOOR
180
SCREW , Replaced By: A1409842829
