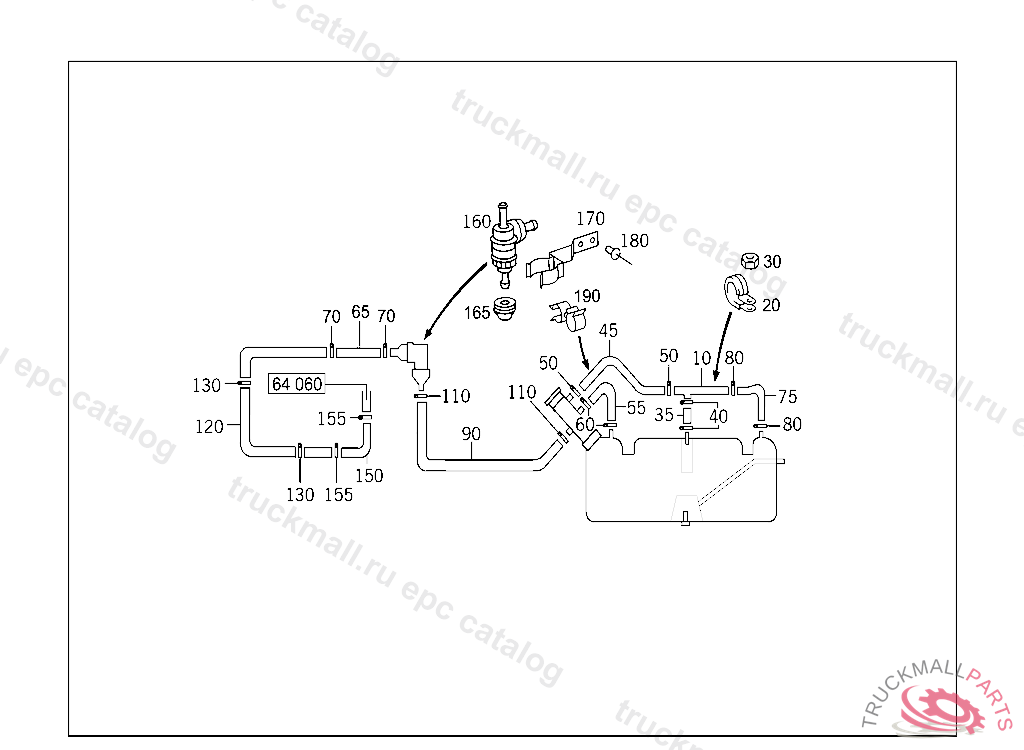

Поз.
Артикул
Описание
10
BREATHER AT FRAME ABOVE FUEL TAK
20
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
30
NUT SPRING-LOADED PUSH ROD
35
HOSE BETWEEN FUEL TANK AND FILLER NECK, ORDER BY THE METER
40
CLAMP HOSE TO FEEDLINE AND ENGINE
45
HOSE BETWEEN FUEL TANK AND FILLER NECK, ORDER BY THE METER
50
CLAMP HOSE TO FEEDLINE AND ENGINE
55
HOSE BETWEEN FUEL TANK AND FILLER NECK, ORDER BY THE METER
60
CLAMP HOSE TO FEEDLINE AND ENGINE
60
LOOM TIE FROM COOLING PIPE TO PUMP
65
HOSE FROM FEED LINE TO FILTER 240 MM
75
HOSE BETWEEN BREATHER PIPE AND FUEL CONTOUR LEFT TO A 461 470 01 04
80
CLAMP HOSE TO FEEDLINE AND ENGINE
160
VALVE COMBINATION VALVE
165
GROMMET
165
SEALING STRIP COMBINATION VALVE, X 20407820121031
170
BRACKET AT VALVE
180
RIVET BRACKET TO CAB, 055661 903740
190
HOSE BRACKET. LOOM TIE
