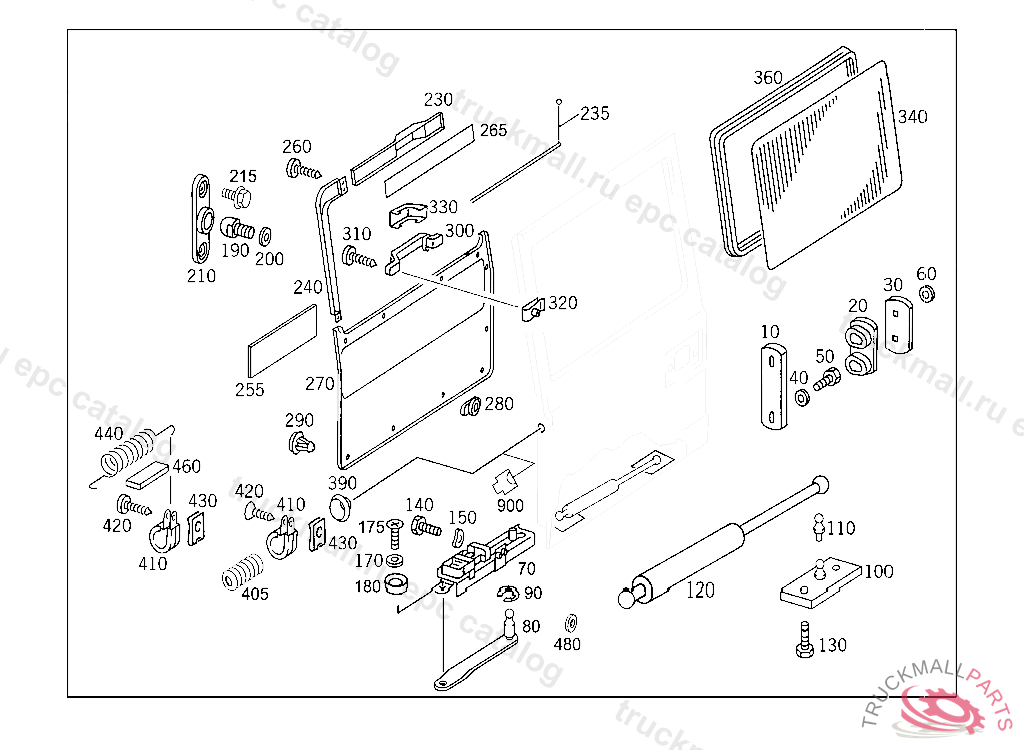

Поз.
Артикул
Описание
10
STRIKER REAR END DOOR
20
END PIECE ON BODY
30
PAD STRIKER, X 18197920091009
40
FITTED WASHER
50
SCREW STRAINER
60
WASHER EXHAUST MUFFLER TO STRAP
60
WASHER PUMP TO CONSOLE
70
ADJUSTER REAR PANEL DOOR
80
CLAMP REAR PANEL DOOR
90
LOCK PLATE LEVER TO BRACKET
100
PLATE PNEUMATIC SPRING
110
BALL STUD. BALL PIVOT
120
SHOCK ABSORBER REAR PANEL DOOR, X 20407820121031
130
SCREW DOOR HANDLE M 6X12
140
SCREW DOOR HANDLE M 6X12
150
SPRING WASHER LICENSE PLATE TO BRACKET
150
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
170
WASHER , Replaced By: A1109900940
175
SCREW LEVER TO REAR END CENTRAL PART, Replaced By: N000965006014
175
SCREW SWITCH TO FLOOR PLATE M6X16,5 220373
175
SCREW BELT ADJUSTMENT M6X16
180
COUNTERSUNK WASHER
190
BALL PIVOT REAR PANEL DOOR
200
WASHER EXHAUST MUFFLER TO STRAP
200
WASHER PUMP TO CONSOLE
210
BRACKET REAR PANEL DOOR
215
SCREW REAR PANEL DOOR PILLAR
230
PANELING REAR PANEL DOOR,TOP CENTRAL
235
RUBBER SEAL REAR PANEL DOOR,TOP CENTRAL 280 MM, ORDER BY THE METER
240
PANELING REAR PANEL DOOR,TOP RIGHT
240
PANELING REAR PANEL DOOR,TOP LEFT, 9051QFT463A0654 BLACK
255
SOUNDPROOFING PANELLING TO REAR PANEL DOOR, X 20407820121031
260
SHEET METAL SCREW MODULE TO HOUSING
265
ADHESIVE TAPE APPARATUS PLATE TO REAR PANEL, LENGTH AVAILABLE: 20000 MM
270
TRIM REAR DOOR
270
TRIM REAR DOOR
270
TRIM REAR DOOR
270
TRIM REAR DOOR
290
TRIM CLIP PANELLING TO REAR PANEL DOOR
290
MOUNTING CLAMP COVERING TO BRACKET
300
HANDLE REAR PANEL DOOR, INSIDE
310
SCREW COMPRESSED AIR LINE TO BRACKET
310
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
310
HEXALOBULAR BOLT BRACKET TO CONSOLE M6X16,V 224423
320
LOCK
330
COVER RIGHT
330
COVER LEFT
340
GLASS PANE HEAT-ABSORBING
340
GLASS PANE HEAT-ABSORBING
340
GLASS PANE HEAT-ABSORBING, 20140311
340
GLASS PANE HEAT-ABSORBING
360
WEATHERSTRIP REAR WINDOW PANE
390
GROMMET CLOCK
405
HOSE CABLE PASSAGE
410
CABLE STRAP LINE MOUNTING 5 X 300 MM
410
CLAMP LINE MOUNTING 15-18 MM,V 207570
420
TAPPING SCREW. SCREW , Replaced By: N000000000512
420
TAPPING SCREW. SCREW
430
LOCK INTAKE SCOOP TO FENDER
440
SPRING LEFT CUSHION FRAME
460
INSULATION CONTACT SPIRAL
480
WASHER P.T.O. TO TRANSMISSION
480
WASHER RADIATOR TO RUBBER MOUNTING
900
PIN BUSHING HOUSING BIPOLAR
