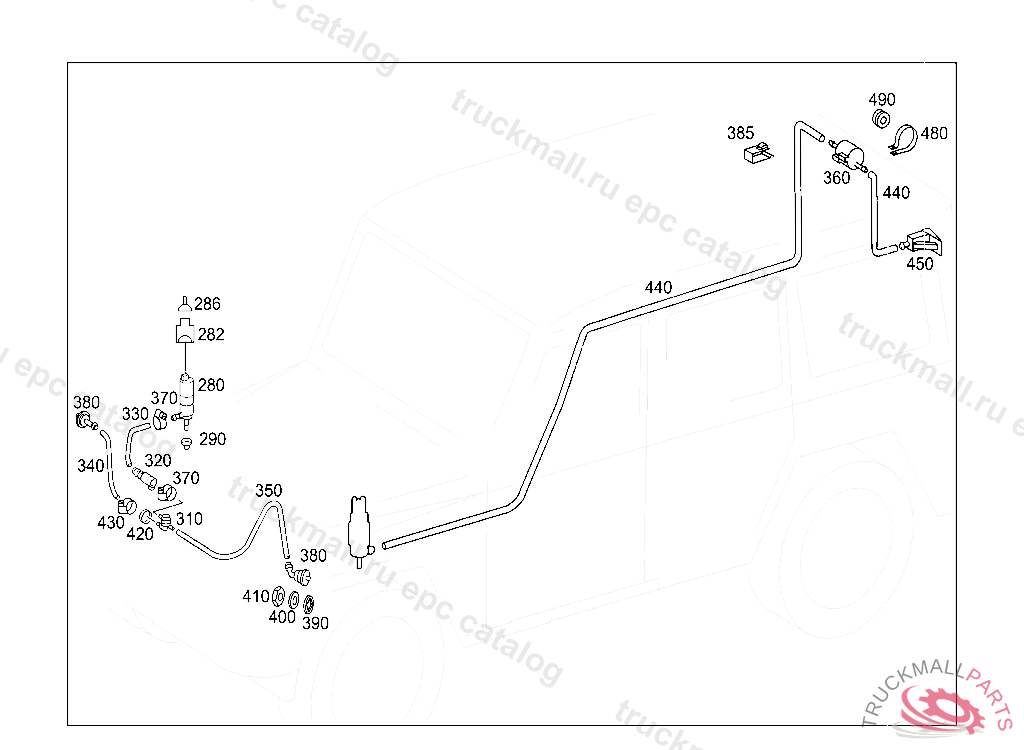

Поз.
Артикул
Описание
280
PUMP HEADLAMP CLEANING SYSTEM
282
PIN BUSHING HOUSING WINDSHIELD WASHER PUMP,2-POLE, A 698508 X 012426 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE TO A 698507, X 012425 WITH CODE 809
286
WIRE SEAL
286
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
286
REP.SET CONTACT. CABLE HARNESS
290
GROMMET FROM PUMP INTO RESERVOIR
310
VALVE BETWEEN PUMP AND NOZZLE
320
CLUTCH TELESCOPIC NOZZLE, HCS
330
HOSE BETWEEN VALVE AND RIGHT NOZZLE, ORDER BY THE METER
340
HOSE BETWEEN VALVE AND RIGHT NOZZLE, ORDER BY THE METER
350
HOSE BETWEEN VALVE AND RIGHT NOZZLE, ORDER BY THE METER
360
VALVE ENGINE HOOD BRACKET,REAR
370
CLAMP
380
NOZZLE HEADLAMP WIPER/WASHER
385
CLIP CABLE HARNESS TO ROOF RAIL
390
WASHER HEADLAMP WIPER/WASHER
400
SHIM. FITTED WASHER AS REQUIRED 0.50 MM
410
NUT HEADLAMP WIPER/WASHER
420
SEALING STRIP BATTERY MOUNTING
430
HOSE CLAMP FUEL LINE TO SENDER UNIT
430
CLAMP VALVE
440
HOSE FROM RIGHT NOZZLE TO CHECK VALVE 900 MM
450
NOZZLE REAR PANE WASHER
480
CLAMP VALVE
490
GROMMET HAND BRAKE VALVE BLEEDING,4 665938
