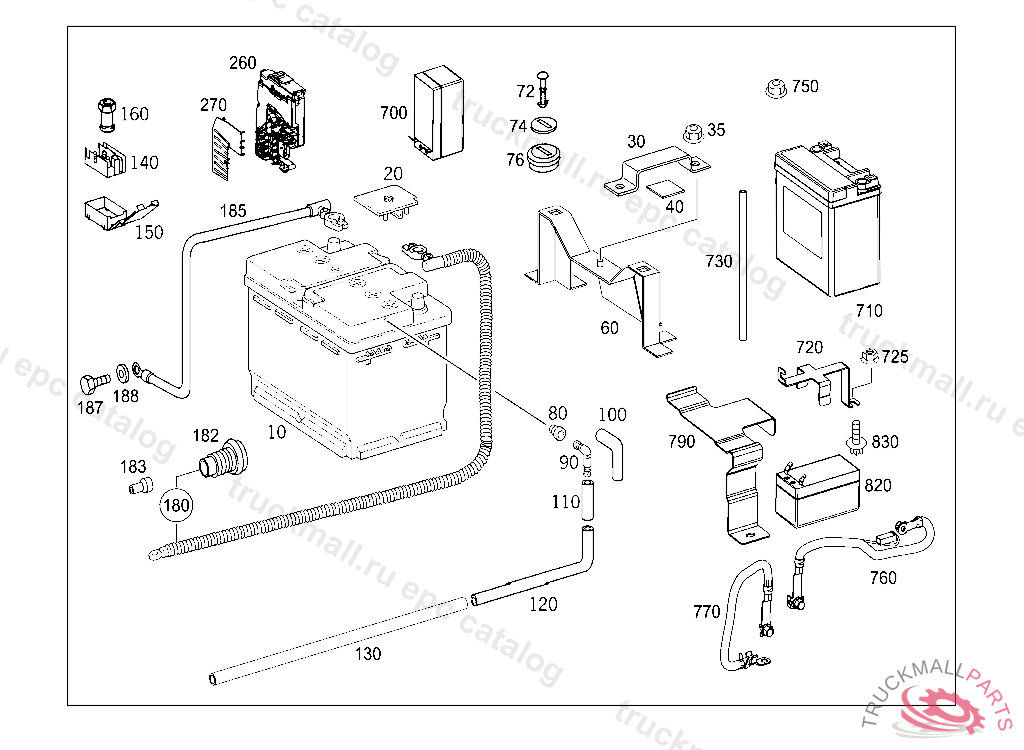

Поз.
Артикул
Описание
10
BATTERY FILLED 12V/95AH
20
BOOT POS. POLE
30
ANGLE BATTERY FASTENING
35
NUT , Replaced By: N913023006001
40
BASE , Replaced By: A0009838910
60
ANGLE MOUNTING FOR BATTERY COVER AND BATTERY
72
PIN
74
FUSE. LOCK
76
CATCH. FASTENER
80
STOP PLUG. PLUG ON BATTERY,LATERALLY
90
ELBOW FITTING. DISTRIBUTOR
100
HOSE
110
PLASTIC PIPE RISING PIPE 4X6 MM
120
HOSE VENTING FOR EXHAUST-GAS TURBOCHARGER VALVE 35 MM, ORDER BY THE METER
130
PLASTIC PIPE RISING PIPE 4X6 MM
140
CABLE CONNECTOR BATTERY CABLE TO FRAME
150
CAP BATTERY CABLE TO FRAME
160
NUT BATTERY CABLE TO CABLE CONNECTOR
180
CABLE HARNESS FROM BATTERY TO BATTERY TERMINAL POINT 2700 MM
180
BATTERY CABLE FROM BATTERY TO BATTERY TERMINAL POINT
180
BATTERY CABLE FROM BATTERY TO BATTERY TERMINAL POINT
182
GROMMET STARTING CABLE
185
GROUND STRAP GROUND LEAD FROM BATTERY TO BODY
185
GROUND LINE GROUND LEAD FROM BATTERY TO BODY
187
SCREW BRACKET TO CROSS CONNECTION STRUT
188
WASHER PUMP TO CONSOLE
188
WASHER EXHAUST MUFFLER TO STRAP
260
FUSE BOX ENGINE COMPARTMENT,RIGHT
260
FUSE BOX ENGINE COMPARTMENT,RIGHT
270
FUSE COVER FUSE BOX
270
FUSE COVER FUSE BOX
700
BATTERY BATTERY BACKUP 1.2AH, A 01175020070731808
710
AUXILIARY BATTERY12V-12AH
710
AUXILIARY BATTERY12V-12AH, Replaced By: A0019822708
720
BRACKET BATTERY FASTENING
725
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
730
PLASTIC PIPE RISING PIPE 4X6 MM
750
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
760
ELECTRICAL WIRING HARNESS START/STOP FUNCTION
770
GROUND LINE START/STOP FUNCTION
790
ATTACHMENT ANGLE BRACKET ADDITIONAL BATTERY
820
BATTERY BATTERY BACKUP 1.2AH, A 01175020070731808
830
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
