Mercedes A4632701041 - ДЕРЖАТЕЛЬ

G65 AMG 463.274

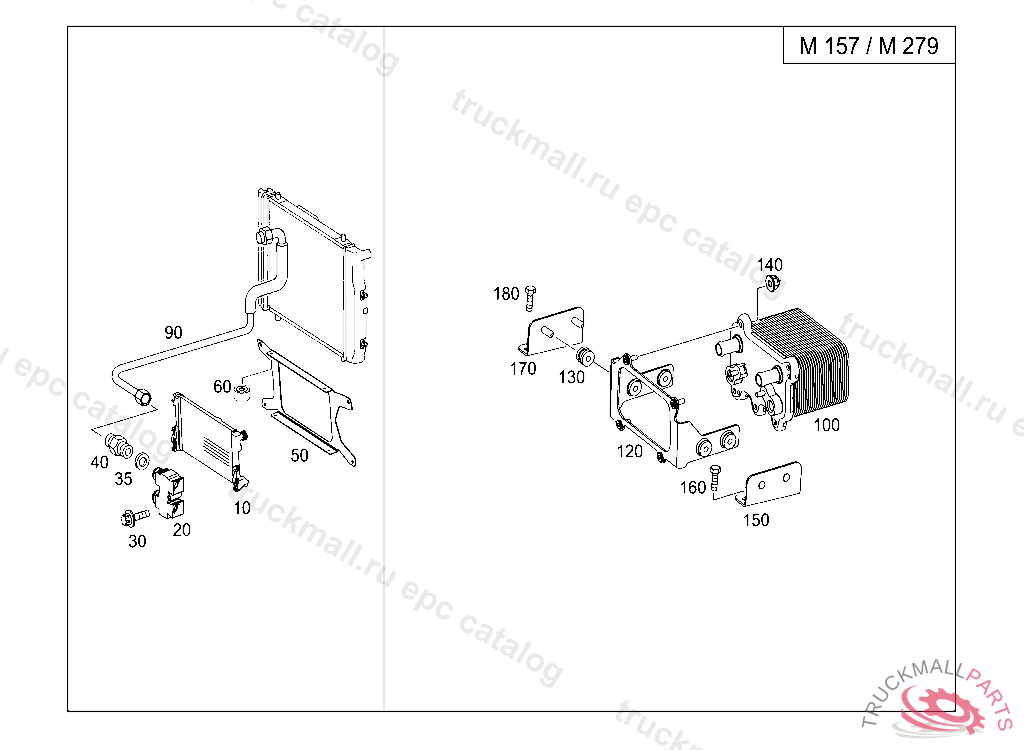

50 RADIATOR - 600 TRANSMISSION COOLING IL. 1

Поз.
Артикул
Описание
50
A4635006931
BRACKET TRANSMISSION OIL COOLER
50
A4632701041
BRACKET TRANSMISSION OIL COOLER, X 18800720101222
60
A8339970381
FEED-THROUGH GROMMET. GROMMET WIRE CABLE TO BRACKET, UP TO IDENT NO.: 240106 EXCEPT FOR:237252,237255,237256,239954,240087500001-556499
100
A1975000800
OIL COOLER LEFT
120
A4635005931
BRACKET HEAT EXCHANGER
130
A1409971781
GROMMET OIL COOLER TO BRACKET
140
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
150
A4635006031
BRACKET AT FRAME, LEFT
160
N000000003765
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
170
A4635006131
BRACKET AT FRAME,RIGHT
180
N000000003765
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
