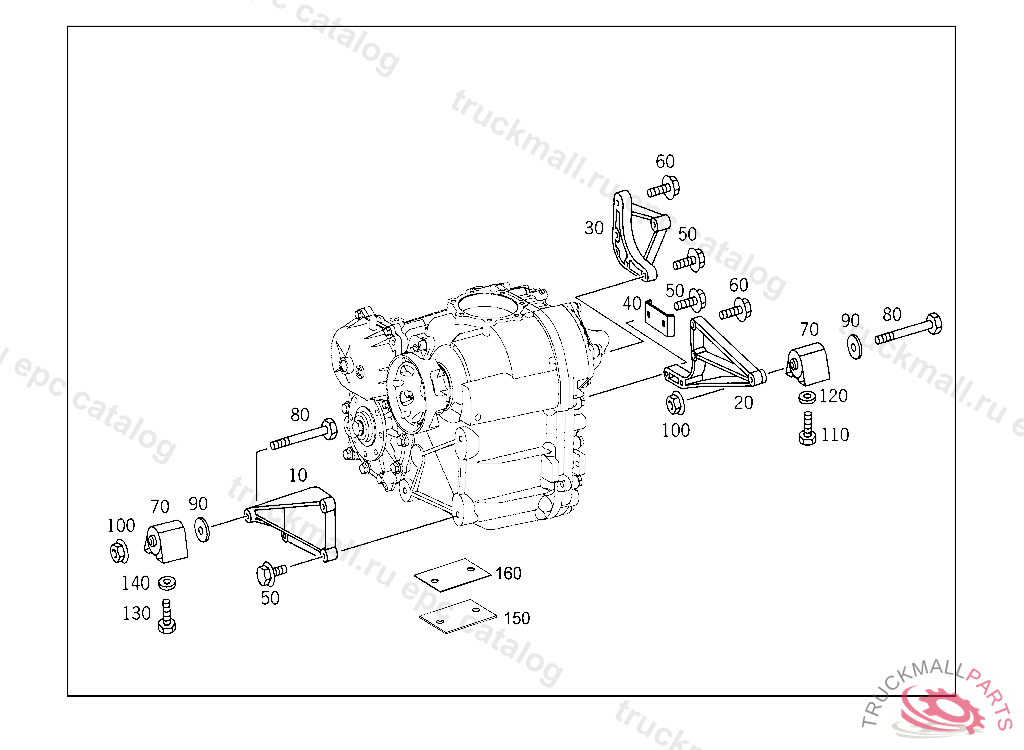

Поз.
Артикул
Описание
10
SUPPORT TRANSFER CASE,FRONT
20
SUPPORT TO TRANSFER CASE REAR LEFT
30
SUPPORT TO TRANSFER CASE REAR RIGHT
40
BRACKET TRANSFER CASE
50
SCREW PLATE TO FRAME M 10X45
60
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
70
BEARING FRONT
70
BEARING REAR RIGHT
70
BEARING REAR LEFT
80
HEXAGON HEAD BOLT BEARING TO SUPPORT REAR RIGHT M12X1,5X140
90
THRUST WASHER BEARING TO SUPPORT REAR RIGHT
100
NUT BRACKET TO SIDE MEMBER M12X1.5
110
SCREW PIPE CLAMP
120
WASHER INTERMEDIATE BEARING TO FRAME
130
SCREW BRACKET TO CROSS CONNECTION STRUT
140
WASHER INTERMEDIATE BEARING TO FRAME
150
SPACER FRONT FRAME AREA
160
SPACER FRAME TO BODY
