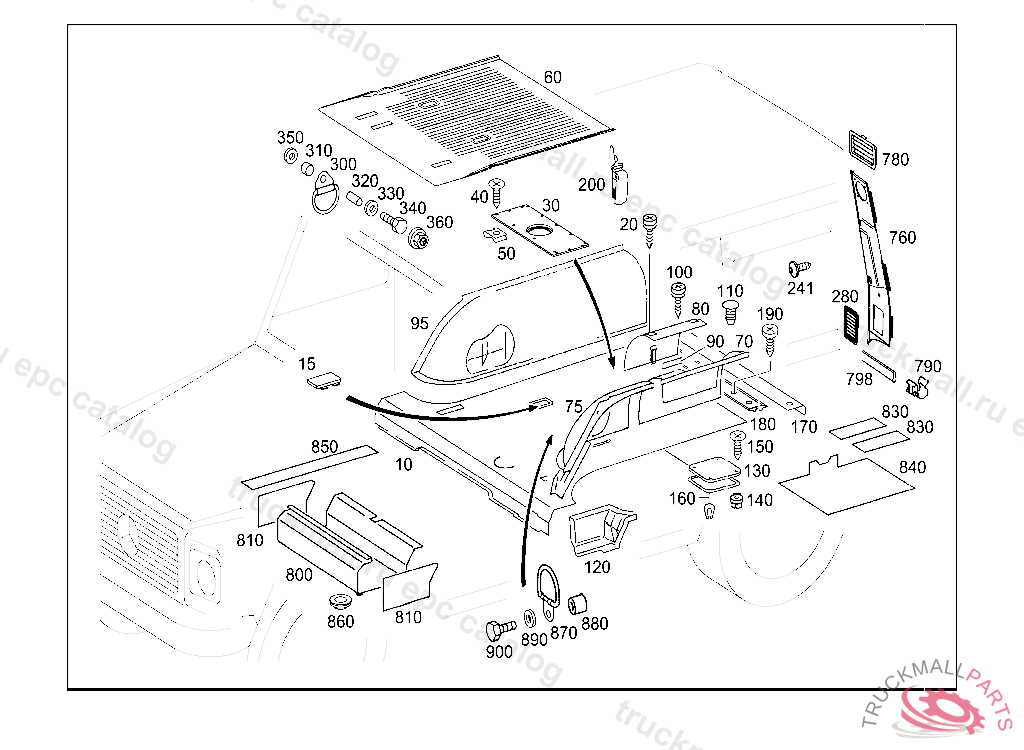

Поз.
Артикул
Описание
10
LINING REAR, 7088029 QFT463A0310 ANTHRACITE
10
COVER TRUNK FLOOR REAR, 7088029 QFT463A0310 ANTHRACITE
10
LINING REAR, X 17946620081219 7088029 QFT463A0310 ANTHRACITE
10
COVER TRUNK FLOOR REAR, 7088029 QFT463A0310 ANTHRACITE
10
LINING REAR, X 16854820061031 7088029 QFT463A0310 ANTHRACITE
10
LINING REAR, X 16854820061031 7088029 QFT463A0310 ANTHRACITE
15
COVER REAR SEAT TO FLOOR
20
TAPPING SCREW BRACKET TO SUPPORT
30
RETAINING PLATE REAR FLOOR FOR SUBWOOFER SPEAKER
40
TAPPING SCREW CONTROL UNIT TO FIRE WALL
50
LOCK FUEL LINE
60
COVER TRUNK FLOOR REAR
60
LINING LOADING COMPARTMENT RUBBER MAT, TO BE ADAPTED DURING ASSEMBLY
60
COVER TRUNK FLOOR LOADING COMPARTMENT RUBBER MAT
70
LINING LEFT REAR WHEELHOUSE, X 16854820061031 7088030 QFT463A0310 ANTHRACITE
75
LINING LEFT FRONT WHEELHOUSE, X 16854820061031 7088019 QFT463A0310 ANTHRACITE
80
COVER TO CLOSE WHEEL ARCH,REAR LEFT
90
MOUNTING STRIP , ORDER BY THE METER
95
LINING RIGHT REAR WHEELHOUSE, X 16854820061031 7088029 QFT463A0310 ANTHRACITE
100
HEXALOBULAR BOLT TIME-LAG RELAY M5X12
110
PLUG COVERING TO PARTITION PANEL,CENTER
120
LINING REAR RIGHT, 7088029 QFT463A0310 ANTHRACITE
120
LINING REAR LEFT, 7088039 QFT463A0310 ANTHRACITE
130
SERVICING COVER FUEL GAUGE, X 18602620101018 9051QFT463A0003 BLACK
140
LOCK , Replaced By: A1239942045
150
TAPPING SCREW SIDE REFLECTORS,K 057592
160
EDGE GUARD AT BRACKET, ORDER BY THE METER
170
COVER STRIP REAR FLOORING COVER RAIL
170
RAIL , X 19216520110526 9051QFT463A0003 BLACK
180
RAIL REAR FLOORING COVER RAIL
190
SHEET METAL SCREW BRACKET TO SUPPORT
190
TAPPING SCREW CONTROL UNIT TO FIRE WALL
200
BRACKET LOADING COMPARTMENT RUBBER MAT
300
BRACKET ANCHORING LUG,357677620100831
310
SPACER BUSH BRACKET,LEFT AND RIGHT
320
SPACER TUBE EXHAUST PIPE REAR ON BATTERY CASE
330
WASHER EXHAUST MUFFLER TO STRAP
330
WASHER PUMP TO CONSOLE
340
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
350
SPRING WASHER LEVER MOUNTING
360
CAP TO RIGHT DOOR HINGE SCREW
760
PANELING REAR PANEL,LATERAL LEFT, X 17946620081219 9045032033QFT463A0314 BLACK
760
PANELING REAR PANEL,LATERAL RIGHT, 9045022023QFT463A0314 BLACK
760
PANELING REAR PANEL,LATERAL RIGHT, 9045022023QFT463A0314 BLACK
760
PANELING REAR PANEL,LATERAL LEFT, X 16166520050428 9045032033QFT463A0314 BLACK
780
COVER , 9051QFT461A3010 BLACK
790
CLIP
798
COVER REAR END PANELLING 3, 9051QFT463A0306 BLACK
798
EDGE GUARD REAR END PANELLING
800
PANELING REAR SEAT BOX,INSIDE
810
PANELING REAR SEAT FRAME, LEFT
810
PANELING REAR SEAT FRAME, RIGHT
830
PANELING BOTTOM
840
PANELING BOTTOM
850
SOUNDPROOFING ON TOP OF BODYWORK
860
EXPANSION PLUG AT FRONT PANEL PILLAR,RIGHT
870
BRACKET CARGO RETAINERS-CROSS MEMBER
880
SPACER DISK BRACKET TO WHEELHOUSE
890
WASHER PUMP TO CONSOLE
890
WASHER EXHAUST MUFFLER TO STRAP
900
SCREW BRACKET TO CROSS CONNECTION STRUT
