Mercedes A0229972248 - Кольцо уплотнительное щупа АКПП

G 320 CDI USA/CND FROM CHASSIS 144226 463.343

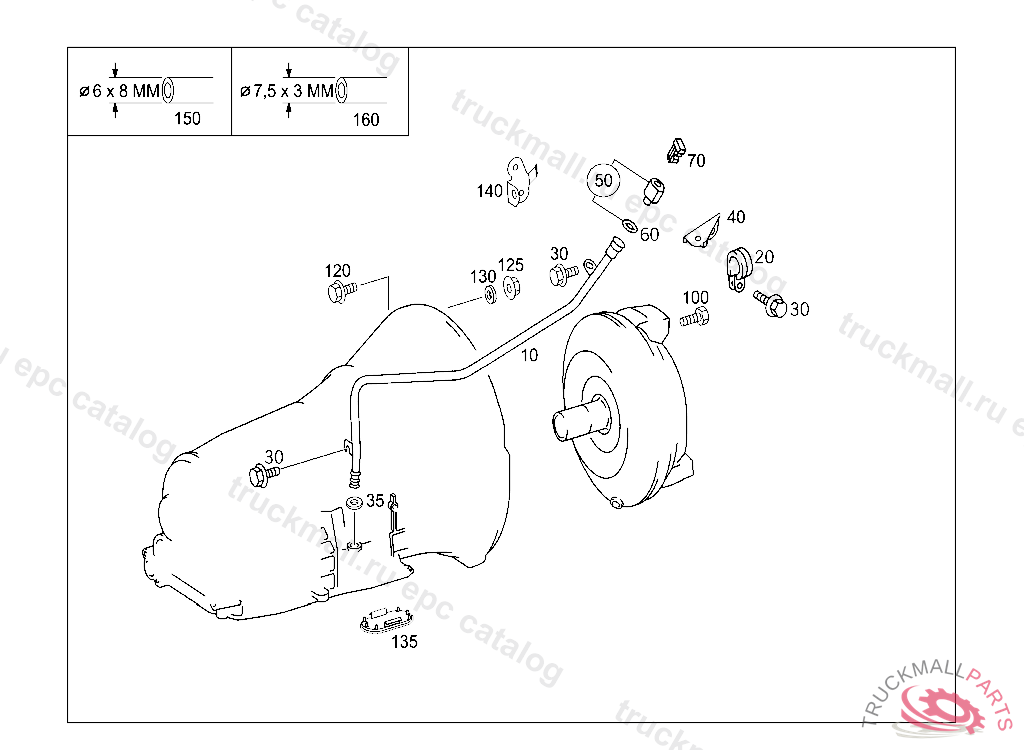

27 MERCEDES-BENZ AUTOMATIC TRANSMISSION - 125 ATTACHED PARTS FOR TRANSMISSION, OIL FILLER PIPE

Поз.
Артикул
Описание
20
N916016012200
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
30
N910106006004
HEXAGON HEAD BOLT
35
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
50
A1402700091
COVER OIL FILLER PIPE
60
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
70
A1409910055
DOWEL PIN OIL FILLER PIPE
100
A0109904904
CAPSCREW W HEXAL. DRIVE DRIVE CONNECTION, ENGINE TO CONVERTER M10X34
100
A0079908804
BOLT DRIVE CONNECTION BETWEEN ENGINE AND TRANSMISSION M10X31, F 95500020070630
120
N910143010000
SCREW PLATE TO FRAME M 10X45
125
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
135
A0009983121
CAP CAP ASSEMBLY OPENING IN OIL PAN
140
A1642710140
BRACKET TRANSMISSION CASE TO CRANKCASE, X 16692520060531
