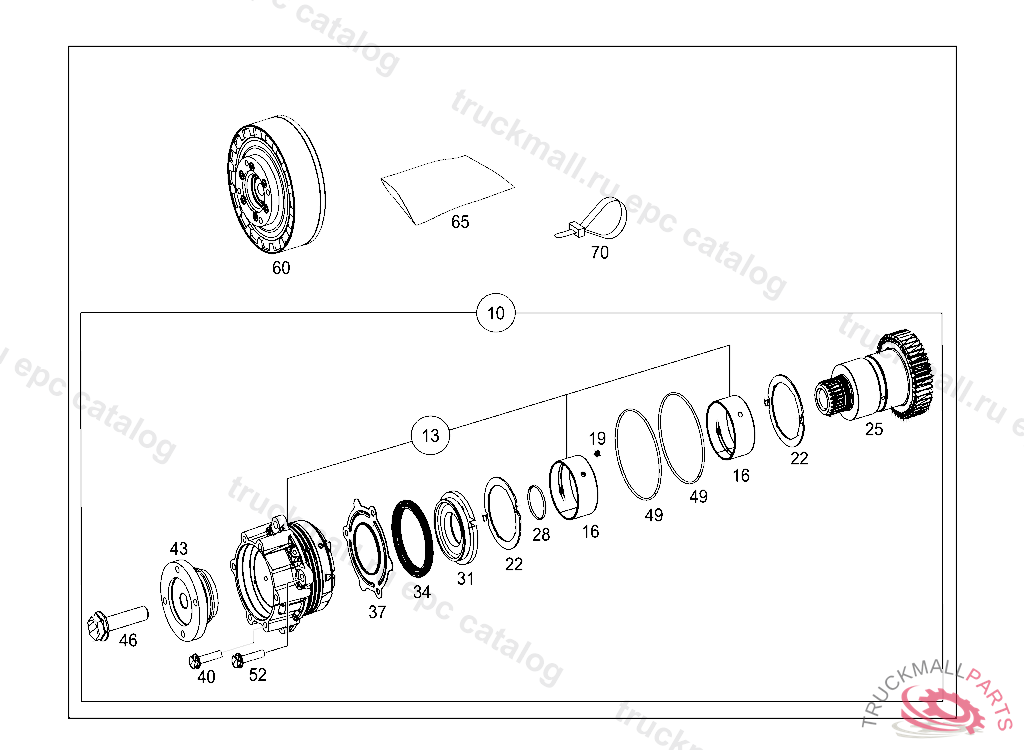

OM 471 LA PIERCE FIRE TRUCK - 471.914 - 23 SPECIAL INSTALLATIONS
Поз.
Артикул
Описание
10
POWER TAKE-OFF
10
POWER TAKE-OFF , Replaced By: A4712302323
13
FLANGED BLOCK HOUSING
16
BUSHING
19
PLUG EXHAUST SIDE
22
THRUST WASHER
25
DRIVE SHAFT
28
SEAL RING
31
THRUST BEARING RING
34
RADIAL SHAFT SEALING RING
37
CLOSING COVER
40
HEXALOBULAR BOLT AIR CLEANER TO BRACKET
43
DRIVE FLANGE
46
BOLT W FLANGE
49
O-RING
52
HEXAGON HEAD BOLT. SCREW BRACKET TO AIR INTAKE PIPE M 10X45
60
VIBRATION DAMPER
65
PROTECTIVE SLEEVE , NOT USED
70
CABLE TIE. LOOM TIE , Replaced By: A0019978490
