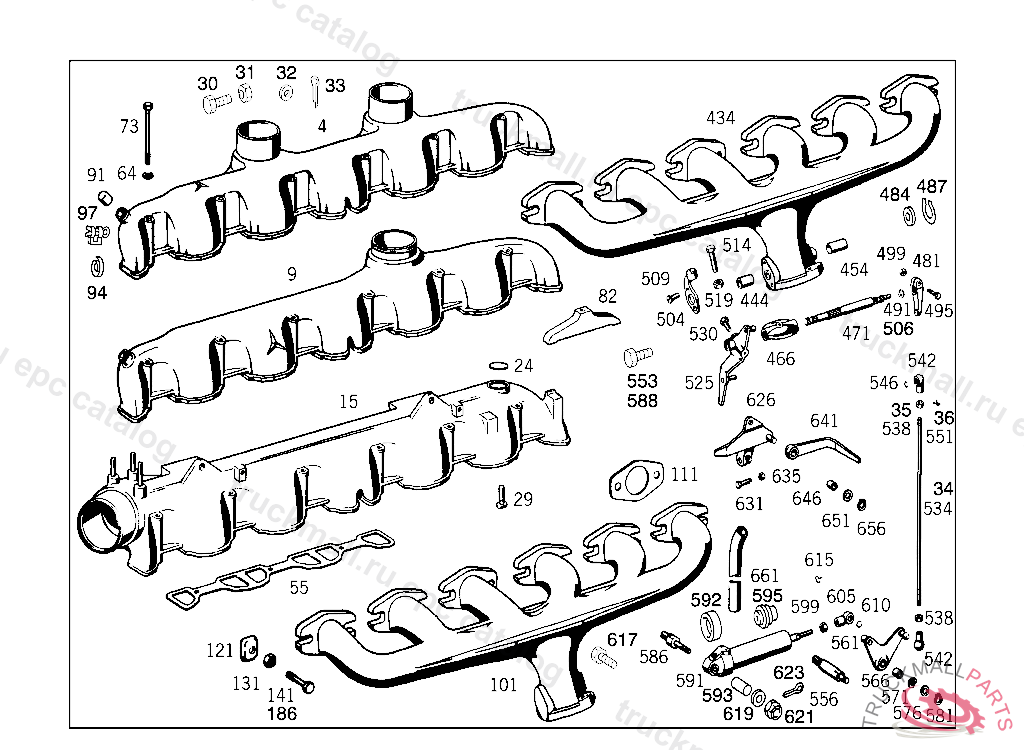

Поз.
Артикул
Описание
55
GASKET INTAKE MANIFOLD
64
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
64
SPRING WASHER , Replaced By: N000137008212
73
SCREW , Replaced By: N914126008002
73
SCREW , Replaced By: N910105008024
73
HEXAGON HEAD BOLT. SCREW REAR EXHAUST PIPE TO MUFFLER M8 X 110 MM
91
PLUG , UP TO ENGINE 9503594 USED WITH ONE-CYLINDER AIR COMPRESSOR
94
STRAP165 MM, UP TO CHASSIS 772045 EXCEPT FOR:500000-599999 ORDER BY THE METER
97
LOOM TIE HAND PUMP
101
EXHAUST MANIFOLD
111
SEALING FLANGE EXHAUST MANIFOLD TO CYLINDER HEAD
111
GASKET EXHAUST MANIFOLD TO CYLINDER HEAD
111
SEALING FLANGE , Replaced By: A3551420260
111
SEALING FLANGE , Replaced By: A3451420080
111
SEALING FLANGE , Replaced By: A3451420080
121
CLAMPING PIECE , 027882
131
NUT
141
SCREW
434
EXHAUST MANIFOLD
434
EXHAUST MANIFOLD , Replaced By: A3461401409
444
BUSHING , Replaced By: A4031440450
444
BUSHING
444
BUSHING INCLUDED IN REPAIR KIT
454
BUSHING
454
BUSHING
466
THROTTLE VALVE , 910,912-918 8502380 973-975 8502380
471
SHAFT , 910,912-918 8502381 973-975 8502381
471
SHAFT , Replaced By: A3261440414, +001A3461440013
471
SHAFT , 910,912-918 8502380 973-975 8502380
481
LEVER , 910,912-918 8502380 973-975 8502380
484
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
487
LOCK RING , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
491
FITTED WASHER
495
SCREW ,014049
499
NUT IN CASE OF SUBSEQUENT INSTALLATION
499
NUT , Replaced By: N304032005005
504
CONSOLE
504
CONSOLE , TO 326 140 01 09
506
SPACER TUBE
509
SCREW , TO 326 140 01 09
514
SCREW SHOCK ABSORBER TO CONSOLE
514
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
514
SCREW ,938 089545
514
SCREW , Replaced By: N304017008042
514
SCREW , Replaced By: N304017008016
519
NUT
525
LEVER ,910,912-918,973-975 8502381 TO 326 140 01 09
525
LEVER
530
SCREW CAB FLOOR COVERING M 6X25
530
SCREW
534
PULL ROD CONTROL
538
NUT BALL PIVOT TO LEVER
542
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
546
SNAP RING SPRING-LOADED PUSH ROD
551
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
553
SCREW SUPPORT TO FENDER
553
SCREW , Replaced By: N304017008018
556
PIN , 035612
561
LEVER , 035611, Replaced By: A3551400245, +001A3551440274, +001N000433015002, +001N000471015000
561
LEVER , 035612
561
LEVER , Replaced By: A3551400345
566
BUSHING
566
BUSHING
571
SPRING WASHER STEERING COLUMN BRACKET TO CAB
576
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
576
WASHER VIBRATION ABSORBER TO BRACKET
576
WASHER , Replaced By: N000433010510
581
LOCK RING , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB DISCONTINUED,PART IS NO LONGER REQUIRED
581
LOCK RING SHIFT LEVER TO PIVOT PIN
586
PIN BRAKE CYLINDER AND ANGULAR LEVER TO OIL PAN
588
SCREW SUPPORT TO FENDER
588
SCREW , Replaced By: N304017008018
591
CYLINDER
591
CYLINDER CLUTCH OPERATION, COMPONENT PARTS NOT AVAILABLE
592
GROOVED RING
593
BUSHINGTO 001 260 03 63
595
GUIDE ,938 089545
599
NUT
605
BALL SOCKET ROD TO BALL PIVOT
610
SNAP RING
615
SECURING CLIP. CIRCLIP
617
SCREW VALVE TO BRACKET
619
WASHER , Replaced By: N000125008443
619
WASHER EXHAUST MUFFLER TO STRAP
621
NUT FROM SHIFT LEVER TO P.T.O.
623
COTTER PIN BALL PIVOT TO STEERING ARM
626
LEVER
631
SCREW ,014049
635
NUT IN CASE OF SUBSEQUENT INSTALLATION
635
NUT , Replaced By: N304032005005
641
LEVER , 910,912-918 8502381 973-975 8502381
646
BUSHING
651
WASHER VIBRATION ABSORBER TO BRACKET
651
WASHER , Replaced By: N000433010510
656
LOCK RING , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB DISCONTINUED,PART IS NO LONGER REQUIRED
661
HOSE
999
CYLINDER , Replaced By: A0004300126, +001A3269910022, +001N000934012001
999
BUSHING
999
SEAL RING
999
SPRING
999
CUP
999
SEAL RING
999
CUP
999
SEAL RING
999
SEALING CORD , Replaced By: A0069970245
999
LEVER ,8502380, Replaced By: A3044300724, +001A3044300823, +001A3044300624
999
LEVER ,8502380, Replaced By: A3044300624, +001A3044300823, +001A3044300724
999
LEVER , Replaced By: A3044300724
999
LEVER , 910,912-918 8502380 973-975 8502380, Replaced By: A3044300823, +001A3044300624, +001A3044300724
999
SUPPORT
999
CONSOLE
999
CLAMPING PIECE , 027881 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3461420012, +001A3463020222, +001A3469900719
999
LEVER , Replaced By: A3151400525
999
VALVE , Replaced By: A0004300026
999
EXHAUST MANIFOLD , Replaced By: A3261401209, +001A3551440013, +001A3551440014, +001A3264300011, +001A3264300223, +001A3269901301, +001N000931006033, +002N000933008014, +001N000934006000
999
INTAKE MANIFOLD ,9503594, Replaced By: A3261401901, +001A3261300001, +003A3261340301, +001A0029979282, +004N900262009100, +004N900263009000, +002N900271022023
999
INTAKE MANIFOLD , 914,915 9503595-017515 974 9503595-017668, Replaced By: A3261401701, +001A3260940391, +002A0019972790
999
THROTTLE VALVE , 910.912-917,941-946,952 UP TO ENGINE 046303,911,918 UP TO ENGINE 049368, Replaced By: A3551440013, +001A3551440014
999
PIN , 035611, Replaced By: A3551440274, +001A3551400345, +001N000433015002, +001N000471015000
999
SCREW , Replaced By: A3469900719, +001A3461420012, +001A3463020222
999
THROTTLE VALVE , 910.912-917,941-946,952 UP TO ENGINE 046303,911,918 UP TO ENGINE 049368, Replaced By: A3551440013, +001A3551440014
999
THROTTLE VALVE , 910,912-917,941-946,952 FROM ENGINE 046304,911,918 FROM ENGINE 049369 ORDER REPAIR KIT 355 586 00 14
999
THROTTLE VALVE , ORDER 355 586 00 14 REPAIR KIT
