Поз.
Артикул
Описание

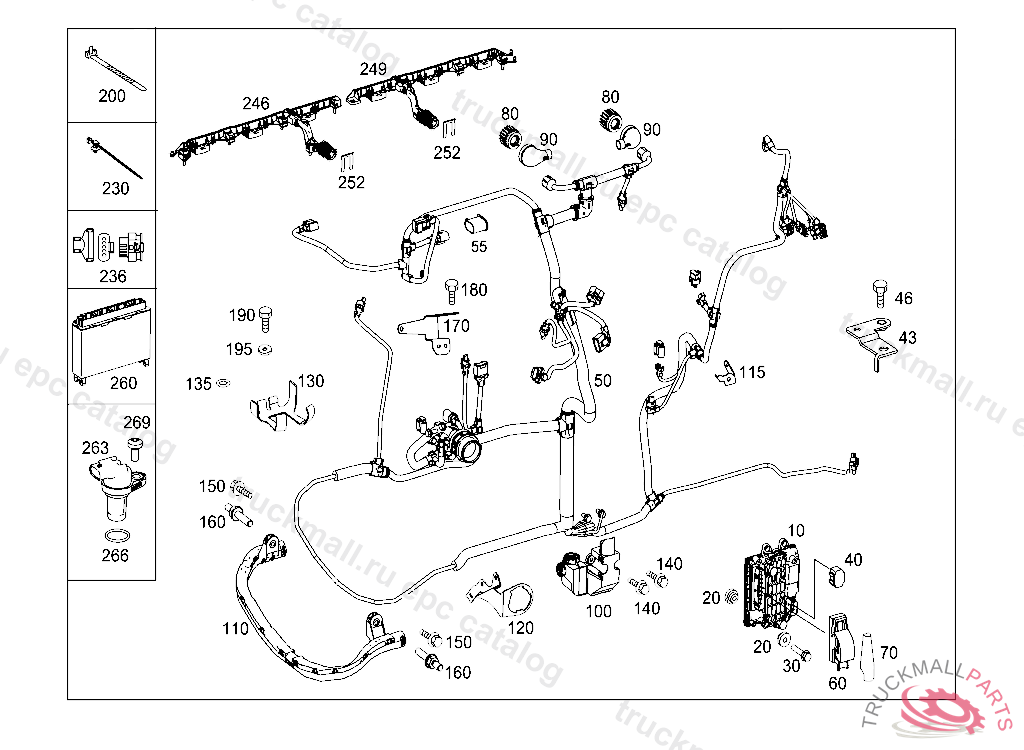

10
CTRL. UNIT ENGINE CONTROL , REMAN PART - WHEN YOU ORDER THIS PART PLEASE ADD THE PREFIX"R" IN FRONT OF THE PART NO.
10
CTRL. UNIT ENGINE CONTROL , Replaced By: A0004467635
10
CTRL. UNIT ENGINE CONTROL , Replaced By: A0014464735
10
ECTS. ENGINE MANAGEMENT , Replaced By: A0004466035
20
RUBBER BUFFER. RUBBER RING CONTROL MODULE ON CRANKCASE
30
HEXAGON HEAD BOLT. SCREW CABLE HARNESS TO BRACKET M8X40
40
EXPANSION PLUG. COVER CAP ON ENGINE CONTROL UNIT FOR CONNECTOR: 21 POL.
43
BRACKET CABLE STRAIN RELIEF
46
SCREW , Replaced By: N000000000436
50
ELECTRICAL WIRING HARNESS ENGINE CABLE HARNESS, FROM ENG.S0103500
50
ELECTRICAL WIRING HARNESS ENGINE CABLE HARNESS, TO ENGINE S0103499
50
ELECTRICAL WIRING HARNESS ENGINE CABLE HARNESS, Replaced By: A4711503433
50
ELECTRICAL WIRING HARNESS ENGINE CABLE HARNESS, Replaced By: A4711503233
55
DUST PROTECTION CAP 3-PIN PLUG
60
RECEPTACLE HOUSING
70
COVER CAP FOR PLUG: 120 POL.
80
RECEPTACLE HOUSING
90
COVER CAP
100
CABLE DUCT
110
CABLE DUCT
115
BRACKET
120
BRACKET
130
MOUNTING BRACKET
135
SEAL RING
140
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
150
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
160
STUD BOLT
170
BRACKET 10-PIN VEHICLE HANDOVER CONNECTOR BRACKET
180
SCREW STOP TO BATTERY CASE
190
SCREW PLUGTO 000 553 03 05,000 553 18 05,
195
SEAL RING
195
SEALING RING
200
LOOM TIE , Replaced By: A0019978390
200
CABLE TIE310X5MM
230
LOOM TIE187 X 3.6 MM
236
CONNECTOR BIPOLAR
246
ELECTRICAL WIRING HARNESS FRONT CYLINDER HEAD
246
ELECTRICAL WIRING HARNESS FRONT CYLINDER HEAD
246
ELECTRICAL WIRING HARNESS FRONT CYLINDER HEAD, Replaced By: A4711508233
249
ELECTRICAL WIRING HARNESS CYLINDER HEAD,REAR, Replaced By: A4711508333
249
ELECTRICAL WIRING HARNESS CYLINDER HEAD,REAR
249
ELECTRICAL WIRING HARNESS CYLINDER HEAD,REAR
252
CLAMPING BRACKET CYLINDER HEAD CABLE SET AT CAMSHAFTHOUSING
260
ELECTRONICS CPC IDLING SPEED POWERTRAIN CONTROL/NAFTA
263
POSITION SENSOR CAMSHAFT POSITION SENDER UNIT
266
SEAL RING
269
SCREW STOPPING MAGNET TO BRACKET, FROM ENGINE 345109 YEAR OF MANUFACTURE 1994
999
DUST PROTECTION CAP
999
ELECTRICAL LINE
