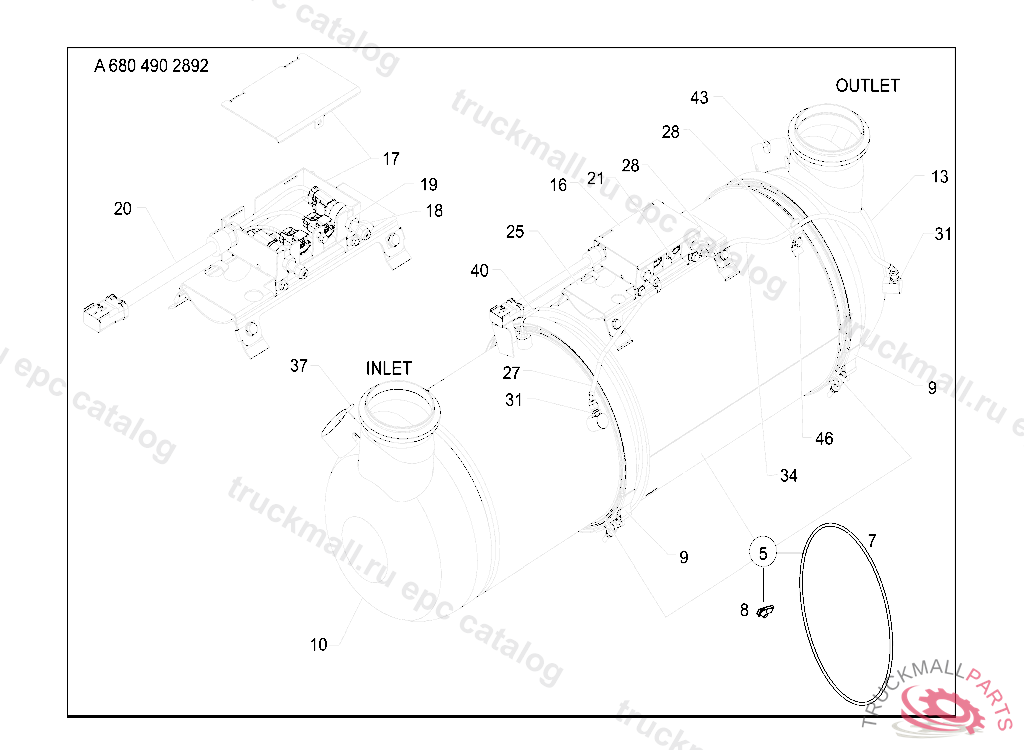

OM 472 LA STERLING - 472.902 - 49 EXHAUST GAS AFTERTREATMENT

5

PARTS KIT , EXCHANGE PART - WHEN YOU ORDER THIS PART PLEASE ADD THE PREFIX"E"IN FRONT OF THE PART NO.

7

SEALING RING

8

CLIP-TYPE NUT

9

PIPE CLAMPV-BAND

10

OXIDATION CAT. CONVERTER INLET DIESEL OXIDATION CATALYST (DOC), REMAN PART - WHEN YOU ORDER THIS PART PLEASE ADD THE PREFIX"R" IN FRONT OF THE PART NO.

13

TUBE ADAPTER OUTLET

16

SENSOR HOUSING ASSEMBLY

17

SENSOR HOUSING WITH COVER

18

PRESSURE SENSOR

19

HEXAGON NUT

20

ELECTRICAL WIRING HARNESSDPF

21

HEXAGON HEAD BOLT

25

BRACKET

27

HIGH-PRESSURE HOSE

28

BOLT AND WASHER ASSY.

31

CONNECTION FITTING

34

HIGH-PRESSURE HOSE

37

PRESSURE A TEMP. SENSORSENSOR TEMP M14 DOC IN

40

TEMPERATURE SENSORSCR OUT

43

TEMPERATURE SENSOR

46

MOUNTING CLAMP

999

CABLE STRAP

999

EXHAUST AFTERTREATMENT FOR EXHAUST AFTERTREATMENT
