Поз.
Артикул
Описание
5
LINE FASTENERWIRE PASS THRU
10
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
15
BRACKETBRACKET SENSOR BOX 2HV
20
CONNECTION FITTING
25
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
30
HEXAGON HEAD BOLT
35
COVER
40
SENSOR HOUSING
45
PRESSURE SENSORDOC IN (INCLUDES O-RING A0249973245)
50
PRESSURE SENSORDPF OUT(INCLUDES O-RING A0249973345)
55
ELECTRICAL WIRING HARNESS
60
PIPE CLAMP
65
TS PRESSURE LINE
70
PRESSURE LINE HOSE
75
SPRING HOSE CLAMP
80
PRESSURE LINETUBE ASSEMBLY DOC PRESSURE IN
85
PRESSURE LINE
90
CONNECTING PIECE
95
TEMPERATURE SENSORM14 DOC IN
100
TEMPERATURE SENSORM12 DOC OUT
105
PRESSURE A TEMP. SENSORSENSOR TEMP M14 DOC IN
110
OXIDATION CAT. CONVERTER , EXCHANGE PART - WHEN YOU ORDER THIS PART PLEASE ADD THE PREFIX"E"IN FRONT OF THE PART NO.
115
DIESEL PARTICULATE FILTERDPF MODULE ASSEMBLY, EXCHANGE PART - WHEN YOU ORDER THIS PART PLEASE ADD THE PREFIX"E"IN FRONT OF THE PART NO.
120
TS PIPE CLAMPPIPE CLAMP V BAND
125
SEALING RING
130
FUNNEL EXHAUST OUTLET
135
SCREW PLUG, FILLING CHARGE AIR PRESSURE M20X1.5
999
O-RINGDPF OUT
999
O-RING
999
CABLE TIEWIRE TIE
999

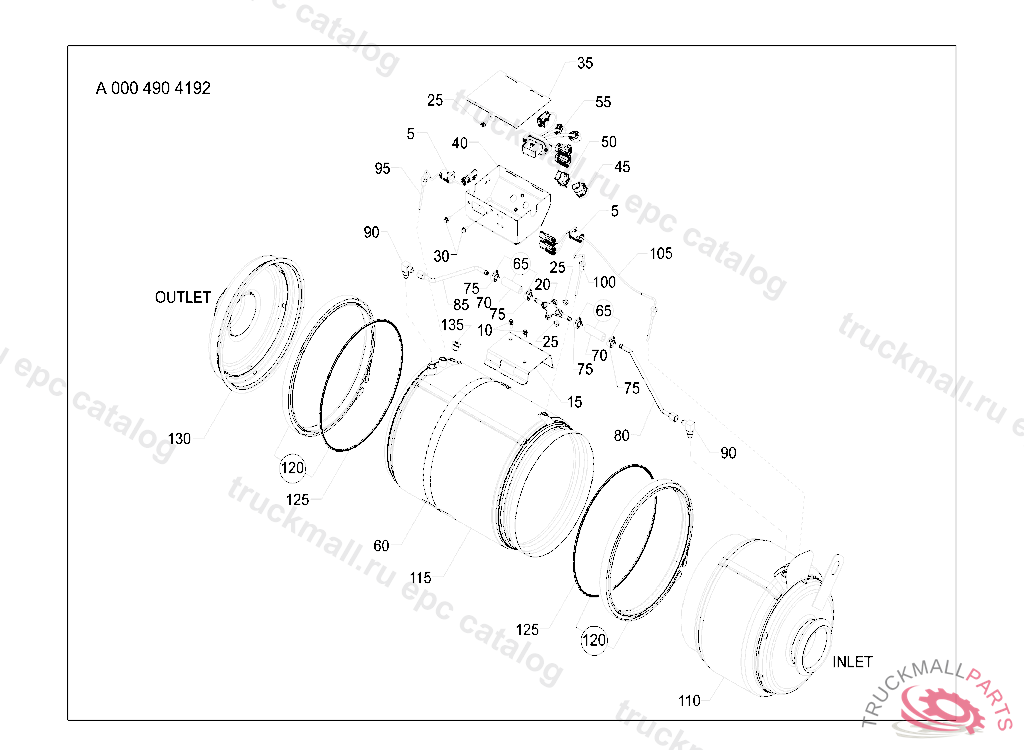

EXHAUST AFTERTREATMENT
