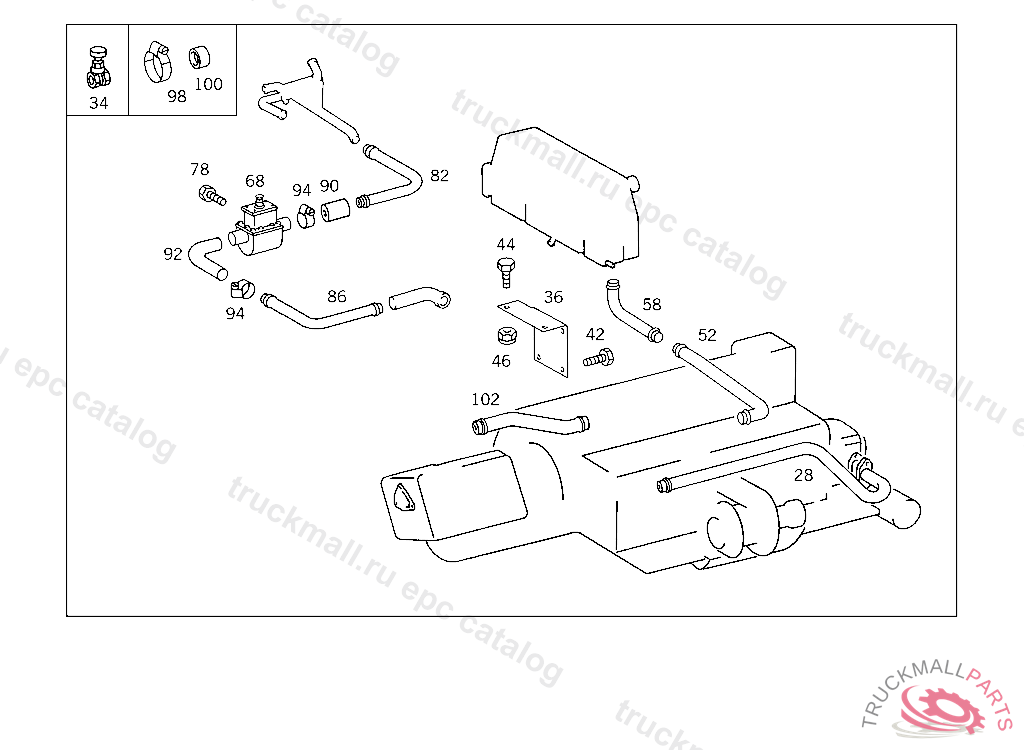

Поз.
Артикул
Описание
28
LINE FROM RETURN LINE TO WATER PUMP
34
VALVE
36
BRACKET
42
SCREW BRACKET TO CROSS CONNECTION STRUT
42
SCREW , Replaced By: N304017008034
44
SCREW FLANGE TO SHAFT M12X50
46
NUT END PIECE TO EXHAUST PIPE
52
COOLING WATER PIPE BREATHER LINE TO FILTER
58
COOLING WATER PIPE FROM BREATHER LINE TO EXPANSION TANK
68
PRE-HEATER
78
SCREW CAB FLOOR COVERING M 6X25
82
COOLING WATER PIPE FROM BUBBLE SEPARATOR TO ENGINE
86
COOLING WATER PIPE FROM BUBBLE SEPARATOR TO ENGINE
90
HOSE RETURN LINE TO THERMOSTAT, ORDER BY THE METER
92
HOSE FEED, ENGINE
94
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
98
CLAMP
100
HOSE
102
LINE COOLING WATER FEED TOWARD OIL COOLER
999
COOLING WATER PIPE HEATING CONNECTION LOCK,085701
999
LINE COOLING WATER RETURN LINE
999
LINE COOLING WATER RETURN LINE
999
COOLING WATER PIPE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE 15X1.5X1335,076194 ALSO INSTALLED IN:075800, 075853, 075889
999
COOLING WATER PIPE FROM BUBBLE SEPARATOR TO ENGINE
999
COOLING WATER PIPE FROM COMPRESSOR TO EXPANSION TANK
999
FILTER
999
FILTER
999
LINE
999
SEPARATOR (BUBBLE SEPARATOR)
999
SEPARATOR , Replaced By: A3575000969
999
SENDER UNIT HEATING THERMOSTAT
999
ELECTRIC CABLE AUXILIARY HEATER ELECTRIC CABLE
999
WARNING INDICATOR TELL-TALE LAMP
999
HEATER HEATING PIPE, TO BE ADAPTED DURING ASSEMBLY
999
GASKET PREHEATER
