Mercedes N912004008102 - Кольцо стопорное

O 405 GNTD 612.604

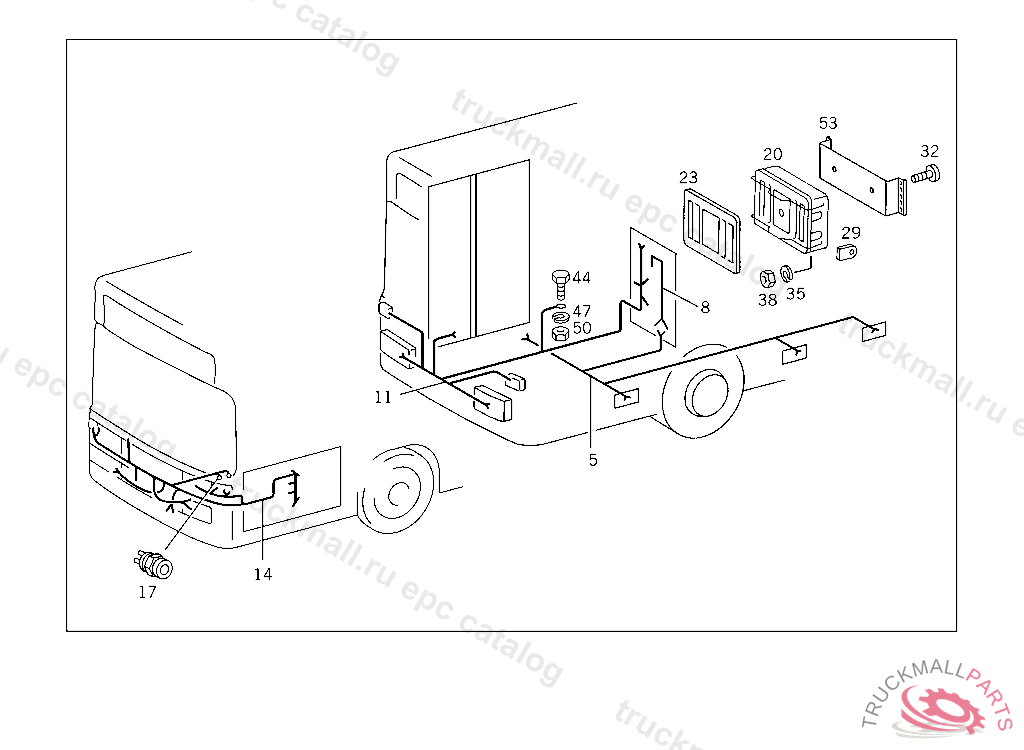

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 250 FRONT LIGHTING CABLES AND HORN

Поз.
Артикул
Описание
11
A3574406610
CABLE HARNESS FROM ELECTR.COMPARTMT. PLUG-CONNECTION TO SWITCH & UNDERFLOOR PLUG-CONNECTION
20
A0015465441
CABLE CONNECTOR FRAME,REAR
23
A0005460581
COVERING
29
A0009872844
EXPANSION PLUG TO LOCK TRAILER-PLUG-SOCKET OUTLET
32
N007985005149
SCREW JUNCTION BOX TO BRACKET
35
N912004005103
LOCK WASHER BRACKET TO STEERING COLUMN END
38
N304032005005
NUT IN CASE OF SUBSEQUENT INSTALLATION
38
N304032005002
NUT , Replaced By: N304032005005
44
N000933008147
SCREW , Replaced By: N304017008021
44
N304017008021
SCREW PIPE CLAMP
47
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
50
N304032008006
NUT
