Поз.
Артикул
Описание

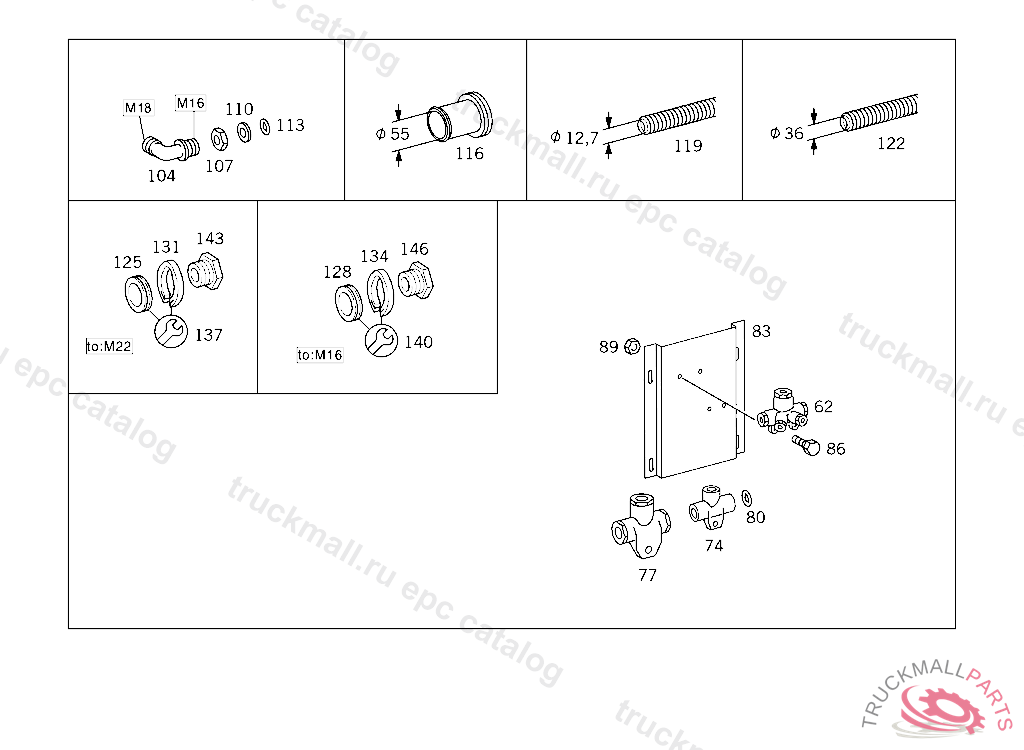

62
DISTRIBUTOR CENTRAL AXLE
74
DISTRIBUTOR FRONT AXLE BRAKE CIRCUIT,5 411349
77
DISTRIBUTOR SECONDARY CONSUMING UNITS,084610
77
DISTRIBUTOR REAR AXLE
80
SEAL RING LINE CONNECTION
83
BRACKET 3/2-WAY VALVE
86
SCREW , Replaced By: N304017006016
86
SCREW PUMP TO BRACKET
86
SCREW EXHAUST MUFFLER TO STRAP
89
NUT , Replaced By: N913004006001
89
NUT PUMP TO BRACKET
89
NUT STRAP TO BRACKET
104
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
107
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
110
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
113
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
119
INSULATING HOSE HOSE LINE PROTECTION 13 MM, ORDER BY THE METER
125
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
128
SEAL RING , Replaced By: A0009940747
128
LOCK RING LINE CONNECTION
131
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
134
LOCK , Replaced By: A0009945448
134
LOCK LINE CONNECTION
137
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
140
REPAIR KIT , Replaced By: A0309971748
140
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
143
SCREW. UNION SCREW LINE CONNECTION
146
SCREW. UNION SCREW , Replaced By: A0009973734
146
SCREW. UNION SCREW LINE CONNECTION
