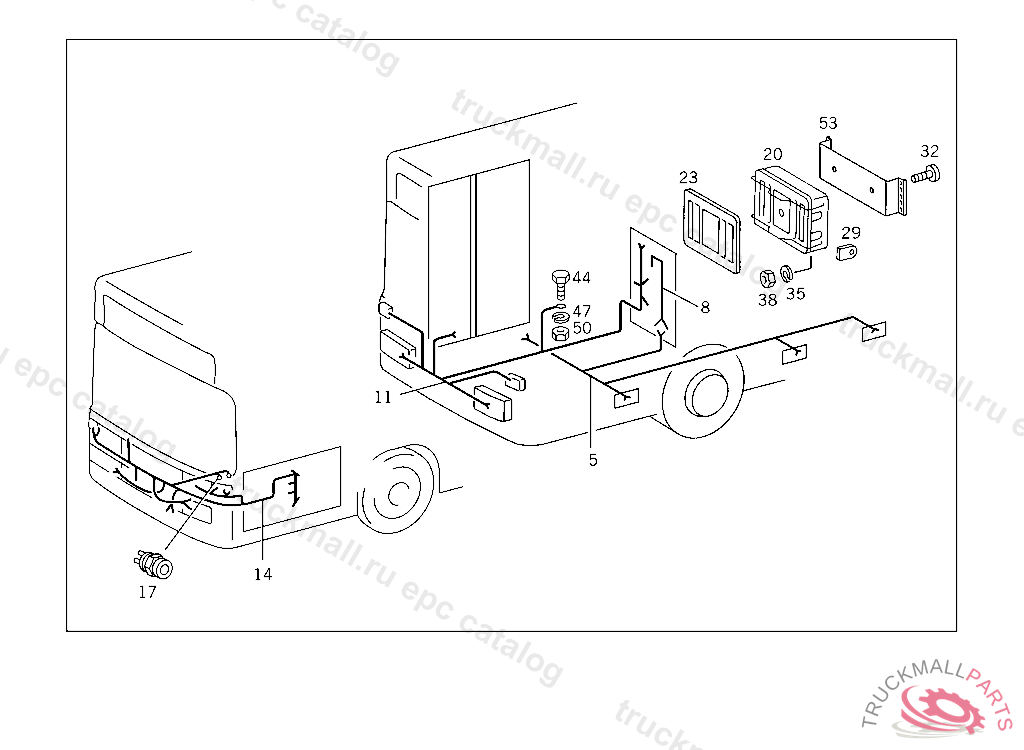

Поз.
Артикул
Описание
5
CABLE HARNESS SIDE MARKER LAMP
8
CABLE HARNESS CHARGING CURRENT DETECTION
11
CABLE HARNESS FROM ELECTR.COMPARTMT. PLUG-CONNECTION TO SWITCH & UNDERFLOOR PLUG-CONNECTION
20
CABLE CONNECTOR FRAME,REAR
23
COVERING
29
EXPANSION PLUG TO LOCK TRAILER-PLUG-SOCKET OUTLET
32
SCREW JUNCTION BOX TO BRACKET
35
LOCK WASHER BRACKET TO STEERING COLUMN END
38
NUT IN CASE OF SUBSEQUENT INSTALLATION
38
NUT , Replaced By: N304032005005
44
SCREW , Replaced By: N304017008021
44
SCREW PIPE CLAMP
47
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
50
NUT
