Главная
›
Mercedes
›
BUS
›
O350 TOURISMO E3 O 403-RHD EURO3
›
613.358
›
55 SPECIAL INSTALLATIONS
›
090 COMPRESSOR IL. 2
Mercedes A0008330096 - Unterlage

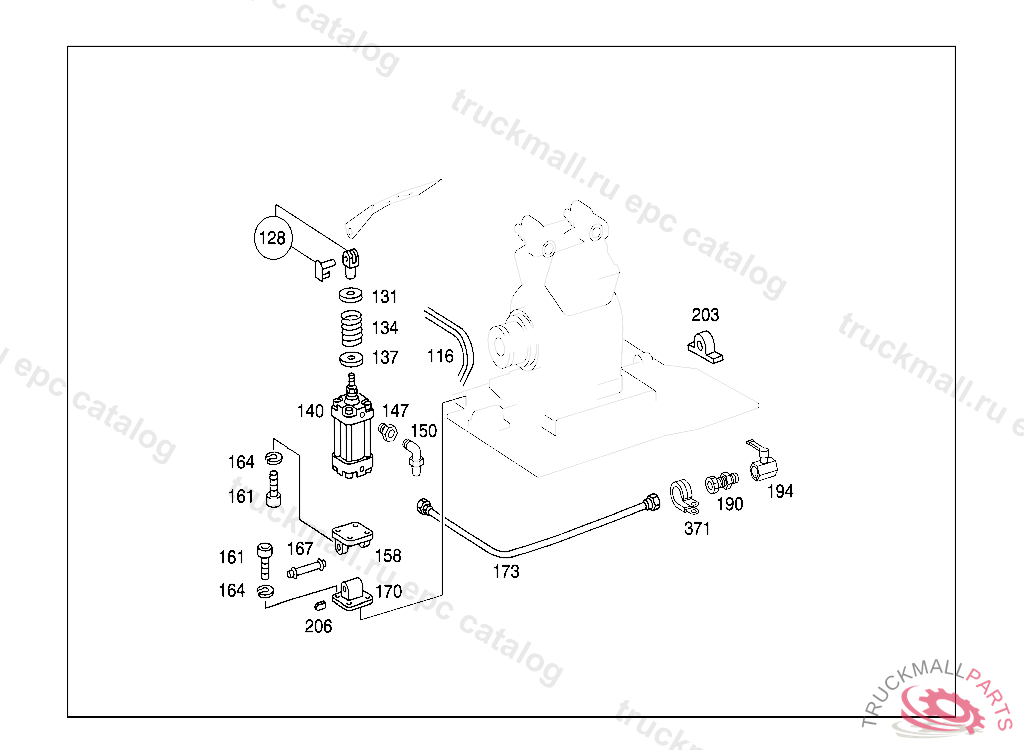

O350 TOURISMO E3 O 403-RHD EURO3 613.358
55 SPECIAL INSTALLATIONS - 090 COMPRESSOR IL. 2
Поз.
Артикул
Описание
116
A6139970092
V-BELT REFRIGERANT COMPRESSOR
128
A0008310021
FORK
131
A0008330082
WASHER
134
A0008330067
SPRING
137
A0008330182
WASHER
140
A0003200260
CYLINDER
147
A0008352651
ADAPTERTO A 629 830 25 60, A 000 130 95 15
150
A0008360425
PIPE SOCKET
158
A0008310056
CLAMP
161
A0008330071
SCREW
164
A0008330096
PAD
167
A0008330137
PIN
170
A0008350728
MOUNTING
173
A0259976482
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
190
A0008360525
PIPE SOCKET
194
A0019977835
PLUG (SHUT-OFF VALVE),232286
203
A0008350828
MOUNTING
206
A0009913468
KEY
371
A0009952502
CLAMP15 / 20 RSGU
999
A0008101212
BEARING DIA., 31X33,8MM
999
A0008301624
INTERMEDIATE PIECE PARTS KIT, TO BE ADAPTED DURING ASSEMBLY
999
A0008351088
GUIDE SIGNDEA SE 55
999
A0008351188
GUIDE SIGNR134A
999
A0018358498
SEAL42X36X1,5MM
999
N003861006007
GLAND , Replaced By: A0019901667
