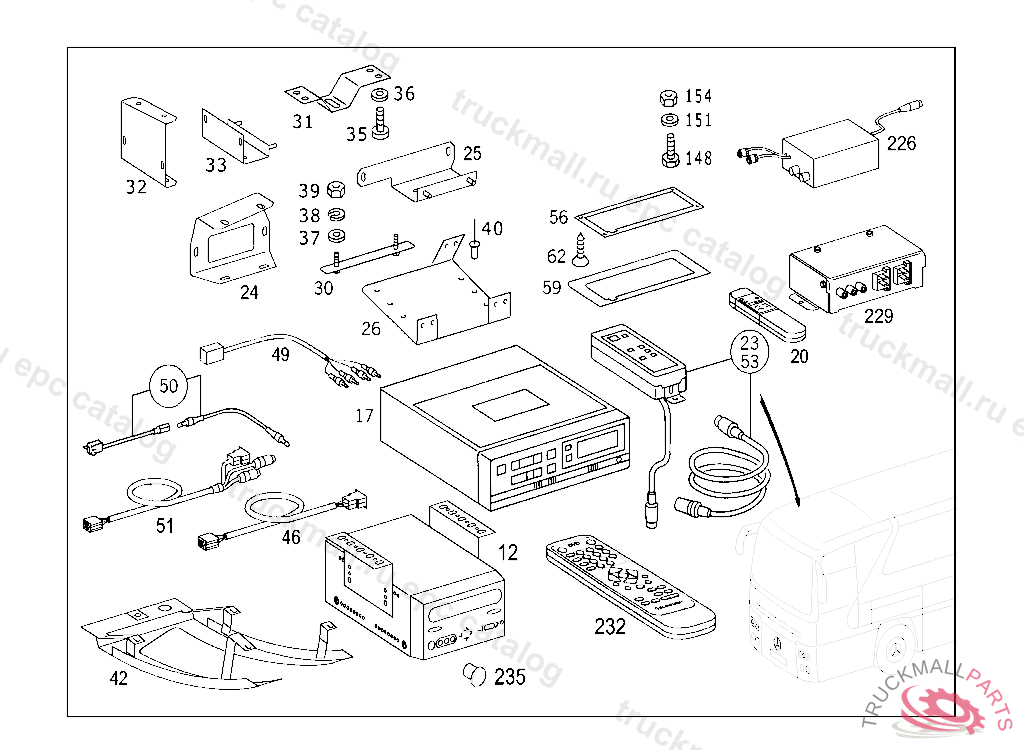

Mercedes A0018200735 - ZB BEDIENTEIL

O350 TOURISMO E3 O 403-RHD EURO3 613.358

82 ELECTRICAL SYSTEM - 800 VIDEO-TV SYSTEM,LOUDSPEAKERS IL. 1

Поз.
Артикул
Описание
12
A0048201289
DVD PLAYERDVP 01C
17
A0008270442
VIDEO RECORDER ,237069
17
A6138200389
VIDEO RECORDER
17
A6138200689
VIDEO PLAYER ,237068
17
A6138201789
VIDEO RECORDER
20
A0018203826
CONTROL UNIT REMOTE CONTROL TO A 613 820 03 89
23
A0018200735
REMOTE CONTROL
24
A6138202014
BRACKET
24
A6138202414
BRACKET
25
A6138202514
BRACKET
26
A6138100714
BRACKET
30
A6138102914
BRACKET
30
A6138102714
BRACKET
31
A6138270914
BRACKET VIDEO RECORDER,229092231953
32
A6138271414
BRACKET
33
A6138201714
BRACKET
35
N007985005125
SCREW , Replaced By: N007985005157
35
N007985005157
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
36
N000433005304
WASHER BOOT TO CAB FLOOR
37
N009021006103
WASHER , Replaced By: N009021006208
38
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
38
N000127006203
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
39
N304032006004
NUT SPRING-LOADED PUSH ROD
40
N007337004013
RIVET
42
A6138262814
BRACKET
46
A0008279104
ELECTRIC CABLE VIDEO-TV SYSTEM
49
A0008275204
ELECTRIC CABLE
50
A6138200713
ELECTRIC CABLE VIDEO-TV SYSTEM
51
A0008278004
ELECTRIC CABLE
53
A6138201289
RADIO ACCESSORIES REMOTE CONTROL
56
A6138140011
PLATE
59
A6138140111
PLATE
62
N007982002237
SHEET METAL SCREW CLAMP
148
N304017008009
SCREW. HEXAGON HEAD BOLT ON AIR INTAKE PIPE BRACKET M 8X16
151
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
154
N304032008006
NUT
226
A6138202489
AMPLIFIER VIDEO/SOUND
229
A0008213992
INSULATING HOSE
229
A0008270752
SWITCH
232
A0018209397
REMOTE CONTROLDVP 01C
235
A0118201810
LIGHT SENSORDVP 01C
999
A0005464827
DISTRIBUTOR
999
A0018203726
CONTROL UNIT REMOTE CONTROL TO A 613 820 02 89
999
A0038202615
ELECTRIC CABLE
999
A0128203704
ELECTRIC CABLE PARTS KIT
999
A6138202589
MAS SET" CLASSIC LINE "
999
A6138270514
BRACKET CENTRAL
