Mercedes A9019900130 - Болт

O350 TOURISMO E3 O 403-RHD EURO3 613.358

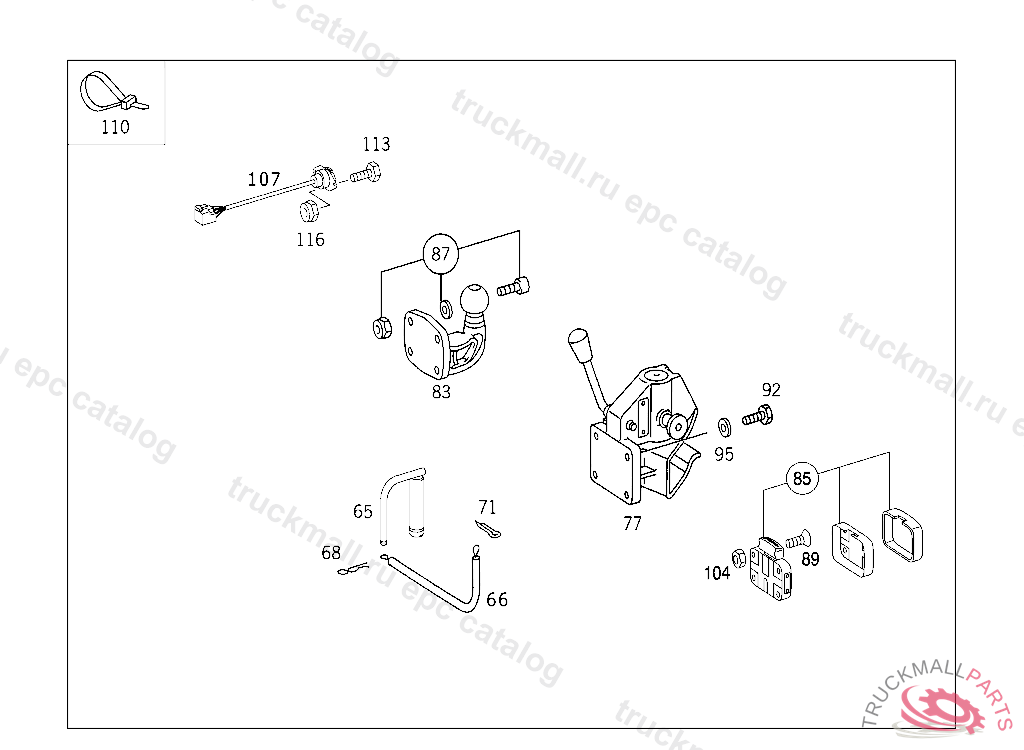

89 VEHICLE ACCESSORIES - 090 BATTERY MOUNTING,TOW COUPLING IL. 2

Поз.
Артикул
Описание
65
A6138900157
PIN
66
HXB3733100007
CABLE
68
HXB3739940060
LOCK
71
HXB3739900198
COTTER PIN , Replaced By: N000094003226
77
A0023156099
TRAILER COUPLING , Replaced By: A0023156199
83
A0033152399
TRAILER COUPLING REAR
85
A3560050489
ADAOTER VARIO BLOCK
87
A0009905323
TS SCREW, SPECIAL SHAPE TRAILER COUPLING TO FRAME END PLATE M10X50
87
A0008950171
SCREW TRAILER COUPLING TO REAR CROSS MEMBER M10X55
87
A0008950071
SCREW TRAILER COUPLING TO REAR CROSS MEMBER M10X60
87
A0008950371
SCREW PARTS KIT M 10 X 65
87
A0008950271
SCREW TRAILER COUPLING TO END PLATE M10X60
89
N007991010006
SCREW BRACKET MOUNTING
89
A9019900130
SCREWM 10X50
92
N000912010023
SCREW , Replaced By: N000912010225
92
N000912010212
SCREW ROLLER ON SUPPORT
95
A1169901140
WASHER BEARING BRACKET TO SIDE MEMBER
104
N913001010006
NUT COLD START SYSTEM TO BRACKET
107
A3565400181
PLUG SOCKET (TRAILER PLUG SOCKET)
107
A3015400107
CABLE HARNESS WITH TRAILER PLUG SOCKET
110
A3719977090
LOOM TIE365 MM
113
N000933008108
SCREW INTERMEDIATE BEARING TO BRACKET M 8X20
116
N913017008000
NUT COVERING TO RAIL
999
N000125008445
WASHER PUMP TO CONSOLE
