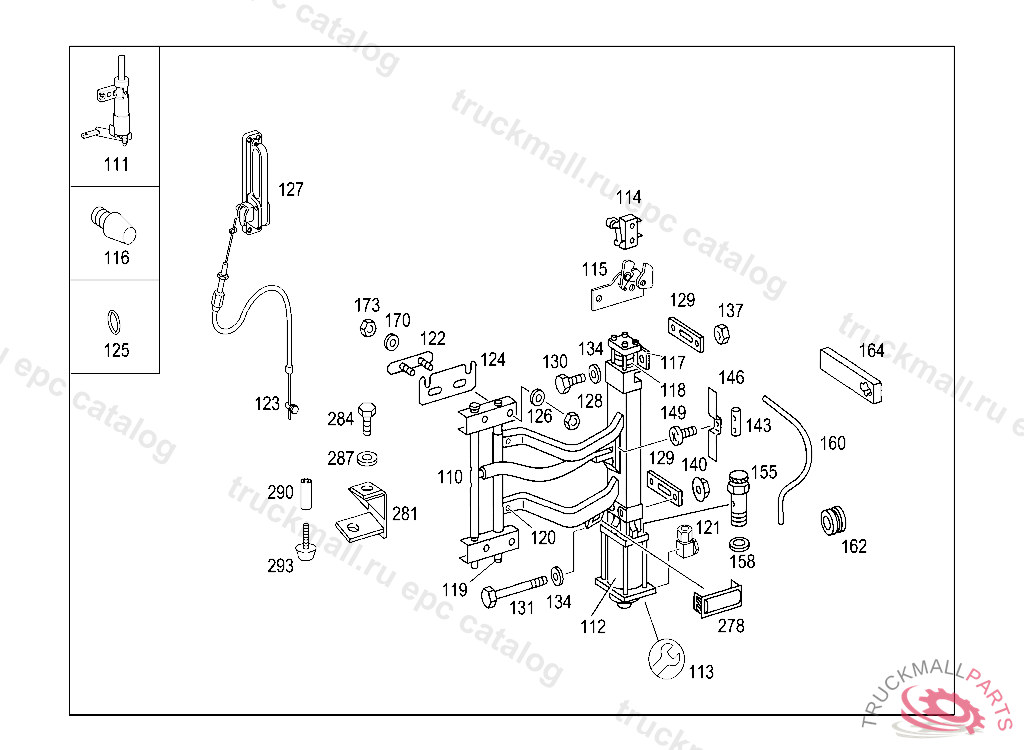

Поз.
Артикул
Описание
110
PILLAR SWIVEL BAR
110
PILLAR SWIVEL BAR
111
DOOR CYLINDER
112
DOOR CYLINDER
113
REPAIR KIT
114
VALVETO A 613 760 01 64
114
SWITCH BIPOLAR TO A 613 760 00 64
114
SWITCH (PRESSURE SWITCH)
114
SWITCH , Replaced By: A0068208610
115
FASTENERTO A 613 760 01 64
116
BUFFERTO A 613 760 00 64
117
BRACKETTO A 613 760 00 64
118
SPRINGTO A 613 760 00 64
119
PLUGTO A 613 760 00 64
120
CABLE GROMMETTO A 613 760 00 64
121
FITTINGTO A 613 760 00 64
122
BRACKET SWIVEL BAR,TOP
123
OPERATING MECHANISM
123
PULL , Replaced By: HXB3737660078
124
PLATE , Replaced By: A3567661819
124
PLATE SWIVEL BAR,TOP
125
RING
126
WASHER RADIATOR TO RUBBER MOUNTING
127
HANDLE , Replaced By: HXB3737660022
127
LOCK EMERGENCY COCK
128
NUT , Replaced By: N913023010002
128
NUT
129
PLATE SWIVEL BAR TO BODY
130
SCREW BRACKET TO SIDE MEMBER M10X35
130
SCREW REAR EXHAUST PIPE TO MUFFLER
131
HEXAGON HEAD BOLT MOUNTING,GAS CYLINDERS M10X110
131
SCREW SWIVEL BAR TO BODY M 10 X 110
134
WASHER RADIATOR TO RUBBER MOUNTING
134
WASHER P.T.O. TO TRANSMISSION
137
NUT
140
NUT COVERING TO CAB FIRE WALL
143
PIN
146
BRACKET
149
SCREW ELECTRIC CABLE TO FUSE BOX
155
VALVE (THROTTLE VALVE)
158
SEAL RING 3/2-WAY VALVE
158
SEAL RING LINE CONNECTION
160
HOSE1M, ORDER BY THE METER
162
GROMMET , Replaced By: A3129970581
164
BUFFER
170
WASHER RADIATOR TO RUBBER MOUNTING
173
NUT
278
INTERIOR LAMP
