O350 TOURISMO E3 O 403-RHD EURO3
›
613.358
›
52 SHEET METAL / AIR INTAKE
›

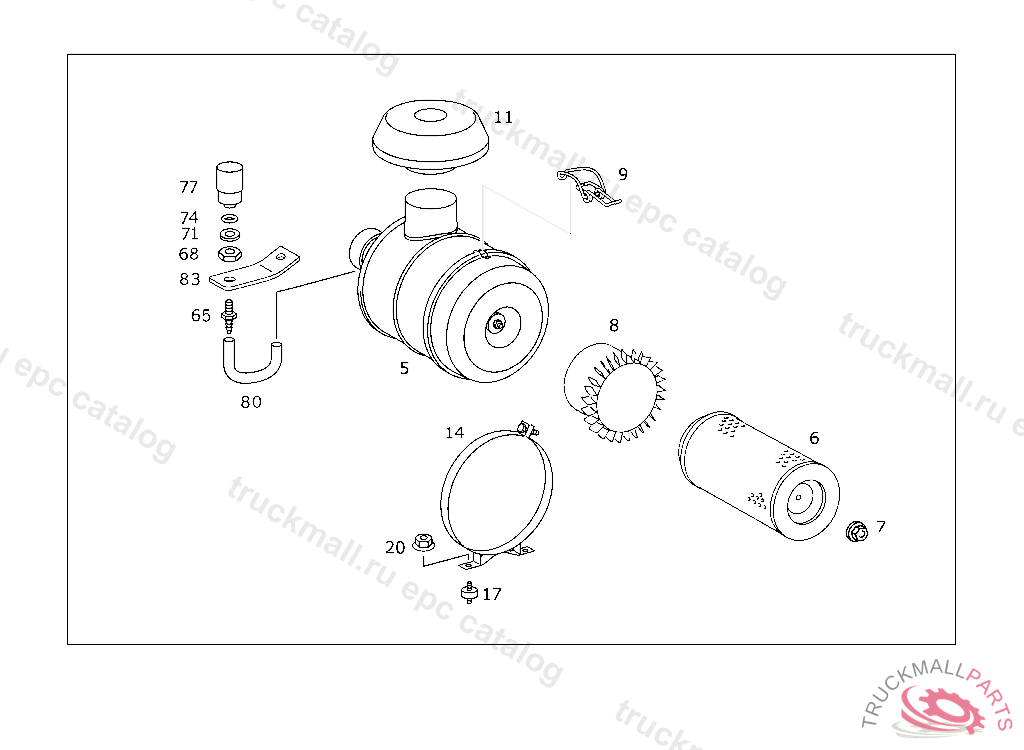

120 AIR INTAKE IL. 1
Mercedes A0005280140 - LU HALTER
O350 TOURISMO E3 O 403-RHD EURO3 613.358
52 SHEET METAL / AIR INTAKE - 120 AIR INTAKE IL. 1
Поз.
Артикул
Описание
5
A6130940102
AIR CLEANERMANN + HUMMEL
6
A0030945004
FILTER ELEMENT
7
A0009901550
NUT
8
A0000943505
SEPARATOR
9
A0000941255
FASTENER
11
A0005280405
COVER AIR INTAKE PIPE
14
A0005280140
BRACKET
17
A0005280185
RUBBER MOUNTINGM10X50X20
20
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
20
N000000003275
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
65
A0029901378
CONNECTOR
68
N000439010212
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
71
A0004291127
THRUST RING14X10X2.6MM
74
A0269970248
O-RING
77
A0000940568
MAINTENANCE INDICATOR ,950198
80
A0005280009
PLASTIC PIPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
83
A6265280040
BRACKET AIR CLEANER TO BRACKET
