Главная
›
Mercedes
›
BUS
›
O350 TOURISMO E3 O 403-RHD EURO3
›
613.358
›
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
›

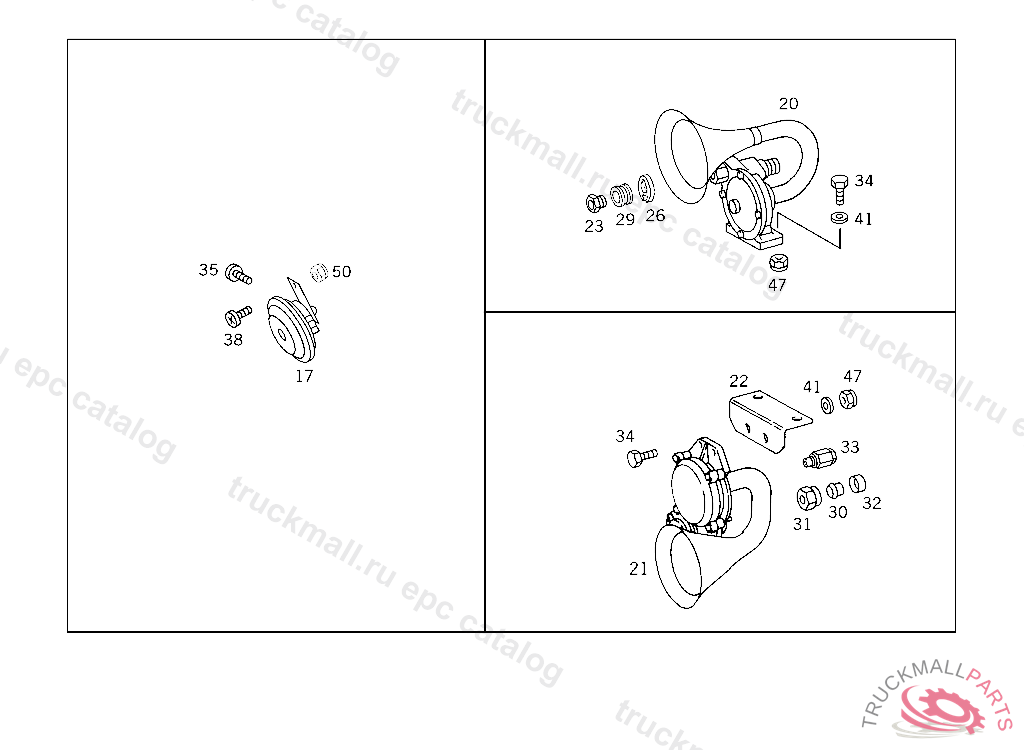

530 STEERING COLUMN MOUNTED SWITCH, RETARDER SWITCH,HORN IL. 2
Mercedes A6135420020 - HORN
O350 TOURISMO E3 O 403-RHD EURO3 613.358
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 530 STEERING COLUMN MOUNTED SWITCH, RETARDER SWITCH,HORN IL. 2
Поз.
Артикул
Описание
17
A0045424620
HORN24 V
17
A6135420020
HORN
17
A0045420020
HORN
20
A0005422821
AIR HORN
20
A0005422921
AIR HORN
21
A6135420121
AIR HORN
22
A6134270041
BRACKET AIR HORN
23
A0009974734
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
23
A0009970834
SCREW. UNION SCREW , Replaced By: A0009973734
26
A0009941248
LOCK , Replaced By: A0009945448
29
A0009940047
SEAL RING , Replaced By: A0009940747
30
N003861008005
GLAND LINE CONNECTION
31
N915017008100
UNION NUT LINE CONNECTION
32
N915062006000
SLEEVE LINE CONNECTION
33
A6134200058
BRAKE LINE COUPLING AIR HORN CONNECTION
34
N304017008021
SCREW PIPE CLAMP
34
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
35
N000084004434
SCREW ELECTRIC CABLE TO HORN
35
A0039907612
SCREWM4X8
38
N000000001157
HEXALOBULAR BOLT. SCREW OIL TANK TO STRAP M 10X30
38
N007985010114
SCREW ROCKER PANEL TO STEP
41
N000125008445
WASHER PUMP TO CONSOLE
47
N913023008003
NUT HORN TO BRACKET M8
50
N910112010001
NUT , Replaced By: N913023010002
