Mercedes N000931012136 - Болт

O350 TOURISMO E3 O 403-RHD EURO3 613.358

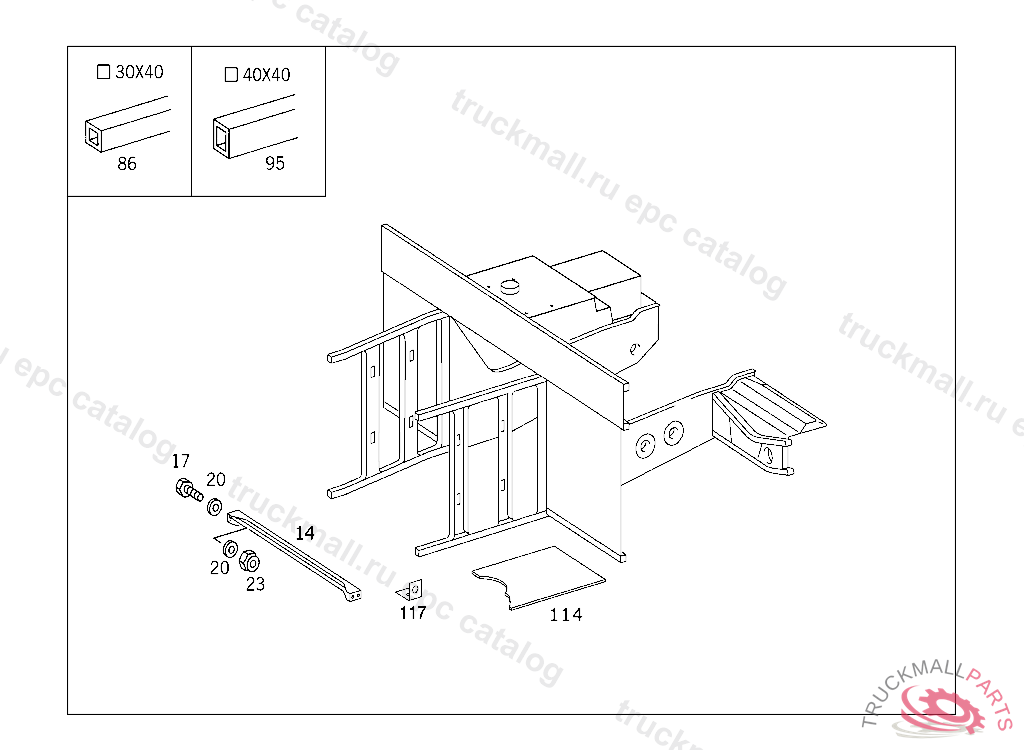

61 SUBSTRUCTURE - 210 SUBSTRUCTURE FRAMEWORK,REAR IL. 1

Поз.
Артикул
Описание
14
A6136105414
CROSS MEMBER BEHIND REAR AXLE,CENTRAL
17
N000931012136
SCREW COVER TO TRANSMISSION CASE M 12X85
20
N000125013008
WASHER
23
N913001012002
NUT CROSS MEMBER TO SUBSTRUCTURE
86
HXB3736320720
SIDE PANEL GIRDER , TO BE ADAPTED DURING ASSEMBLY XB373 632 07 20 RECTANGULAR TUBE 40 X 30 X 2,0 X 1115 MM
95
A3016128417
TUBE , TO BE ADAPTED DURING ASSEMBLY A 301 612 84 17 RECTANGULAR TUBE 40 X 40 X 1,5 X 2440 MM
95
HXB3736126118
TUBE BEHIND REAR AXLE, TO BE ADAPTED DURING ASSEMBLY XB373 612 61 18 RECTANGULAR TUBE 40 X 40 X 2,0 X 2386 MM
114
A3566020038
COVERING BEHIND REAR AXLE,RIGHT
114
A3566020138
COVERING BEHIND REAR AXLE,LEFT
117
A6136101700
BRACKET
