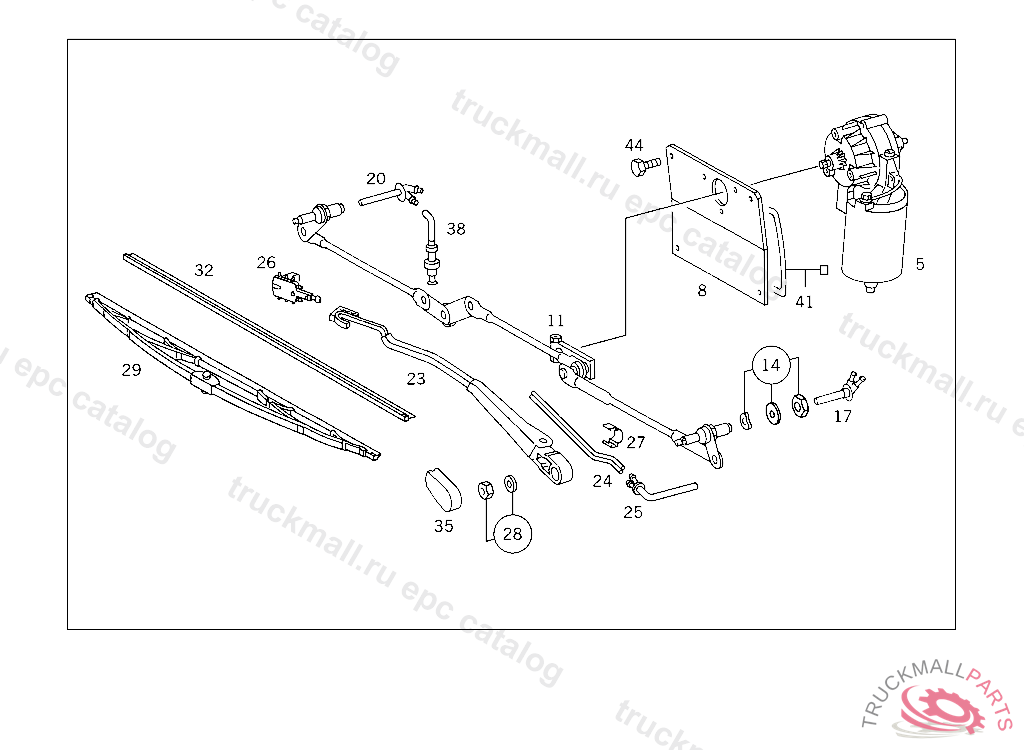

Mercedes A3568200041 - Система тяг и рычаго

O350 TOURISMO E3 O 403-SHD EURO3 613.388

82 ELECTRICAL SYSTEM - 630 WINDSHIELD WIPER

Поз.
Артикул
Описание
5
A3568201042
ELECTRIC MOTOR. WIPER MOTOR
8
A3568240114
BRACKET WIPER MOTOR
11
A6718200041
LINKAGE PANE WASHER
11
A3568200041
LINKAGE PANE WASHER, Replaced By: A6718200041
14
A3568200546
BEARING PARTS KIT,WIPER BEARING
17
A3568600264
PIPE SOCKET LEFT
20
A3568600364
PIPE SOCKET RIGHT
23
A0018202344
WIPER ARM RIGHT
23
A0018202244
WIPER ARM LEFT
24
A0008692994
HOSE , TO BE ADAPTED DURING ASSEMBLY
25
A0008240269
PIPE SOCKET
26
A0008695047
NOZZLE
27
A0079889678
CLIP
28
A3568200646
BEARING PARTS KIT
29
A0018201345
WIPER BLADE
29
A0008209045
WIPER BLADE
32
A0008245427
WIPER RUBBER
35
A0008244049
CAP WIPER ARM
38
A3568600092
HOSE BETWEEN WATER RESERVOIR & PIPE SOCKET
41
A0089870951
RUBBER SEAL
41
HXB3739870123
PLASTIC SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
44
N000933008108
SCREW INTERMEDIATE BEARING TO BRACKET M 8X20
