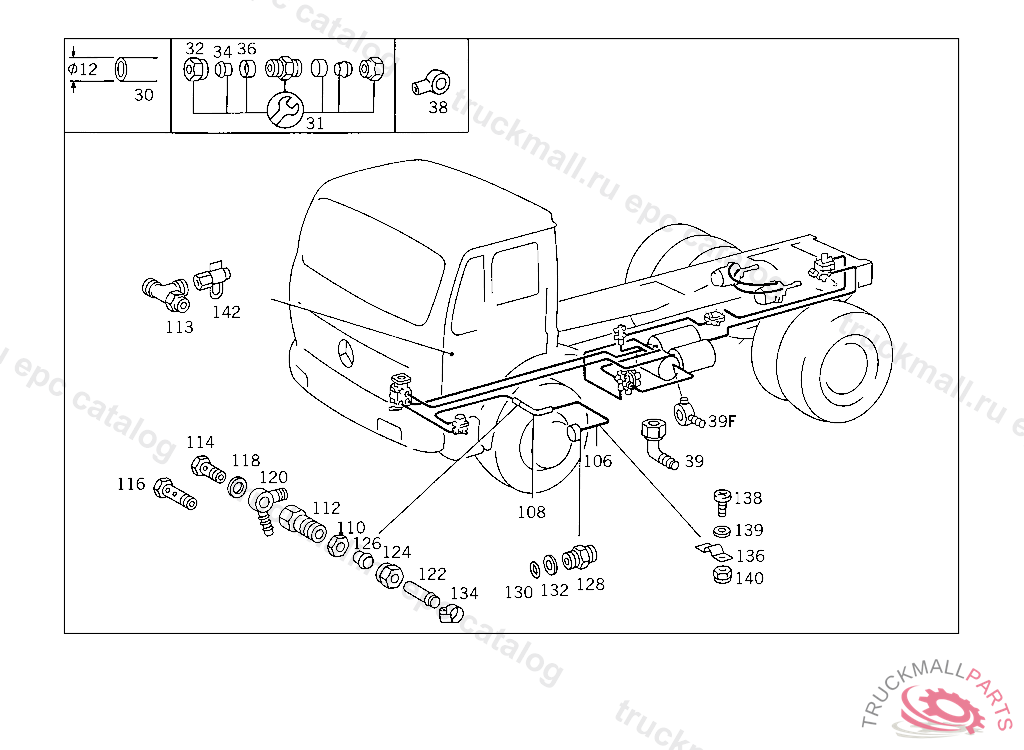

Поз.
Артикул
Описание
30
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
30
HOSE , Replaced By: A0009872827
31
FITTING , Replaced By: A0029906171
31
FITTING (PARTS KIT),LINE RUPTURE
32
UNION NUT LINE CONNECTION, Replaced By: N000000006239
34
GLAND , Replaced By: A0019901967
34
SEAL CONE LINE CONNECTION
36
SLEEVE LINE CONNECTION
38
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
39
ELBOW FITTING AIR RESERVOIR,CONNECTION: "13", PLUG CONNECTION
106
LINE , Replaced By: A6194290801
106
LINE , Replaced By: A6194290801
106
LINE , Replaced By: A6254293501
106
LINE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER
108
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
110
NUT BRACKET TO SIDE MEMBER
112
ADAPTER FITTING , Replaced By: A0004296634
112
ADAPTER FITTING , Replaced By: A0004296934
112
ADAPTER FITTING PASSAGE OF LINE THRU SIDE MEMBER,5 395033
113
T-FITTING LEFT AND RIGHT BRAKE HOSES
114
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
116
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
118
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
120
BANJO UNION BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
122
FITTING DIAPHRAGM CYLINDER,CONNECTION:
124
UNION NUT LINE CONNECTION, Replaced By: N000000006239
126
GLAND , Replaced By: A0019901967
126
SEAL CONE LINE CONNECTION
128
FITTING DELIVERY LINE TO PUMP
130
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
132
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
134
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
134
CLAMP HOSE TO FITTING AND TO OIL TANK
136
CLAMP 3/2-WAY SOLENOID VALVE
138
SCREW CLAMP TO BRACKET
138
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
139
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
140
NUT PUMP TO BRACKET
140
NUT , Replaced By: N913004006001
142
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
142
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
142
TEST CONNECTION
142
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
REPAIR KIT BRAKE POWER REGULATOR TO 002 431 05 12,KNORR
999
REPAIR KIT , Replaced By: A0004300207
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
REPAIR KIT PRESSURE REGULATOR BOSCH,241
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
CONNECTOR REPAIR SIZE
999
LOCK ELECTRIC CABLE THRU CAB FLOOR
999
SCREW. UNION SCREW LINE CONNECTION
999
SEAL RING
999
BANJO UNION FROM BULKHEAD FITTING TO PRESSURE REGULATOR
999
FITTING AIR RESERVOIR,CONNECTION: "13"
999
FITTING , Replaced By: N915059004001
999
LOOM TIE LINE MOUNTING 280 MM
999
ELBOW FITTING ,5 433281
999
STRAP AIR RESERVOIR TO BRACKET
999
RESERVOIR BRAKE CIRCUIT I
999
BRACKET AIR RESERVOIR TO FRAME
999
BRACKET AT CROSS MEMBER
999
CLAMP BREATHER LINE TO FRONT AXLE, NOT USED
999
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
999
SCREW , Replaced By: N304017006016
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N308676012012
999
BULKHEAD FITTING FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1", USED WITH AIR BRAKE,FROM IDENT NO. A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
BULKHEAD FITTING THROUGH SIDE MEMBER
999
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
WASHER , Replaced By: N009021005205
999
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
999
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
SCREW PUMP TO BRACKET
999
SCREW PIPE CLAMP
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
NUT STRAP TO BRACKET
999
NUT SUPPORT TO SIDE MEMBER
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
999
NUT END PIECE TO EXHAUST PIPE
999
NUT , Replaced By: N913004006001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
999
UNION NUT LINE CONNECTION
999
SEAL RING , Replaced By: N007603012121
