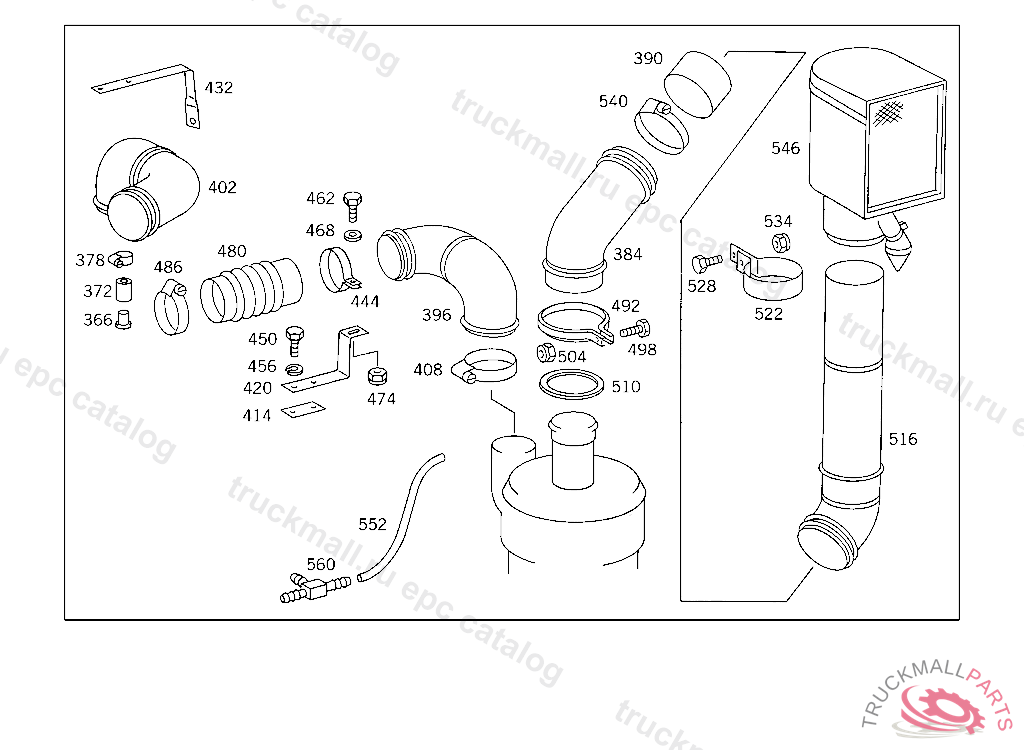

Поз.
Артикул
Описание
366
COVER
372
HOSE AIR COMPRESSOR CONNECTION 240 MM, ORDER BY THE METER
378
CLAMP PRESSURE REGULATOR
384
PIPE ELBOW AIR CLEANER
390
HOSE INTAKE PIPE TO AIR CLEANER
396
PIPE ELBOW LEFT
402
PIPE ELBOW RIGHT
408
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
408
CLAMP , Replaced By: N000000000678
408
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
414
SHIM CLAMP TO PIPE ELBOW
420
BRACKET CLAMP TO PIPE ELBOW
420
BRACKET , Replaced By: A6255283140, +001A0019874340
432
BRACKET CLAMP TO PIPE ELBOW,RIGHT
444
CLAMP EXHAUST PIPE
450
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
450
SCREW , Replaced By: N304017008027
456
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
462
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
462
SCREW PIPE CLAMP
462
SCREW , Replaced By: N308676012012
462
SCREW , Replaced By: N304017008021
468
WASHER , Replaced By: N000125008443
468
WASHER EXHAUST MUFFLER TO STRAP
474
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
474
NUT , Replaced By: N913004008001
474
NUT SUPPORT TO SIDE MEMBER
480
HOSE , Replaced By: A0020944082
480
HOSE FROM AIR INTAKE PIPE TO ENGINE
486
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
486
CLAMP , Replaced By: A0059971490
486
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
492
CLAMP INTAKE PIPE TO AIR CLEANER
498
SCREW , Replaced By: N304017008040
498
SCREW BRACKET TO SIDE MEMBER
504
NUT , Replaced By: N913004008001
504
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
510
SEAL RING PIPE ELBOW TO AIR CLEANER
516
AIR INTAKE PIPE PIPE ELBOW TO AIR CLEANER
522
CLAMP AIR INTAKE PIPE TO BRACKET
528
SCREW BRACKET TO SIDE MEMBER
528
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
528
SCREW , Replaced By: N304017010002
534
NUT , Replaced By: N910113010000
534
NUT STRAP TO BRACKET
540
CLAMP , Replaced By: N000000000678
540
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
540
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
546
AIR CLEANER CYCLONE
552
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
560
DISTRIBUTOR HOSE WIDTH, 6 MM
999
BRACKET CLAMP TO PIPE ELBOW,RIGHT
999
BRACKET CLAMP TO PIPE ELBOW,LEFT
