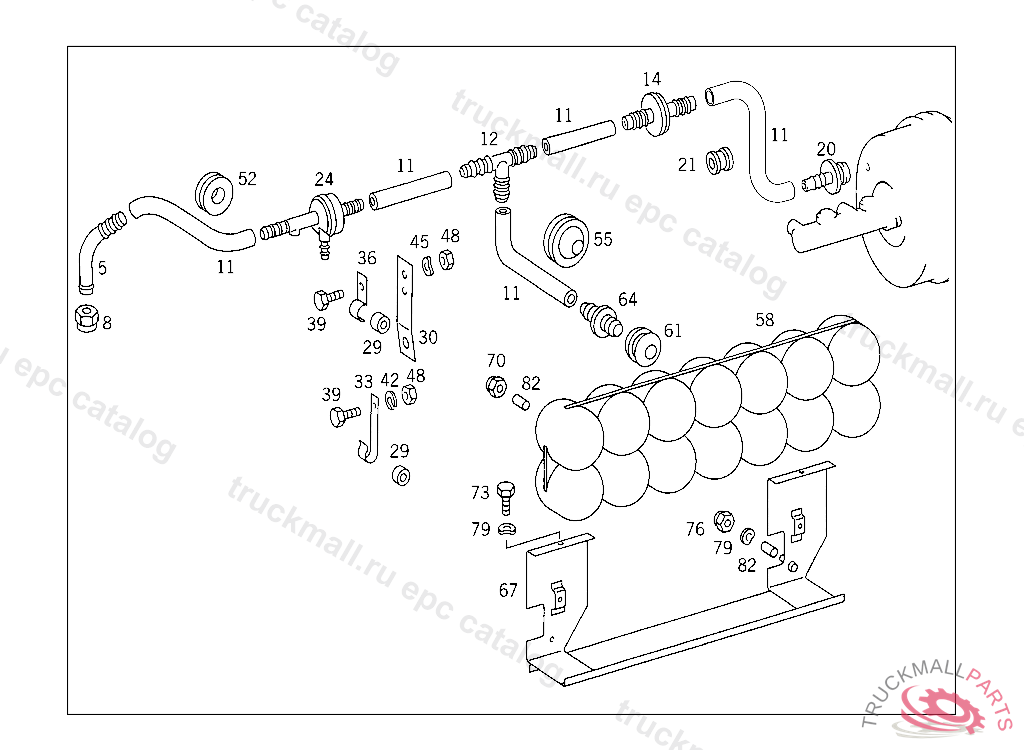

Поз.
Артикул
Описание
5
LINE VACUUM LINE, UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
5
LINE ,649391 P 000001689591
8
NUT
11
PLASTIC PIPE. HOSE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER 440 MM
12
DISTRIBUTOR VACUUM LINE
12
T-FITTING
14
VALVE , Replaced By: A0004316107
14
VALVE (CHECK VALVE), Replaced By: A0004316407
14
VALVE BRAKE BOOSTER ASSEMBLY
14
VALVE (CHECK VALVE)
14
VALVE (CHECK VALVE)
20
CONNECTOR BRAKE BOOSTER ASSEMBLY
21
GROMMET CLUTCH LINE TO BRACKET
24
VALVE (CHECK VALVE)
29
DAMPING RING
30
BRACKET VACUUM LINE TO ENGINE, 052673 903527
36
CLAMP FLEXIBLE SHAFT
36
CLAMP
39
SCREW COVER PLATE TO COVER PLATE M 6 X 12
45
SPRING WASHER LICENSE PLATE TO BRACKET
48
NUT BALL PIVOT TO LEVER
52
GROMMET
52
GROMMET FOR PASSAGE OF LINE
58
ACCUMULATOR ,052674
61
GROMMET LINE MOUNTING 19/13 MM
64
CONNECTOR BRAKE BOOSTER ASSEMBLY
67
BRACKET , 052674 903528
70
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
70
NUT , Replaced By: N913004008001
70
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
73
SCREW , Replaced By: N000933006311
73
SCREW LOCK SPRING TO CROSS MEMBER
73
SCREW , 052674 903528
76
NUT BALL PIVOT TO LEVER
79
SPRING WASHER LICENSE PLATE TO BRACKET
82
SPACER TUBE POWER CYLINDER TO LEVER
82
TUBE , Replaced By: A3019910140
82
SPACER TUBE , Replaced By: A3819911740
82
SPACER TUBE TWO-WAY VALVE TO BRACKET
