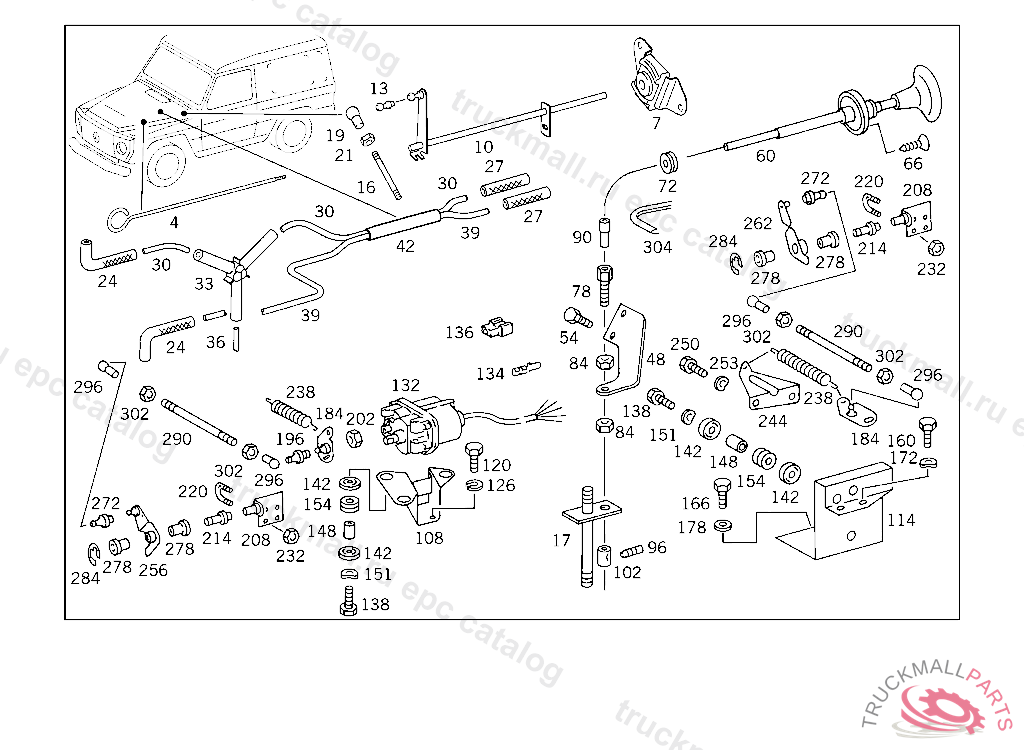

Поз.
Артикул
Описание
4
ROD
7
BRACKET MOUNTING
10
SHAFT (CONTROL SHAFT)
10
SHAFT (CONTROL SHAFT)
13
BALL PIVOT , UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
16
ROD FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE
16
ROD FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE
17
ROD LEVER TO LEVER
19
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
19
BALL SOCKET , Replaced By: A0009918922
21
NUT TACHOGRAPH TO BRACKET
24
HOSE
24
HOSE , Replaced By: A1170780281
27
HOSE , Replaced By: A1179970982
27
HOSE MASTER SWITCH AND VACUUM SWITCH 40 MM, 023 164780 033 066774 123 158077 130 172061
30
PIPE LINE FROM STEERING LOCK TO BRAKE BOOSTER 4 X 1 MM, ORDER BY THE METER
33
BRANCH-OFF FITTING
33
DISTRIBUTOR , Replaced By: A1170780145
36
LINE FROM 3/2-WAY VALVE TO DISTRIBUTOR 4 MM, ORDER BY THE METER
39
HOSE , ORDER BY THE METER
42
INSULATING HOSE ELECTRONICS AT SUPPORT, ORDER BY THE METER
48
BRACKET MANUAL CONTROL
54
SCREW COVER PLATE TO BRACKET
54
SCREW LINE MOUNTING M 6X15
60
MANUAL CONTROL
60
MANUAL CONTROL , Replaced By: A4603000126
66
SHEET METAL SCREW , Replaced By: N000000000447
66
SHEET METAL SCREW SLOTTED GATE TO FLOOR SHIFT, 124.0,124.1 : F 063052 124.2,124.3 : F 079076
66
TAPPING SCREW BRACKET MOUNTING
72
GROMMET CLOCK
72
GROMMET , Replaced By: A3179970281
78
SCREW WIRE CABLE TO BRACKET
84
NUT
84
NUT , Replaced By: N304035008001
90
SLEEVE IDLING ADJUSTMENT, 10/50 FROM IDENT NO. 240085-499999-P 000001 ALSO INSTALLED ON 230112-230115,230202,230331-230335,234605,234726,235450,238246,238997,239955. 20/60 FROM IDENT NO. 240114-499999 ALSO INSTALLED ON 237249,239122 FROM IDENT NO. 556500 ALSO INSTALLED ON 548162,551144,551145,551405,551606,552633 P 000001 UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
96
THREADED PIN ROD TO ADJUSTING LINK
102
NIPPLE ROD TO ADJUSTING LINK
108
BRACKET ENGINE
114
BRACKET ENGINE
120
SCREW COVER PLATE TO BRACKET
126
SPRING WASHER LICENSE PLATE TO BRACKET
132
MOTOR FINAL CONTROL ELEMENT
132
MOTOR , Replaced By: A4605450165
132
MOTOR , Replaced By: A0005450765
134
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
136
PLUG HOUSING 6-POLE
138
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
142
WASHER ACTUATOR TO BRACKET
148
SPACER TUBE OIL LINE TO BRACKET,K 093236
151
SPRING WASHER LICENSE PLATE TO BRACKET
154
GROMMET BRACKET TO ENGINE
160
SCREW CLAMP TO BRACKET AND TO PIPE
166
SCREW LICENSE PLATE TO BRACKET
166
SCREW , Replaced By: N304017006020
172
SPRING WASHER , Replaced By: N000137008212
172
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
178
WASHER COMPRESSED AIR LINE TO BRACKET
178
WASHER , Replaced By: N009021006208
184
LEVER (CONTROL LEVER)
184
LEVER (CONTROL LEVER)
196
BALL PIVOT
202
NUT
208
LEVER (CONTROL LEVER)
214
PIN
220
BRACKET CONTROL LEVER TO CONTROL SHAFT
232
NUT BALL PIVOT TO LEVER
238
SPRING (RELEASE SPRING)
238
SPRING (RELEASE SPRING)
244
BRACKET FOR SPRING
250
SCREW COVER PLATE TO BRACKET
253
SPRING WASHER LICENSE PLATE TO BRACKET
256
LEVER (CONTROL LEVER)
262
LEVER (CONTROL LEVER)
272
BALL PIVOT
278
BUSHING
284
LOCK PLATE RELEASE LEVER TO SHAFT
290
PULL ROD FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
290
PULL ROD
296
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
296
BALL SOCKET , Replaced By: A0009918922
302
NUT TACHOGRAPH TO BRACKET
304
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
999
SPACER RING CONTROL SHAFT TO ENGINE
999
SHIM CONTROL LEVER TO CONTROL SHAFT
999
NUT
999
BUTTON. KNOB
999
BUSHING IDLING ADJUSTMENT WIRE CABLE
999
BRACKET
999
BRACKET
999
LOCK LEVER TO ADJUSTER LINK
999
SHAFT
