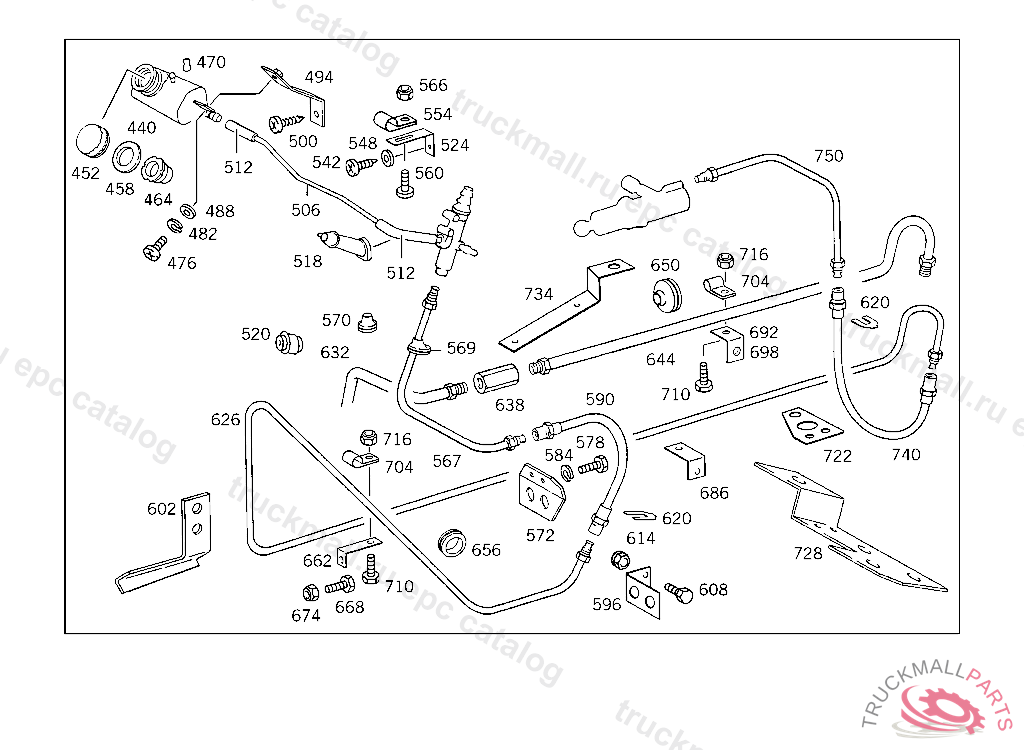

Поз.
Артикул
Описание
440
RESERVOIR RESERVOIR
440
RESERVOIR RESERVOIR, 415 5 014669 416 5 000516 417 4 972024
452
LOCKING CAP
458
SEAL RING
458
SEAL RING , Replaced By: A0009972940
464
STRAINER , Replaced By: A0004314334
464
STRAINER
470
CAP RESERVOIR DE-AERATION
476
SCREW CONTROL UNIT
482
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
488
WASHER , Replaced By: N009021006208
488
WASHER COMPRESSED AIR LINE TO BRACKET
494
BRACKET RESERVOIR
500
SHEET METAL SCREW BRACKET TO WINDOW LEVEL
506
PIPE WITH BEAD, MASTER CYLINDER COUPLING TO EXPANSION RESERVOIR 10X700 MM
512
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
518
GROMMET CLUTCH LINE THRU CAB WINDOW SILL
520
GROMMET CLUTCH LINE THRU CAB WINDOW SILL,4 797365
524
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
542
SHEET METAL SCREW BRACKET TO WINDOW LEVEL
548
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
554
CLAMP LINE MOUNTING
560
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
560
SCREW CLAMP TO BRACKET
566
NUT , Replaced By: N913004006001
566
NUT PUMP TO BRACKET
567
LINE FROM CLUTCH MASTER CYLINDER TO SHUTTLE VALVE 700 MM
567
LINE , Replaced By: A3812903214
567
LINE , Replaced By: A3812901714
567
LINE , Replaced By: A3812901814
567
LINE FROM VALVE TO CONNECTION FITTING,K 172343
569
GROMMET , Replaced By: A3149970581
569
GROMMET BATTERY CASE
570
GROMMET TEMPERATURE GAUGE SENDER UNIT
572
BRACKET HYDRAULIC LINE TO CAB FLOOR
578
SCREW PUMP TO BRACKET
578
SCREW , Replaced By: N304017006016
584
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
590
HOSE FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET 555 MM
602
BRACKET HYDRAULIC LINE TO TRANSMISSION
602
BRACKET AT STEERING GEAR
620
BRACKET. LOCK , Replaced By: A6525040038
620
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
632
LINE , Replaced By: A3812902114
632
LINE , Replaced By: A3812902114
632
LINE FROM VALVE TO CONNECTION FITTING 1500 MM, TO BE ADAPTED DURING ASSEMBLY
638
INTERMEDIATE PIECE CLUTCH HOSE,K 172342
644
LINE FROM SHUTTLE VALVE TO CLUTCH REMOTE CONTROL MASTER CYLINDER 1100 MM, TO BE ADAPTED DURING ASSEMBLY
644
LINE , Replaced By: A3812902014
644
LINE , Replaced By: A3812902014
650
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
656
GROMMET OIL DELIVERY LINE THRU FENDER SUPPORT
662
BRACKET BRACKET TO ENGINE,REAR
668
SCREW PUMP TO BRACKET
668
SCREW , Replaced By: N304017006016
674
NUT , Replaced By: N913004006001
674
NUT PUMP TO BRACKET
692
ANGLE LINE MOUNTING
698
BRACKET HEATING PIPE
698
BRACKET CABLE HARNESS MOUNTING
698
BRACKET , Replaced By: A3873020140
698
BRACKET BALL COCK,5 512267
704
CLAMP , Replaced By: N916016008200
704
CLAMP , Replaced By: A3604300143
704
CLAMP ,K 147121, Replaced By: N000000000319
710
SCREW PUMP TO BRACKET
710
SCREW , Replaced By: N304017006016
716
NUT , Replaced By: N913004006001
716
NUT PUMP TO BRACKET
722
BRACKET HOSE TO ENGINE SUPPORT
722
BRACKET AT ENGINE MOUNTING CONSOLE,5 335775
728
BRACKET AT ENGINE MOUNT
734
BRACKET HYDRAULIC LINE TO TRANSMISSION
740
HOSE FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET 350 MM
740
HOSE FROM BRACKET AT SIDE MEMBER TO CLUTCH SLAVE CYLINDER,5 385053
750
LINE FROM CLUTCH MASTER CYLINDER TO SHUTTLE VALVE 400 MM, TO BE ADAPTED DURING ASSEMBLY
750
LINE , Replaced By: A3812901514
750
LINE , Replaced By: A3812901514
999
LOOM TIE LINE MOUNTING 280 MM
999
BRACKET COMPRESSED AIR LINES, Replaced By: A6205240340
999
BRACKET , Replaced By: A3464296040
999
BRACKET OIL LINE MOUNTING
999
ANGLE , Replaced By: A3464295540
999
BRACKET FUEL LINES TO TRANSMISSION
999
WASHER HYDRAULIC HOSE TO BRACKET
999
SCREW , Replaced By: N304017008034
999
SCREW SUPPORT TO CROSS MEMBER M 10X28
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT STRAP TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
