Поз.
Артикул
Описание

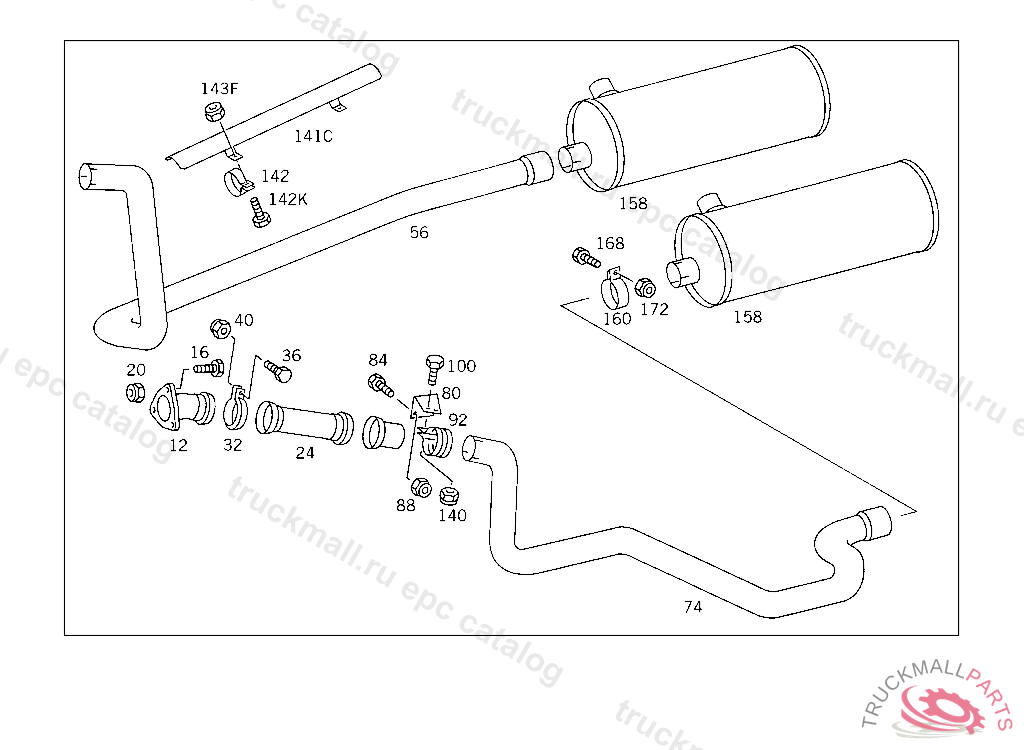

12
FLANGE LEFT
12
FLANGE RIGHT
16
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
16
SCREW EXHAUST PIPE TO EXHAUST MANIFOLD M 12 X 50
20
NUT CONNECTOR TO EXHAUST MANIFOLD
24
FLEXIBLE METAL TUBE CONNECTOR
32
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
36
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
36
SCREW , Replaced By: N304017008028
40
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
40
NUT , Replaced By: N913004008001
80
BRACKET LEFT EXHAUST PIPE
80
BRACKET RIGHT EXHAUST PIPE
84
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
84
SCREW , Replaced By: N308676014020
88
NUT , Replaced By: N910113014001
88
NUT BRACKET TO SIDE MEMBER
92
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
100
SCREW REAR EXHAUST PIPE TO MUFFLER
140
NUT STRAP TO BRACKET
140
NUT , Replaced By: N910113010000
160
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
168
SCREW BRACKET TO SIDE MEMBER
168
SCREW , Replaced By: N304017010002
172
NUT , Replaced By: N910113010000
172
NUT STRAP TO BRACKET
999
NUT , Replaced By: N910113014001
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N913004008001
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
999
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
999
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
999
SCREW BRACKET TO SIDE MEMBER
999
SPHERICAL WASHER STRAP TO BRACKET
999
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
999
SCREW , Replaced By: N304017010002
999
SCREW , Replaced By: N304017008040
999
BRACKET EXHAUST MUFFLER,FRONT
999
BRACKET ,5 761221 TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6524912141
999
BRACKET EXHAUST MUFFLER,RIGHT,5 761221
999
STRAP , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6524900942
999
INSULATING WASHER. INSULATION , Replaced By: A3094900037
