Поз.
Артикул
Описание

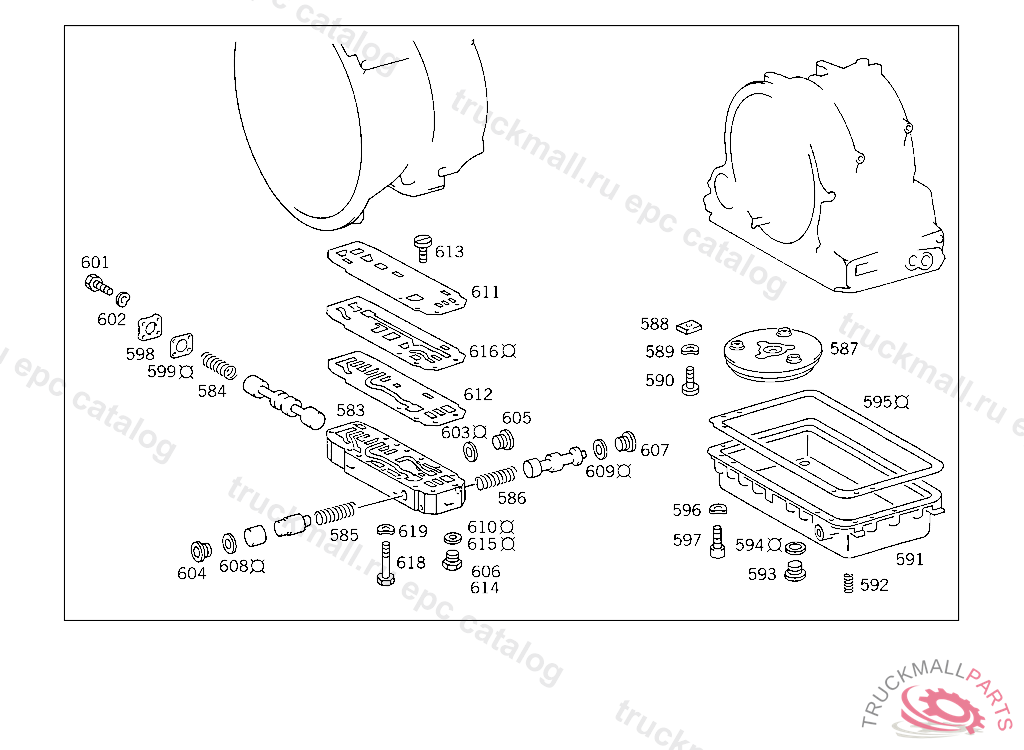

583
VALVE BODY ASSEMBLY RETARDER
584
SPRING RELAY VALVE 1.90X20.80X88.10 MM
585
SPRING MODULATION PRESSURE REGULATOR VALVE 0.70X8.00X30 MM
586
SPRING DOWNSHIFT RELAY VALVE 2-1 0.80X11.30X28 MM
587
FILTER VALVE BODY ASSEMBLY
587
FILTER , Replaced By: A3072700398
588
BRACKET OIL FILTER TO VALVE BODY ASSEMBLY
589
SPRING WASHER LICENSE PLATE TO BRACKET
590
SCREW PROTECTION PLATE TO BRACKET
591
OIL PAN
592
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
593
SCREW PLUG
594
SEAL RING OIL DRAIN 26X34 MM
595
GASKET OIL PAN TO TRANSMISSION
596
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
596
SPRING WASHER , Replaced By: N000137008212
597
SCREW SPRING STOP
598
LOCKING SHEET VALVE BODY ASSEMBLY
599
GASKET VALVE BODY ASSEMBLY
599
GASKET , Replaced By: A3872770380
601
SCREW , Replaced By: N304017008034
601
SCREW BRACKET TO CROSS CONNECTION STRUT
602
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
602
SPRING WASHER , Replaced By: N000137008212
603
SEAL RING RELAY VALVE,CONNECTION: "41"
603
SEAL RINGTO 001 431 72 14
604
SCREW PLUG
605
SCREW PLUG, FILLING HOUSING,BOTTOM
605
SCREW PLUG , Replaced By: N000000000648
606
SCREW PLUG MEASURING CONNECTION
607
SCREW PLUG BELL HOUSING
608
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
608
SEALING RING. SEAL RING DELIVERY LINE TO PUMP
609
SEAL RING VALVE TO VALVE,K 025179
610
SEAL RING SCREW PLUG
611
INTERMEDIATE PLATE VALVE BODY ASSEMBLY TO RETARDER HOUSING
612
GASKET VALVE BODY ASSEMBLY TO RETARDER HOUSING
612
GASKET , Replaced By: A3002770480
613
SCREW STEERING COLUMN PANELLING M 5X12
614
SCREW PLUG MEASURING CONNECTION
615
SEAL RING SCREW PLUG
616
GASKET , Replaced By: A3002770580
616
GASKET VALVE BODY ASSEMBLY TO RETARDER HOUSING
618
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
618
SCREW , Replaced By: N304014008001
618
SCREW PLATE TO VALVE M 6X70
618
SCREW VALVE TO BRACKET
618
SCREW VALVE TO BRACKET
618
SCREW , Replaced By: N304014006005
618
SCREW VALVE TO BRACKET, Replaced By: N304014008002
618
SCREW , Replaced By: N304017008043
618
SCREW VALVE TO BRACKET M 8X55
619
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
619
SPRING WASHER , Replaced By: N000137008212
999
MAGNETTO 000 270 29 89
999
VALVE , Replaced By: A0022601757
999
VALVE REPAIR KIT TO 000 270 29 89
999
SEAL RING , NOT USED
999
SEAL RING , NOT USED
999
BUSHING , NOT USED
999
SPRING RETAINER , NOT USED
999
WASHER , Replaced By: N000988014009
999
SPRING , NOT USED
999
PISTON , NOT USED
999
PLUG SOCKET REPAIR VERSION, NOT FOR DANGER CATEGORY VEHICLES M 30X1
999
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK RINGTO 000 431 16 14
999
NUT BALL PIVOT TO LEVER
999
FITTED WASHER , NOT USED
999
LOCK PLATE
999
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
