Поз.
Артикул
Описание

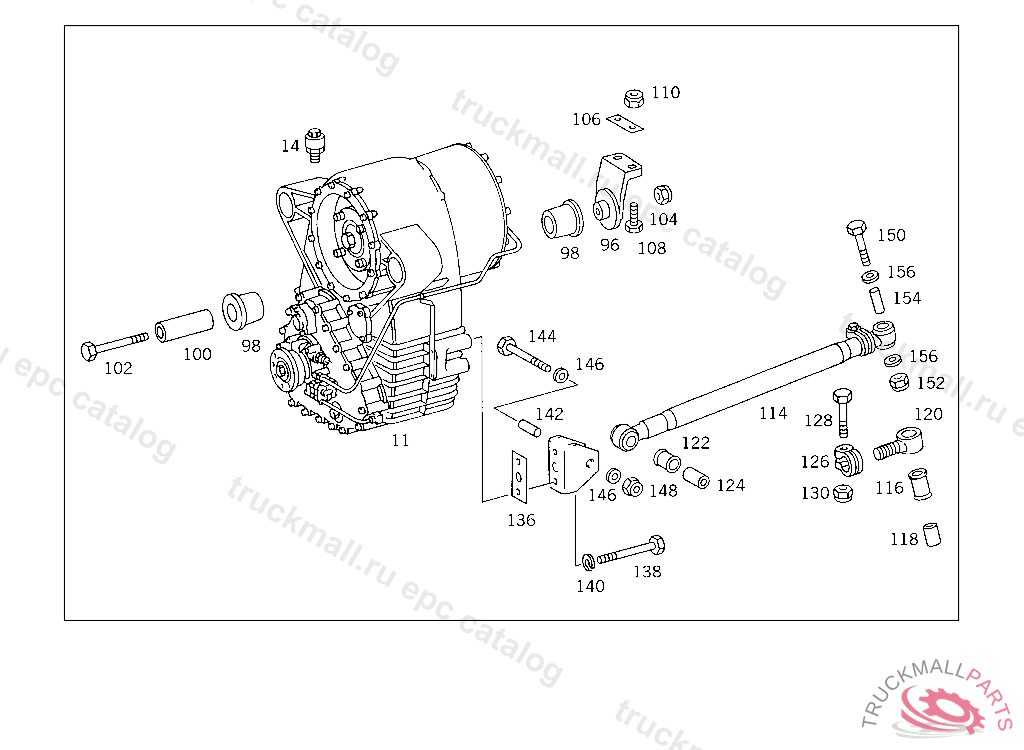

11
TRANSFER CASE FOR BREAK-DOWN,SEE UNIT STANDARD VERSIONMODEL: 750.800, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
11
TRANSFER CASE , Replaced By: A3892801001
14
BREATHER TRANSFER CASE
96
BEARING TRANSFER CASE CONSOLE
96
BEARING TRANSFER CASE CONSOLE
96
BEARING , Replaced By: A6212850403
98
BEARING RUBBER MOUNT
100
SPACER TUBE RUBBER MOUNT
102
SCREW RUBBER MOUNTING TO BEARING BRACKET
102
SCREW , Replaced By: N308765016018
104
NUT , Replaced By: N910113016001
104
NUT CONSOLE TO SUPPORT
106
SHIM BEARING BRACKET TO BRACKET
108
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
108
SCREW , Replaced By: N308676016007
110
NUT , Replaced By: N910113016001
110
NUT CONSOLE TO SUPPORT
114
ROD TRANSFER CASE TO FRAME
114
ROD , Replaced By: A6212850055
114
ROD TRANSFER CASE TO FRAME
116
BUSHING
118
BUSHING
120
JOINT
122
BUSHING
124
BUSHING
126
CLAMP
128
SCREW
130
HEXAGON NUT
130
NUT , Replaced By: N910113010002
136
SHIM ROD TO TRANSFER CASE
136
SHIM ROD TO TRANSFER CASE
138
SCREW ROD TO TRANSFER CASE M 14X75
140
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
142
SPACER TUBE PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
144
HEXAGON HEAD BOLT. SCREW PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
144
SCREW , Replaced By: N308765012003
146
WASHER , Replaced By: N007349013005
146
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
148
NUT SUPPORT TO SIDE MEMBER
150
SCREW APPARATUS SUPPORT TO FRAME
150
HEXAGON HEAD BOLT. SCREW PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
150
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
150
SCREW , Replaced By: N308765012003
150
SCREW , Replaced By: A9429901304
152
NUT , Replaced By: N910113014000
152
NUT STEERING SUPPORT TO FRAME
152
NUT SUPPORT TO SIDE MEMBER
154
SPACER TUBE PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
156
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
156
WASHER , Replaced By: N007349013005
